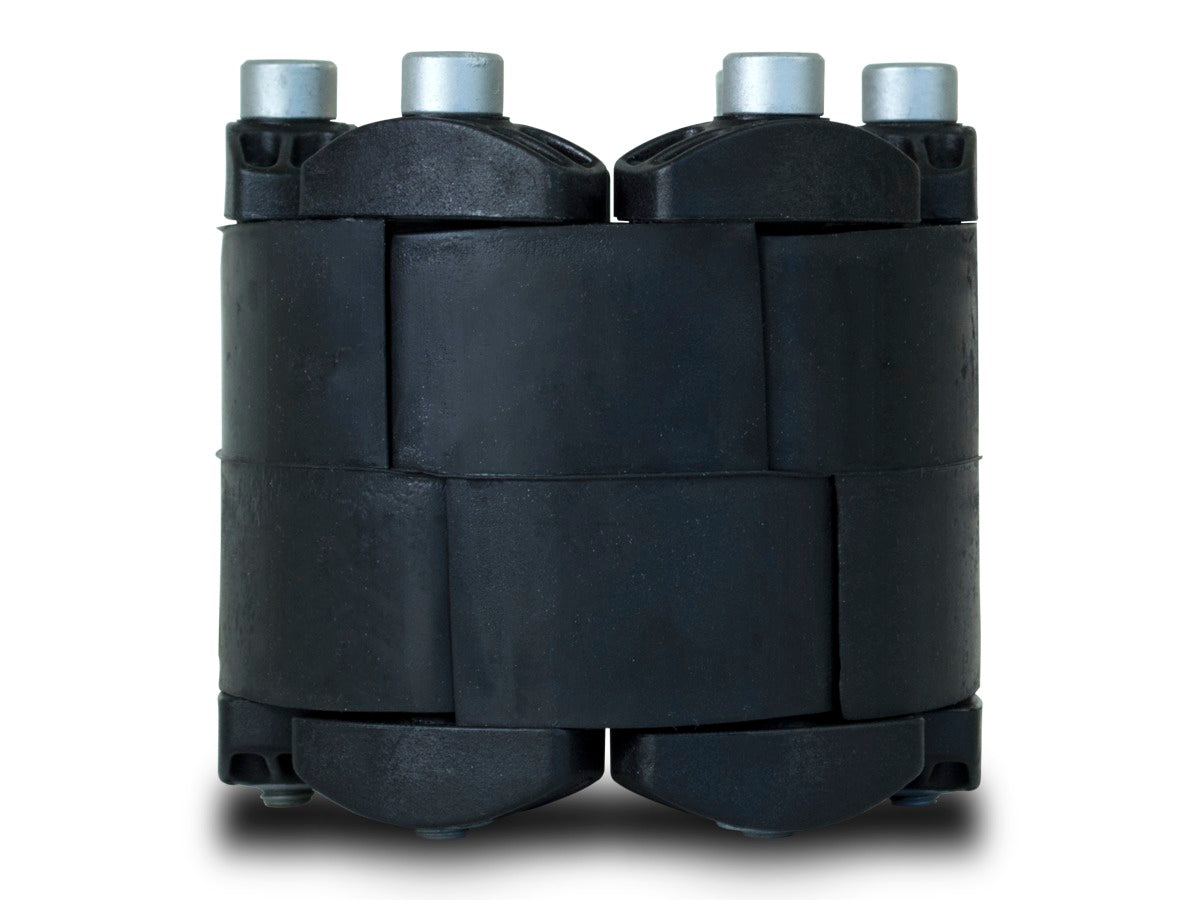

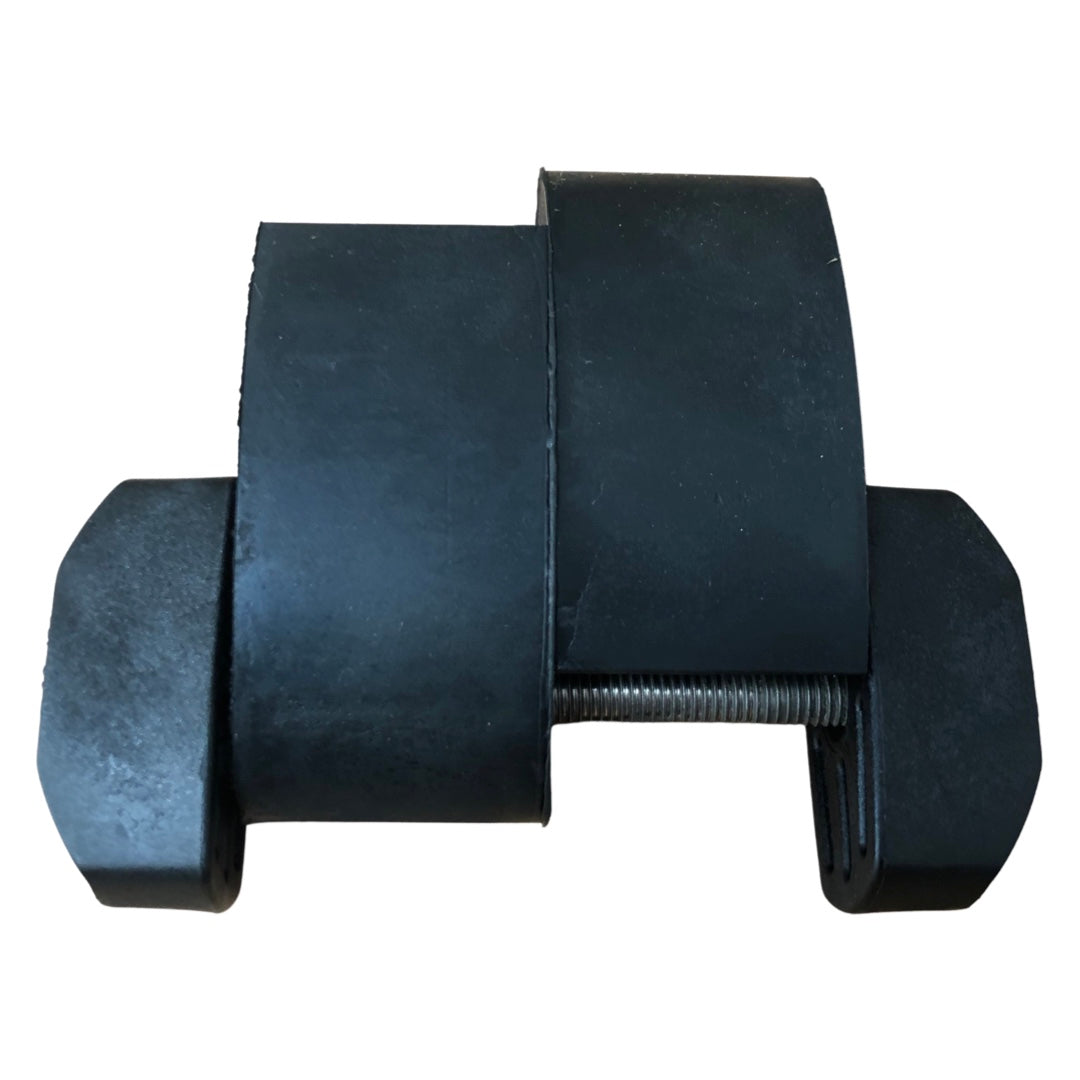

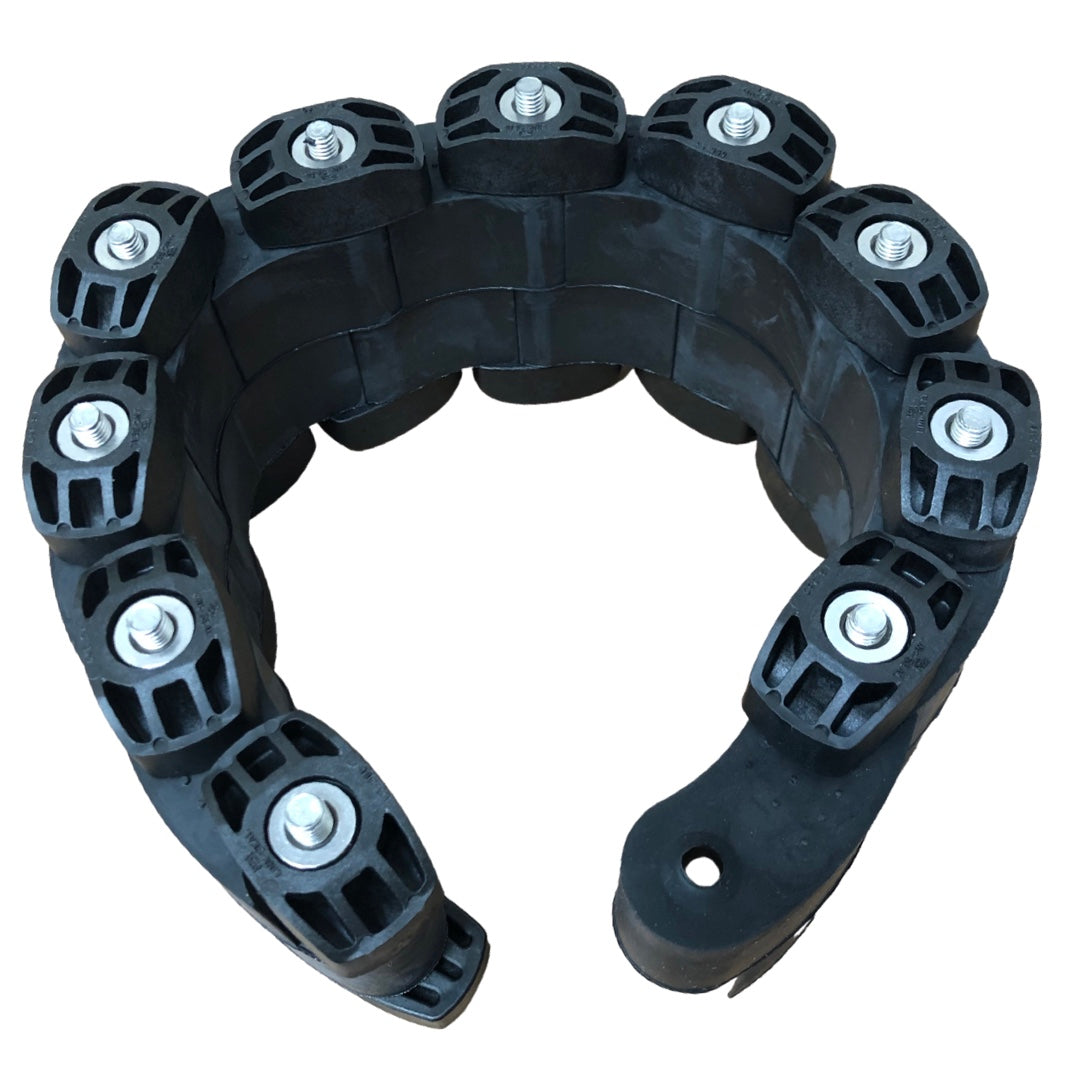

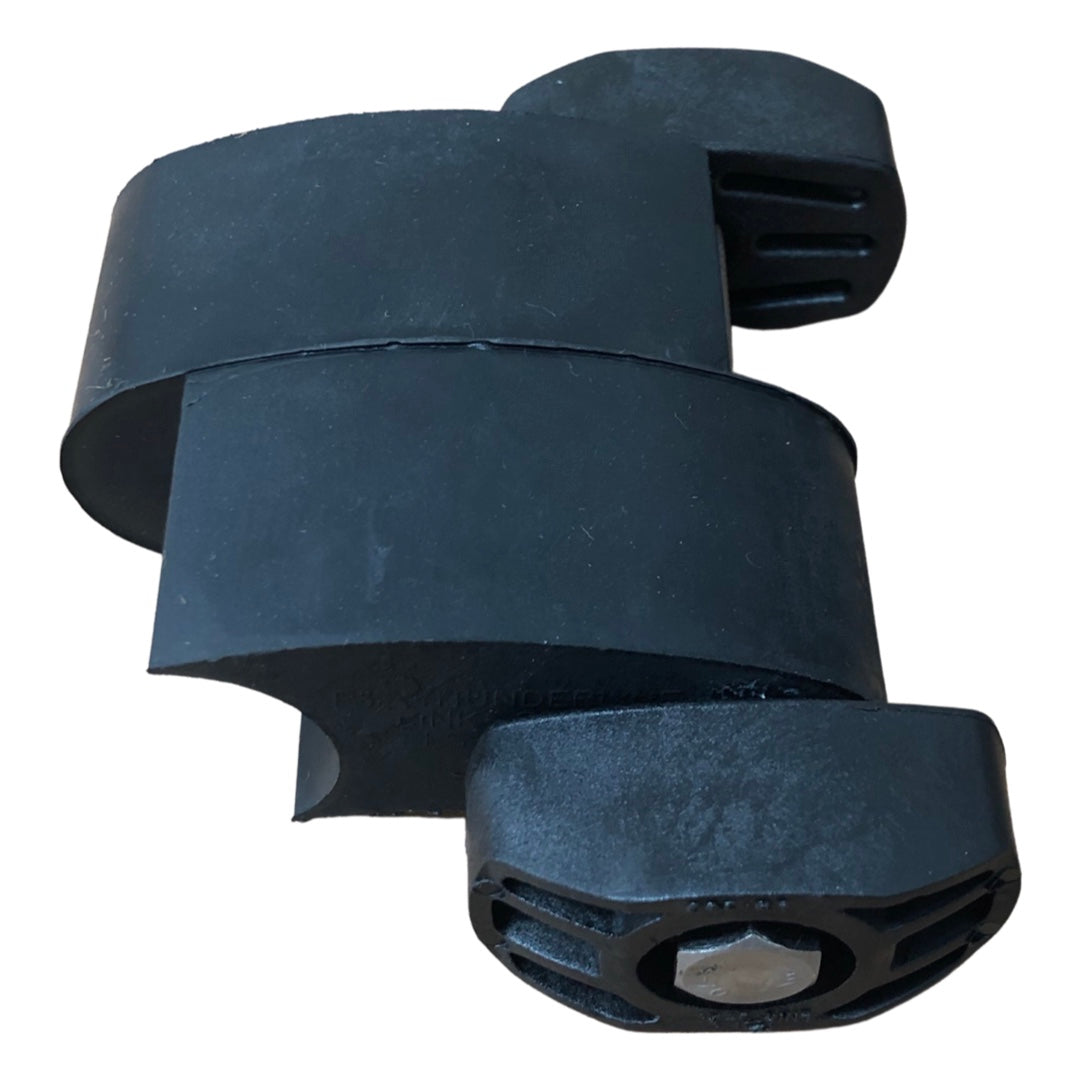

Link-Seal Ls-400-C Modular Pipe Sealing System Model C Size 400

Product Description

The LINK-SEAL LS-400-C is a modular, elastomer sealing system that creates a permanent, hydrostatic seal for pipes or cylindrical objects passing through barriers like concrete walls. It provides durability against fluid corrosion and contamination. The Model C with EPDM and Carbon Steel Hardware ensures durability in damp environments, sealing against moisture, groundwater, and organic chemicals for pipelines and direct burial applications.

• Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
• Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
• Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.

Product Highlights

The Link-Seal provides a positive hydrostatic seal, extends the life of the seal, saves time and money, and protects against corrosion.

Product Information

Standard Information

• Brand: LINK-SEAL
• Manufacturer Part Number: LS-400-C

Technical Specifications

• Brand: LINK-SEAL
• LINK-SEAL Size: 400
• Style/Model: Model C
• Rubber Seal Element: EPDM
• Hardware Material: Zinc Plated Carbon Steel
• Pressure Plate Material: Reinforced Nylon Polymer
• Durometer: 50
• Max Temperature (C): 121
• Max Temperature (F): 250
• Temperature Range (C): -40 C - 121 C
• Temperature Range (F): -40 F - 250 F
• Package Quantity and UOM: 30
• Primary Dimensional Unit of Measure: Imperial
• MPN: LS-400-C
• Manufacturer: Link Seal
• Material: Carbon Steel
• Seal Material: EPDM
• Pressure: resistant to 20psig (40 ft of head)
