Link-Seal LS-360-C modular pipe sealing system model C size 360

Product Description

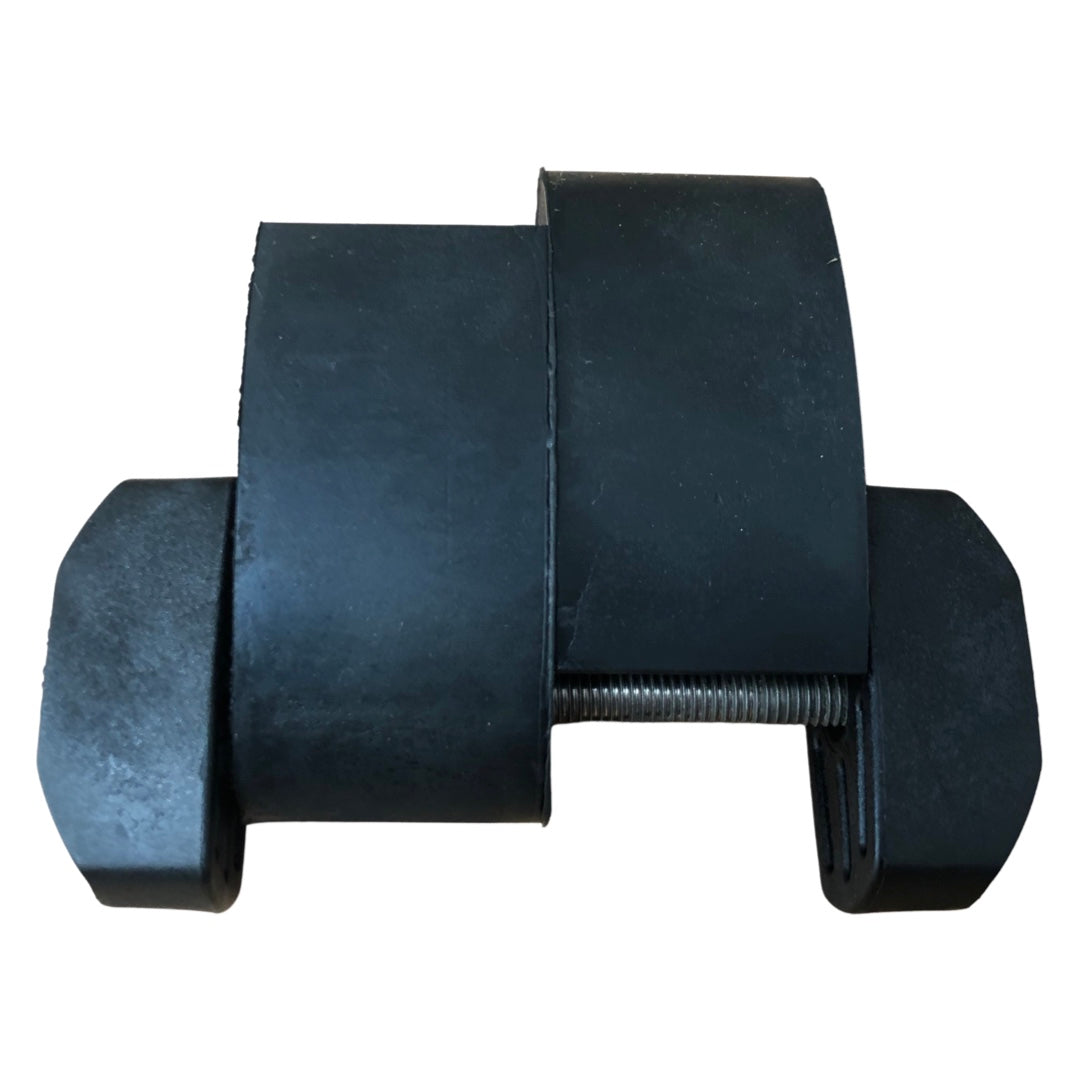

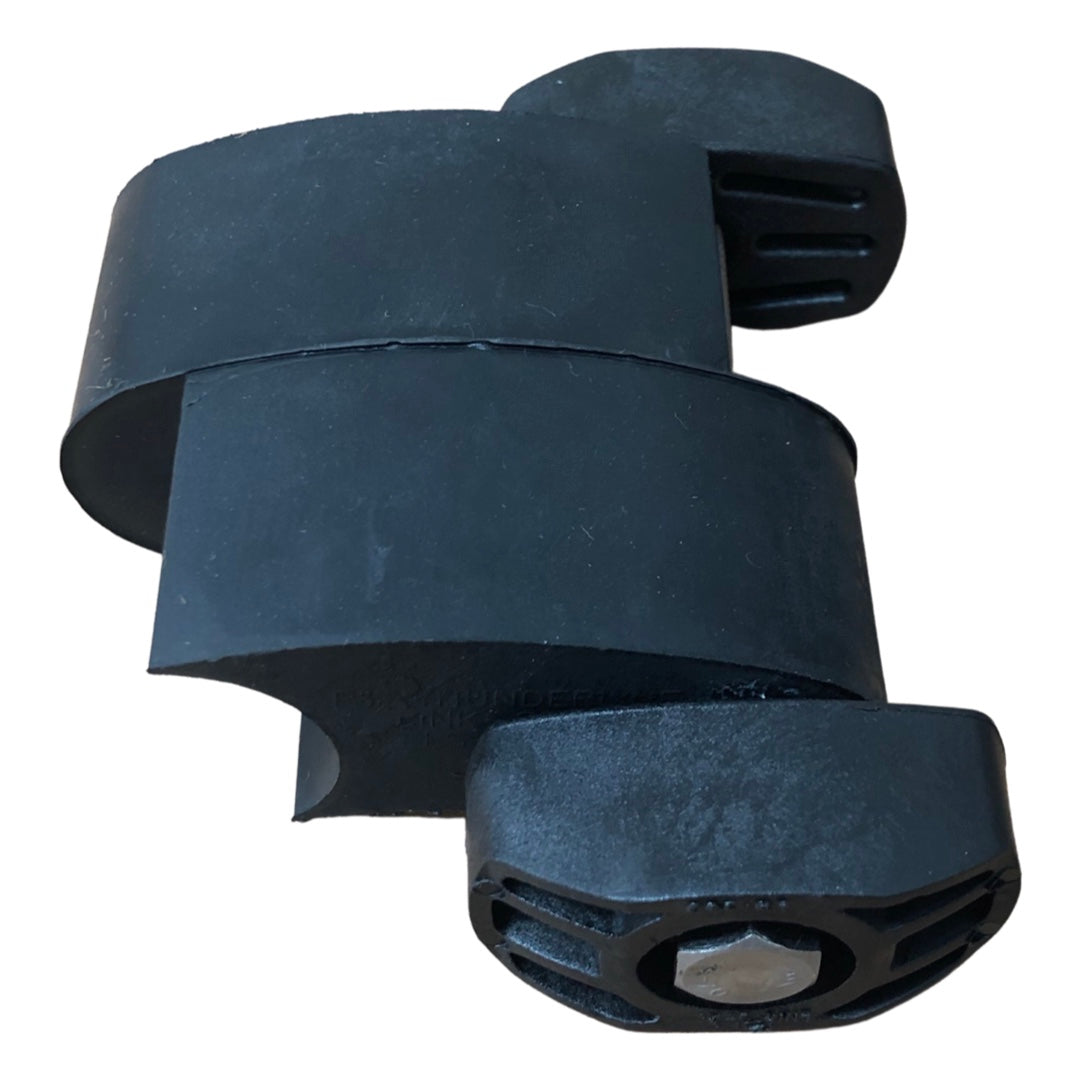

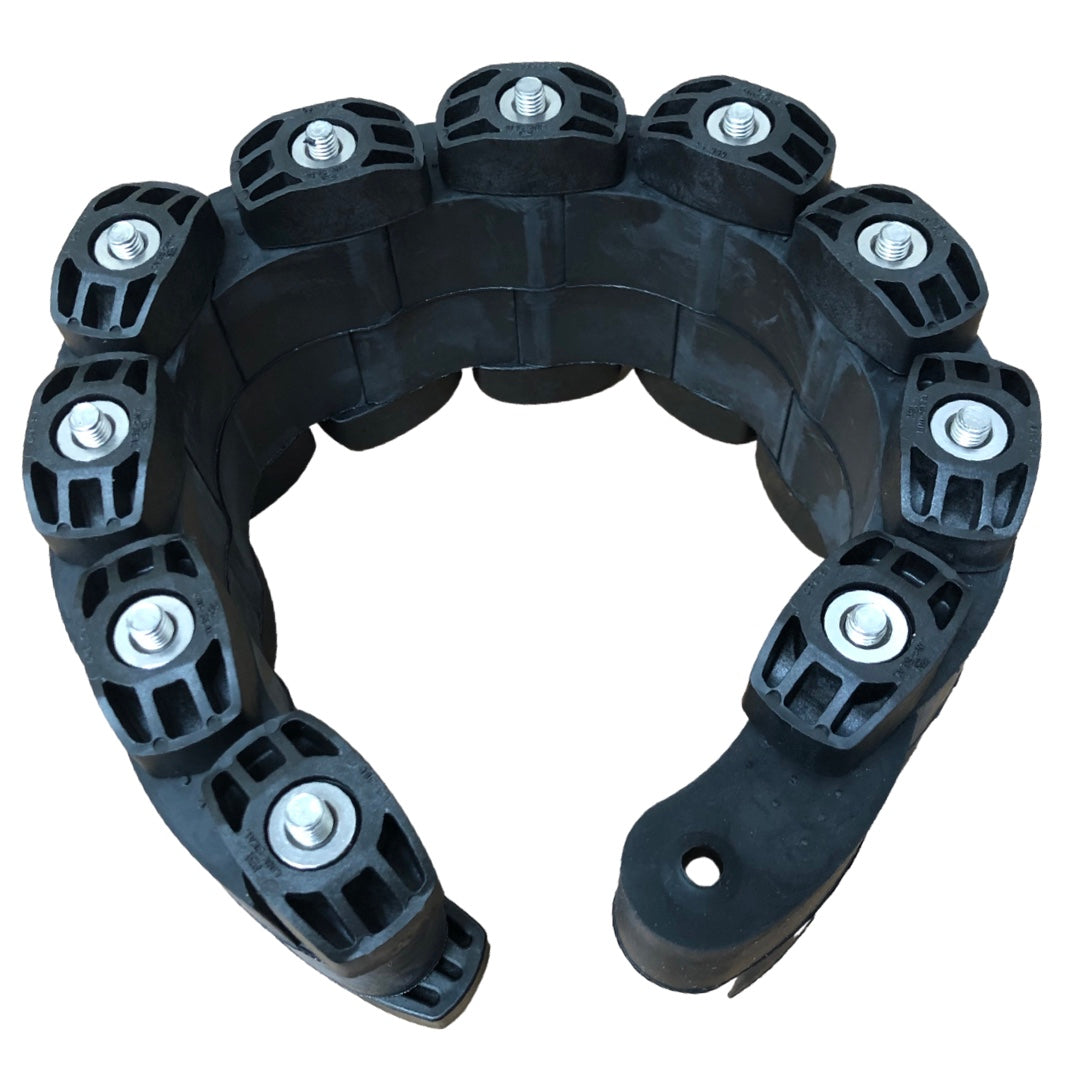

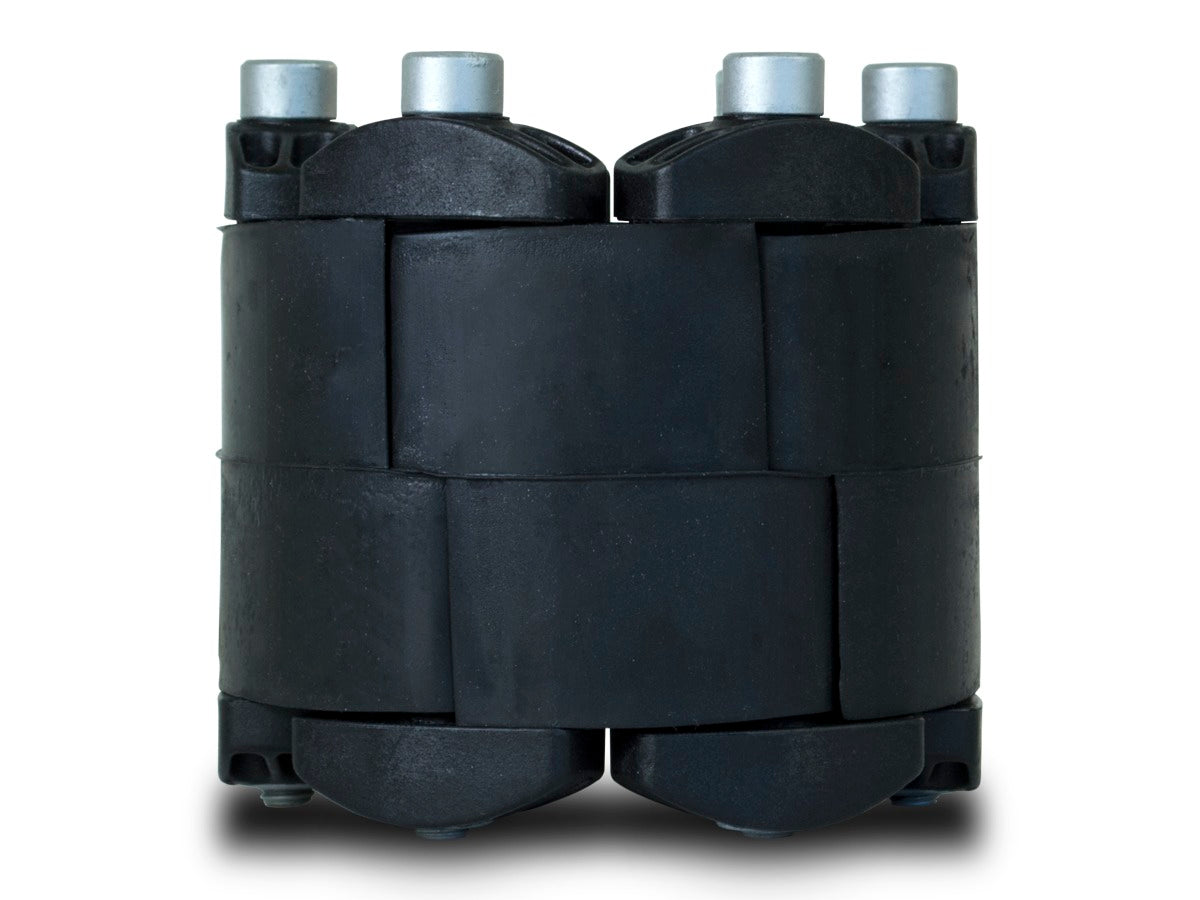

The LINK-SEAL LS-360-C is a modular, elastomer sealing system that creates a permanent, hydrostatic seal for pipes or cylindrical objects passing through barriers like concrete walls. It provides durability against fluid corrosion and contamination. The Model C features black EPDM and zinc-plated carbon steel hardware, ensuring durability in damp environments and reliable sealing against moisture, groundwater, and organic chemicals for pipelines and direct burial applications.

• Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
• Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
• Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.

Product Highlights

The LINK-SEAL LS-360-C provides a permanent hydrostatic seal for pipes passing through walls, floors, and ceilings. It is made with durable EPDM rubber and carbon steel hardware and is ISO approved.

Product Information

Standard Information

• Brand: LINK-SEAL
• Manufacturer Part Number: LS-360-C
• Country of Origin: United States

Technical Specifications

• Brand: LINK-SEAL®
• LINK-SEAL Size: 360
• Style/Model: Model C
• Rubber Seal Element: EPDM
• Hardware Material: Zinc Plated Carbon Steel
• Pressure resistance: 20psig (40 ft of head)
• Max Temperature (C): 121
• Max Temperature (F): 250
• Temperature Range (C): -40°C - 121°C
• Temperature Range (F): -40°F - 250°F
• Durometer: 50
