Link-Seal LS-340-S Link Seal, Stainless Steel

Product Description

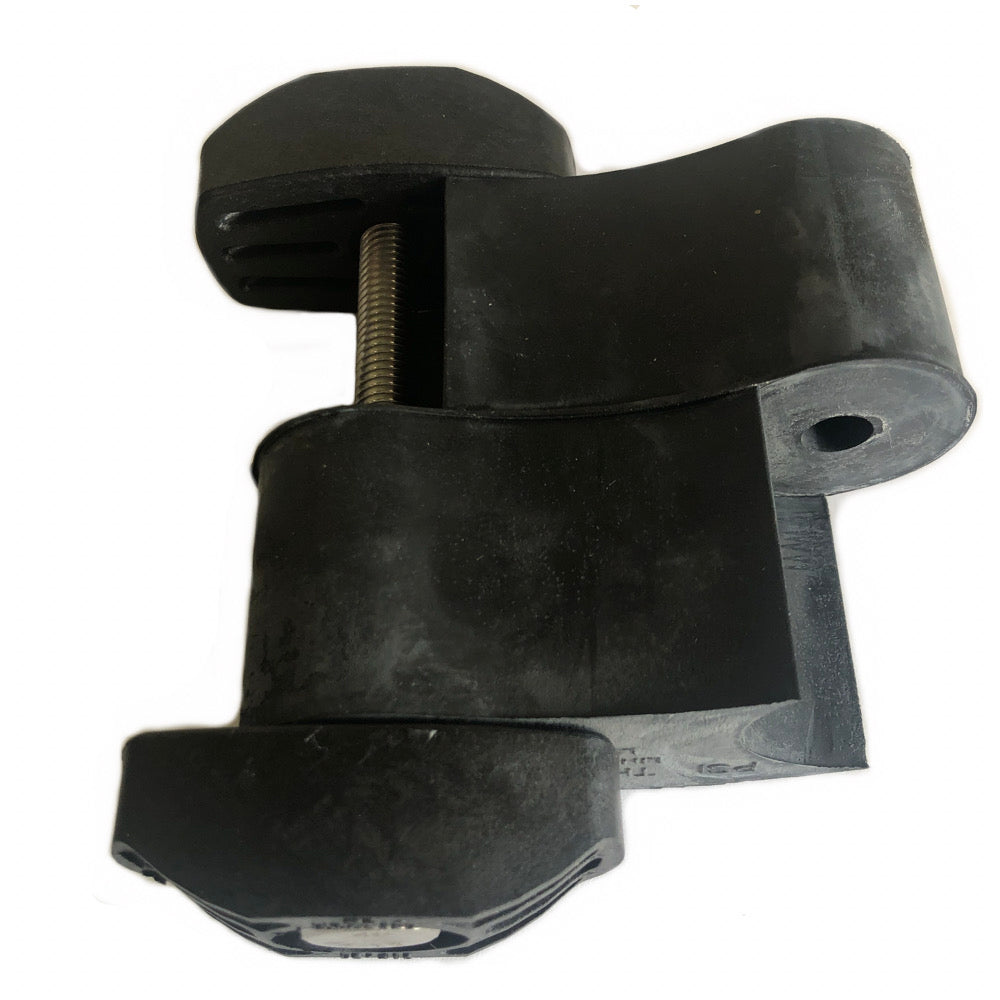

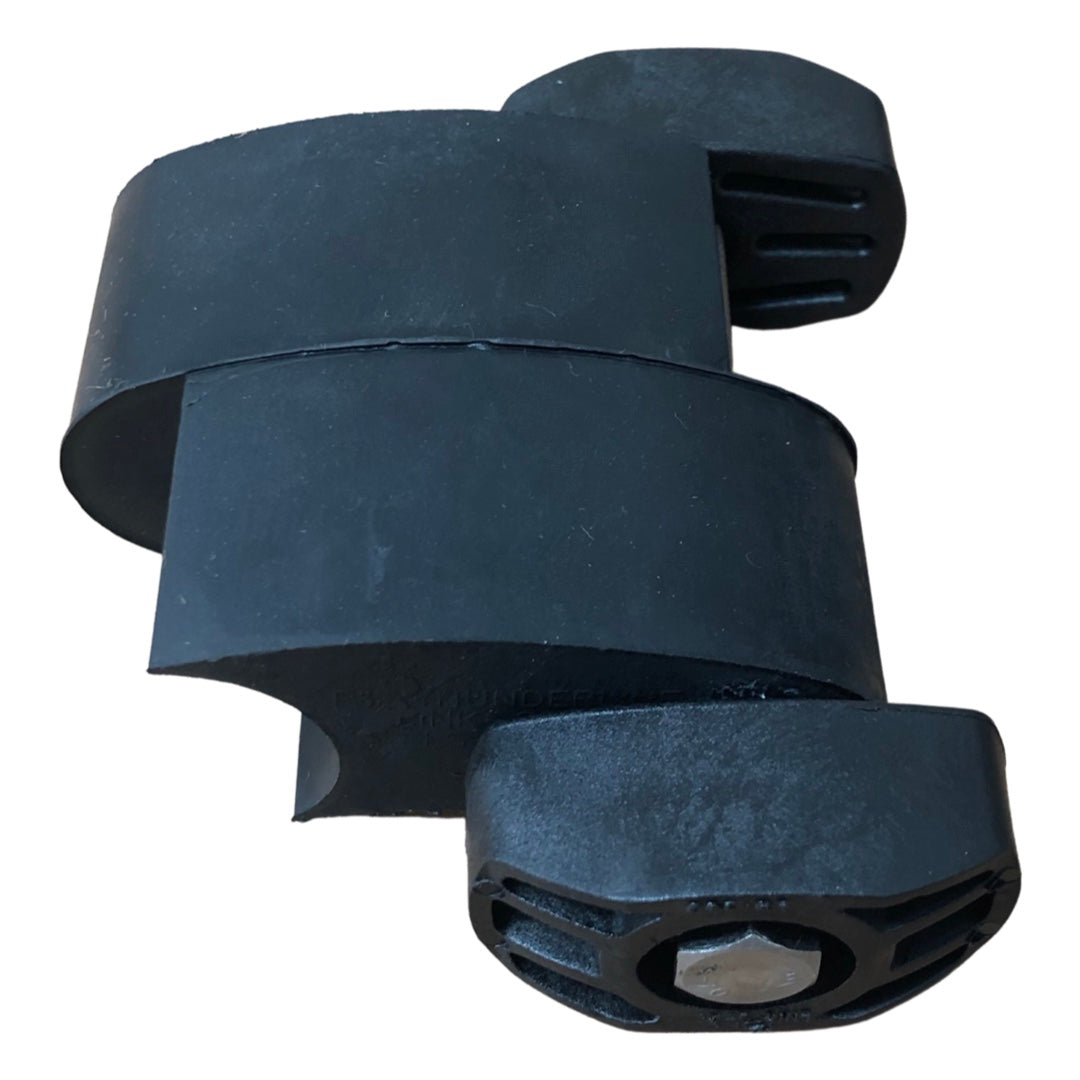

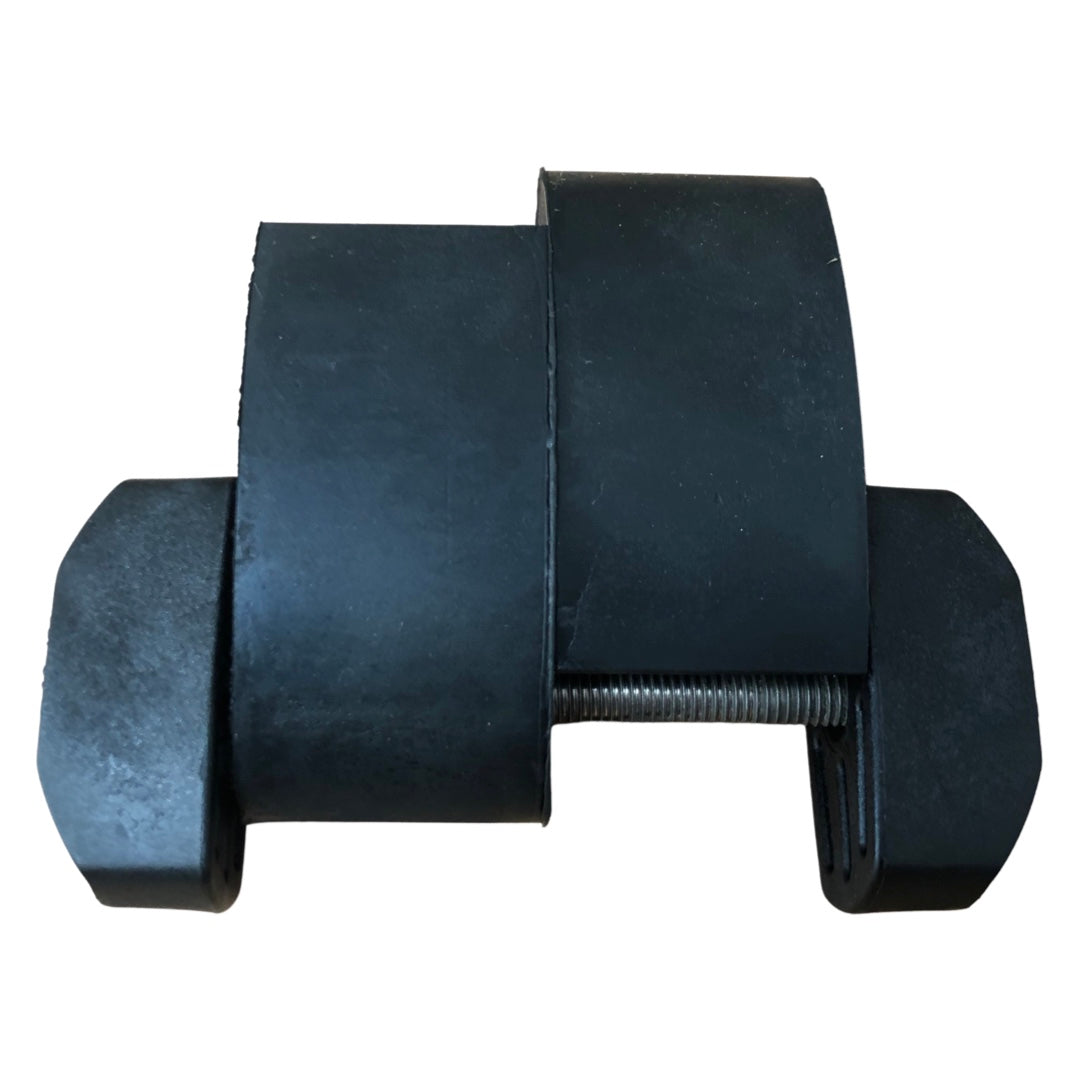

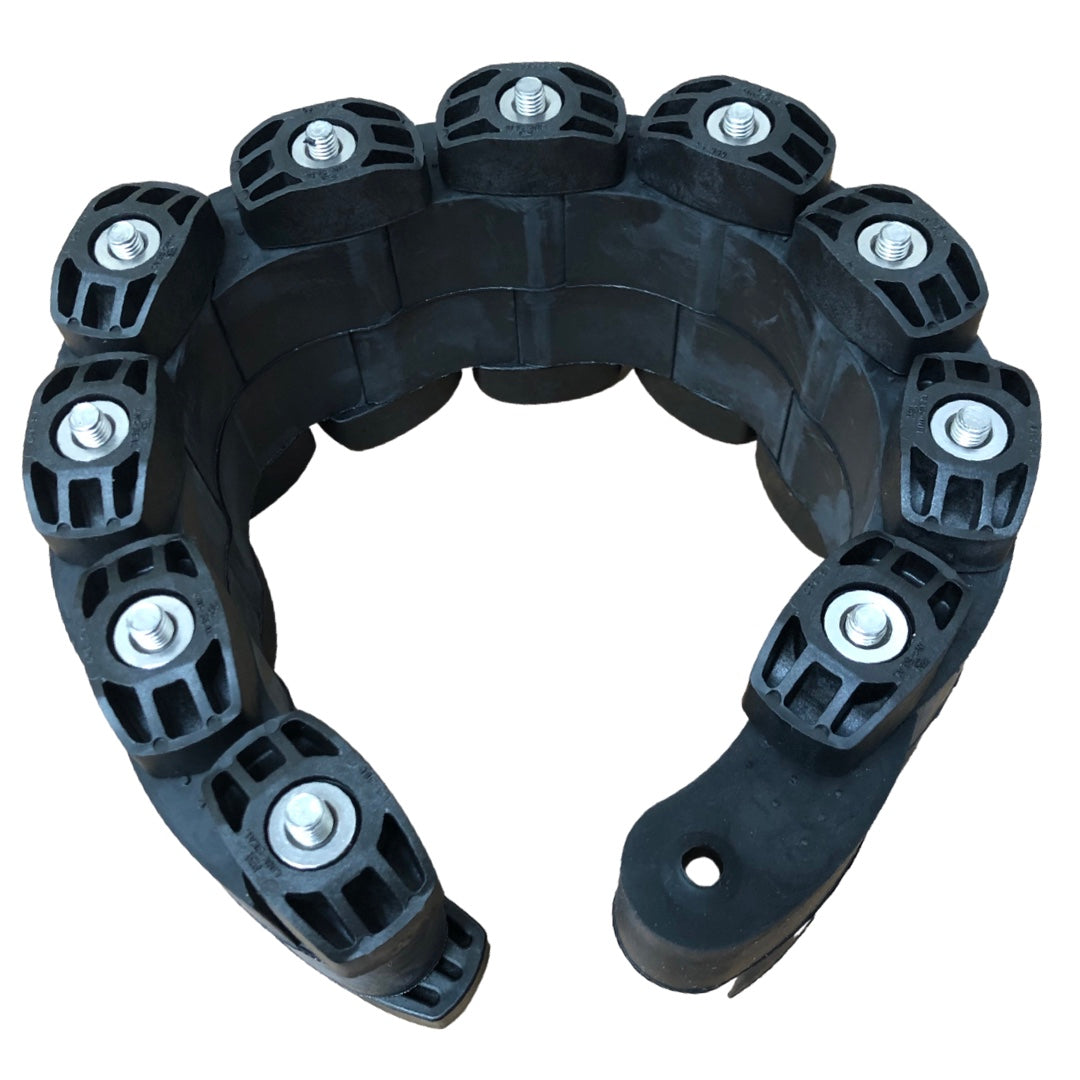

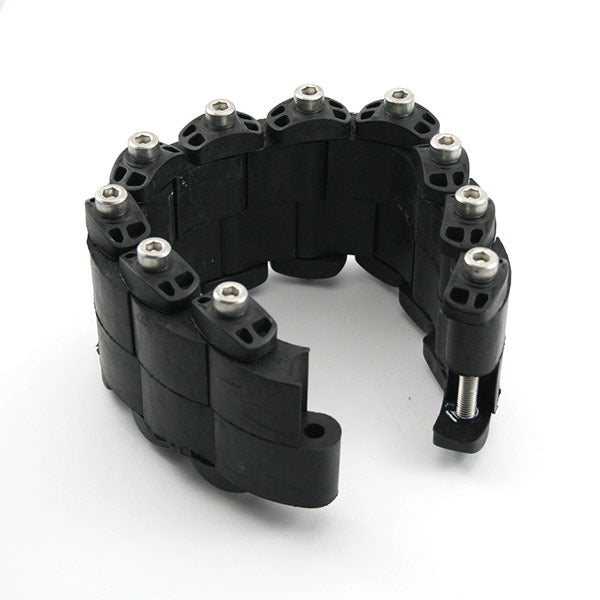

LINK-SEAL LS-340-S Link Seals are designed to provide an easy, fast and affordable way to seal pipes of any size passing through walls, floors and ceilings. The S series comes standard with Stainless Steel nuts and bolts. These seals help to provide a positive hydrostatic seal and protect against corrosion. The LS-340-S is a modular seal for sealing cylinderical objects through concrete walls.

• Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
• Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
• Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.

Product Highlights

Modular seals for sealing pipes passing through walls, floors and ceilings. Stainless Steel hardware and EPDM rubber material.

Product Information

Standard Information

• Brand: LINK-SEAL
• Manufacturer Part Number: LS-340-S

Technical Specifications

• Pressure resistant: 20psig (40 ft of head)
• Standard EPDM rubber: black
• Oil Resistant Nitrile rubber: green
• Temperature resistant Silicone rubber: gray
• Low Durometer for fragile pipe EPDM rubber: blue) Shore 40 ± 5
• Hardware Options: S316 Stainless Steel and Zinc Dichromate Coated Steel (1470 hr salt spray tested) hardware
• Material: Standard EPDM rubber (black)
• Oil Resistance: Oil Resistant Nitrile rubber (green)
• Temperature Resistance: Temperature resistant Silicone rubber (gray)
• Low Durometer: Low Durometer for fragile pipe EPDM rubber (blue) Shore 40 ± 5
• Sub-Category: Stainless Steel
