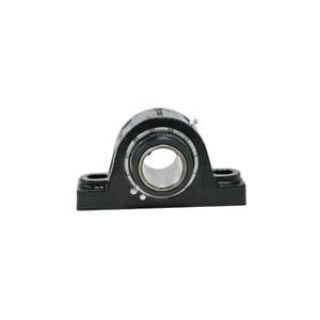

Link-Belt PB22431H Pillow Block Spherical Roller Bearing

Product Description

Link-Belt PB22431H is a pillow block spherical roller bearing designed for high-load applications. This bearing has a bore diameter of one and fifteen-sixteenths inches and features a two-bolt base for secure mounting. It is built to handle high dynamic loads and suitable for various industries such as mining and construction.

• Model: PB22431H
• Dynamic Load Capacity: 25900 lb
• Temperature Rating: 225 degrees Fahrenheit

Product Highlights

Precision construction enables smooth operation and longevity in severe environments.

Product Information

Standard Information

• Brand: Link-Belt
• Manufacturer: Rexnord

Technical Specifications

• Bore Diameter: 1-15/16 in
• Overall Length: 8-1/8 in
• Overall Width: 3-1/8 in
• Overall Height: 4-9/16 in
• Base Width: 2-1/2 in
• Load Capacity: 25900 lb Dynamic / 33200 lb Static
• Maximum Speed: 2800 rpm
• Seal Type: Clearance/Floating Labyrinth
• Expansion Type: Non-Expansion (Fixed)
• Mounting Type: Two-Bolt Base
• Base to Bore Centerline: 2-1/4 in
• Bolt Center-to-Center Length: 6-1/4 in
