Product Description

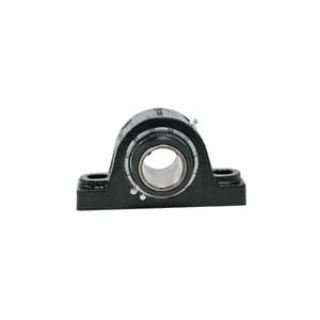

The Link-Belt PB22427E is a reliable pillow block spherical roller bearing designed to perform in various industrial settings. This bearing features a bore size of one and eleven-sixteenths inches and has robust construction to handle demanding loads.
- Two-bolt base mounting for secure installation.
- Self-aligning double row design for increased stability.
- High load capacity with dynamic load rating of twenty-four thousand seven hundred pounds.
Product Highlights
Engineered with a spring-loaded heavy contact seal, this bearing ensures effective protection against contaminants. It is particularly suitable for applications in mining, construction, and other heavy-duty environments.
Product Information
Standard Information
-
Brand: Link-Belt
-
Manufacturer: Rexnord
Technical Specifications
-
Series: B22400
-
Bore Diameter: 1-11/16 inches
-
Bolt Center-to-Center Length: 5-1/2 inches
-
Base Width: 2-1/2 inches
-
Overall Length: 7-1/8 inches
-
Overall Width: 3-1/8 inches
-
Overall Height: 4-1/4 inches
-
Load Capacity: 24,700 lbs Dynamic / 28,700 lbs Static
-
Maximum Speed: 2,350 rpm
-
Temperature Rating: 225 degrees Fahrenheit
-
Expansion Type: Non-Expansion (Fixed)
-
Locking Device: Single Set Screw Collar
-
Finish: Powder Coated
-
Seal Type: Spring-Loaded/Heavy Contact
-
Application: Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries
