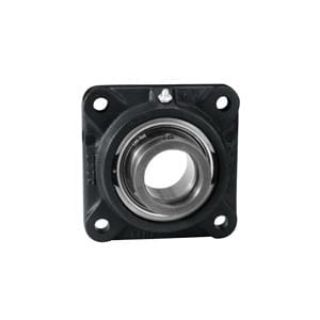

Link-Belt F3Y228NK27 LBB Standard Duty Flange Block Ball Bearing

Product Description

Link-Belt F3Y228NK27 is a standard duty flange block ball bearing designed for various industrial applications. This unit features a one and three-fourths inch bore and a robust construction suitable for handling radial and axial loads. It can be employed in settings such as conveyors, fans, and power transmission systems.

• Standard duty design for versatile applications
• High load capacity up to seven thousand three hundred seventy pounds dynamic
• Designed for operational efficiency at five thousand three hundred thirty RPM

Product Highlights

This bearing unit is built for reliability and efficiency in demanding environments. Its sturdy construction and high load capacity make it appropriate for heavy-duty use in aggregate and agricultural industries.

Product Information

Standard Information

• Brand: Link-Belt
• Manufacturer: Rexnord

Technical Specifications

• Bore Diameter: 1-3/4 in
• Dynamic Load Capacity: 7370 lb
• Static Load Capacity: 4590 lb
• Maximum Speed: 5330 rpm
• Overall Depth: 2-9/32 in
• Overall Height: 5-3/8 in
• Locking Device: Eccentric Cam Collar
• Temperature Rating: 225 deg F
• Flange Mounting Type: 4-Bolt Square
• Overall Length/Diameter: 5-3/8 in
• Bolt Center-to-Center Length: 4-1/8 in
• Bolt Circle Diameter: 5-53/64 in
• Finish: Powder Coated
• Country of Origin: MX
