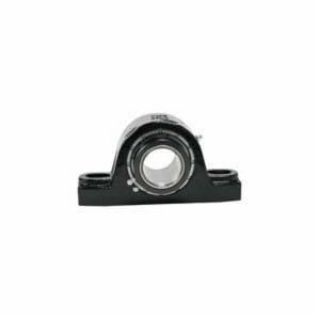

Link-Belt EPB22440H LBB Type E Solid Housed Pillow Block Spherical Roller Bearing Unit

Product Description

The Link-Belt EPB22440H LBB is a Type E solid housed pillow block spherical roller bearing unit. It features a two and one-half inch bore, making it suitable for various industrial applications.

• High capacity for radial and combined loads
• Designed for easy installation and maintenance
• Accommodates misalignment with precision

Product Highlights

This bearing unit is engineered for reliability in industries such as mining, steel, and construction.

Product Information

Standard Information

• Brand: Link-Belt
• Manufacturer: Rexnord

Technical Specifications

• MPN: EPB22440H
• Bore Diameter: 2-1/2 in
• Overall Length: 10-1/2 in
• Overall Width: 3-1/2 in
• Overall Height: 5-1/2 in
• Load Capacity: 38300 lb Dynamic / 53500 lb Static
• Maximum Speed: 2300 rpm
• Temperature Rating: 225 deg F
• Mounting Type: Two-Bolt Base
• Expansion Type: Non-Expansion (Fixed)
• Seal Type: Clearance/Floating Labyrinth
• Base to Bore Centerline: 2-3/4 in
• Bolt Center-to-Center Length: 6-15/16 to 8-3/4 in
• Locking Device: Single Set Screw Collar
