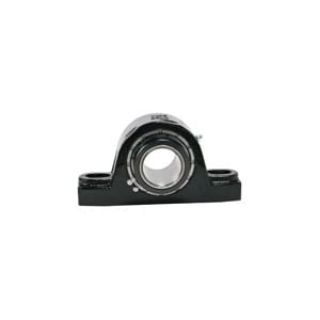

Link-Belt EPB22439H Pillow Block Spherical Roller Bearing

Product Description

The Link-Belt EPB22439H is a pillow block spherical roller bearing designed for various industrial applications. This bearing features a bore diameter of 2-7/16 inches and a bolt center-to-center length ranging from 6-15/16 inches to 8-3/4 inches, providing robust support for heavy loads.

• Self-aligning double row design for improved performance.
• High capacity for radial or combined loads.
• Separable outer rings for easy maintenance and installation.

Product Highlights

Ideal for use in mining, construction, and handling industries, the EPB22439H offers excellent durability and reliability.

Product Information

Standard Information

• Brand: Link-Belt
• Manufacturer: Rexnord

Technical Specifications

• Material: Cast Iron
• Mounting Type: Two-Bolt Base
• Expansion Type: Non-Expansion (Fixed)
• Bore Diameter: 2-7/16 inches
• Overall Length: 10-1/2 inches
• Overall Height: 5-1/2 inches
• Overall Width: 3-1/2 inches
• Load Capacity: 38300 lb Dynamic / 53500 lb Static
• Maximum Speed: 2300 rpm
• Temperature Rating: 225 degrees F
• Base Width: 2-11/16 inches
• Base to Bore Centerline: 2-3/4 inches
• Bolt Center-to-Center Length: 6-15/16 to 8-3/4 inches
