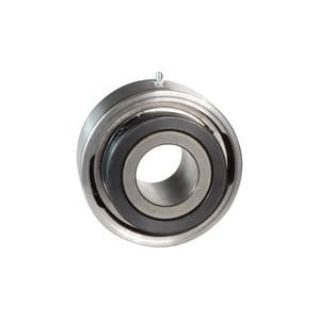

Link-Belt CU328 LBB Fixed Heavy Duty Mounted Cartridge Block Ball Bearing

Product Description

The Link-Belt CU328 LBB is a fixed heavy duty mounted cartridge block ball bearing designed for high-capacity and high-speed applications. With a bore diameter of one and three-fourth inches and an outside diameter of four point five hundred ninety-four inches, this bearing is ideal for various industrial setups.

• High-load capacity: 11870 lb dynamic and 7110 lb static.
• Maximum speed rating of 6200 rpm.
• Manufactured from alloy steel for enhanced durability.

Product Highlights

This bearing provides a cool running experience and is capable of high-speed operations. It employs state-of-the-art optical strain sensor technology for improved performance and minimal vibrations.

Product Information

Standard Information

• Manufacturer: Rexnord
• Type: Fixed Heavy Duty Mounted

Technical Specifications

• Bore Diameter: 1-3/4 in
• Outside Diameter: 4.594 in
• Width: 2-19/32 in
• Load Capacity: 11870 lb Dynamic/7110 lb Static
• Maximum Speed: 6200 rpm
• Temperature Rating: 225 deg F
• Finish: Uncoated
• Series: 300
