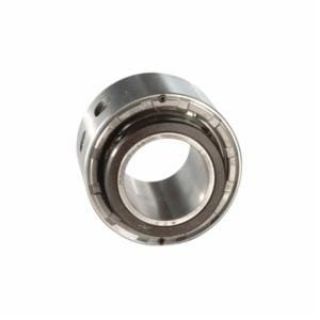

Link-Belt CSEB22424H LBB Mounted Spherical Roller Bearing

Product Description

The Link-Belt CSEB22424H is a mounted spherical roller bearing designed for various heavy-duty applications. This bearing features a one and one-half inch bore diameter and provides an outside diameter of three point one two four inches. With a width of two and seven-eighth inches, it can handle dynamic loads up to seventeen thousand eight hundred pounds and static loads of twenty thousand nine hundred pounds.

• Hardened spring locking collar for secure attachment
• Sealed and pre-lubricated for ease of installation
• Capabilities to accommodate misalignment of up to four degrees

Product Highlights

This bearing is suitable for aggregates, air handling, construction, and mining applications. Its robust design minimizes the need for adjustments during mounting. The maximum speed rating reaches two thousand seven hundred fifty revolutions per minute.

Product Information

Standard Information

• Brand: Link-Belt
• Manufacturer: Rexnord

Technical Specifications

• Bore Diameter: 1-1/2 inches
• Outside Diameter: 3.124 inches
• Width: 2-7/8 inches
• Load Capacity: 17800 lb Dynamic / 20900 lb Static
• Maximum Speed: 2750 rpm
• Series: B22400
• Finish: Uncoated
• Standards: ANSI | ABMA STD 11-1990
