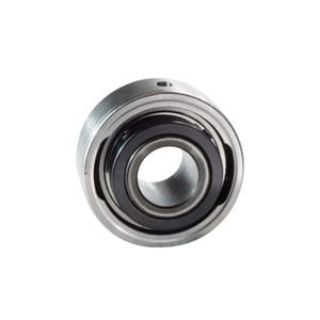

Link-Belt CEU312 LBB Expansion Heavy Duty Mounted Cartridge Block Ball Bearing

Product Description

The Link-Belt CEU312 LBB is a heavy-duty mounted cartridge block ball bearing designed for high capacity and high-speed applications. This bearing features a three-fourth inch bore diameter and an outside diameter of two point four six nine inches. It is suitable for use in various industrial applications such as aggregates, air handling, forestry, mining, steel, and package handling industries.

• Constructed from quality alloy steel for durability.
• Designed for dynamic load capacity of three thousand six hundred fourteen pounds.
• Can operate at speeds up to ten thousand nine hundred fifty revolutions per minute.

Product Highlights

This bearing unit offers a compact design that supports high-load operations while ensuring quiet and efficient performance.

Product Information

Standard Information

• Type: Expansion Heavy Duty Mounted
• Series: 300

Technical Specifications

• Bore Diameter: 3/4 inches
• Outside Diameter: 2.469 inches
• Width: 1-15/32 inches
• Load Capacity: 3614 lb Dynamic / 1770 lb Static
• Maximum Speed: 10950 rpm
• Temperature Rating: 225 degrees Fahrenheit
• Material: Alloy Steel
