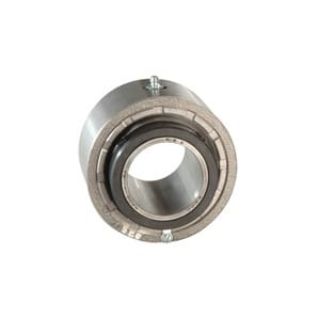

Link-Belt CB22448H LBB Spherical Roller Bearing 3 in Bore Dia B22400

Product Description

The Link-Belt CB22448H LBB is a fixed mounted cartridge block spherical roller bearing. It features a bore diameter of three inches and an outside diameter of five and seven-eighths inches. This bearing is specifically designed for heavy loads and demanding applications.

• Self-aligning double row design for load distribution.
• Designed for mining, construction, and steel industries.
• Operates efficiently between temperatures of negative forty to four hundred degrees Fahrenheit.

Product Highlights

This bearing includes a spring locking collar which secures the inner ring to the shaft and features a clearance seal for enhanced protection against contaminants.

Product Information

Standard Information

• Brand: Link-Belt
• Manufacturer: Rexnord

Technical Specifications

• Bore Diameter: 3 inches
• Outside Diameter: 5-7/8 inches
• Width: 4-1/32 inches
• Load Capacity: 51100 lb Dynamic / 71500 lb Static
• Maximum Speed: 1950 rpm
• Number of Rows: 2
• Temperature Rating: -40 to 400 degrees Fahrenheit
• Series: B22400
