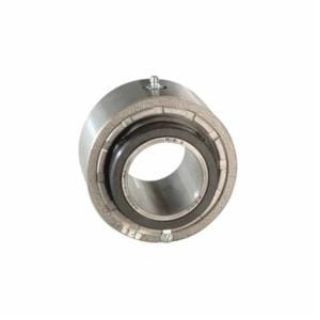

Link-Belt CB22440H LBB Mounted Spherical Roller Bearing Cartridge Block

Product Description

Link-Belt CB22440H is a mounted spherical roller bearing cartridge block designed for various industrial applications. This bearing features a two and one-half inch bore diameter and a five inch outside diameter. It has a width of three and seventeen thirty-seconds inches and is suitable for dynamic loads of thirty-eight thousand three hundred pounds and static loads of fifty-three thousand five hundred pounds. The CB22440H can handle a maximum speed of seventeen hundred fifty revolutions per minute and operates effectively at temperatures up to two hundred twenty-five degrees Fahrenheit.

• Durable powder-coated finish for corrosion resistance
• Separable outer rings to ease maintenance
• Floating labyrinth seal to prevent contamination

Product Highlights

This bearing offers an easy mounting solution with factory set clearance and pre-lubrication, eliminating the need for additional adjustments during installation.

Product Information

Standard Information

• Brand: Link-Belt
• Manufacturer: Rexnord

Technical Specifications

• Bore Diameter: 2-1/2 inches
• Outside Diameter: 5 inches
• Width: 3-17/32 inches
• Load Capacity: 38300 lbs Dynamic / 53500 lbs Static
• Maximum Speed: 1750 rpm
• Temperature Rating: 225 degrees F
• Series: B22400
• Finish: Powder Coated
