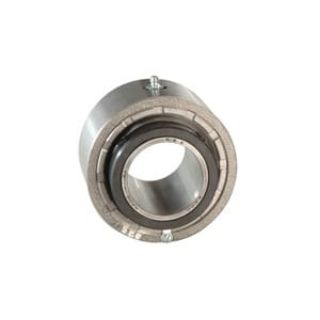

Link-Belt CB22424H LBB Fixed Mounted Cartridge Block Spherical Roller Bearing

Product Description

The Link-Belt CB22424H LBB is a fixed mounted cartridge block spherical roller bearing suitable for various industrial applications. This bearing features a one and a half inch bore diameter and an outer diameter measuring three point four three seven inches.

• Self-aligning double row operation ensures smooth tracking.
• Designed for high radial load capacity up to seventeen thousand eight hundred pounds dynamically.
• Operates effectively in temperature ranges from negative forty to four hundred degrees Fahrenheit.

Product Highlights

This bearing is ideal for sectors such as mining, construction, and steel processing.

Product Information

Standard Information

• Brand: Link-Belt
• Manufacturer: Rexnord

Technical Specifications

• Bore Diameter: 1-1/2 in
• Outside Diameter: 3.437 in
• Width: 2-29/32 in
• Dynamic Load Capacity: 17800 lb
• Static Load Capacity: 20900 lb
• Maximum Speed: 3600 rpm
• Temperature Rating: -40 to 400 deg F
• Number of Rows: 2
