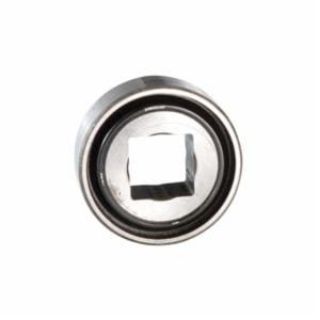

Link-Belt 20SBG5209E3 200 Standard Duty Unmounted Square Bore Ball Bearing

Product Description

Link-Belt 20SBG5209E3 is a standard duty unmounted square bore ball bearing designed for various industrial applications. This bearing features a bore diameter of one and one-quarter inches, an outer diameter of three point three four six five inches, and a width of zero point eight six six one inches.

• Robust design for heavy loads.
• High-performance alloy steel material.
• Suitable for temperatures ranging from minus forty to two hundred twenty-five degrees Fahrenheit.

Product Highlights

The Link-Belt 20SBG5209E3 provides reliability and durability for machinery operating under significant stress.

Product Information

Standard Information

• Brand: Link-Belt
• Manufacturer: Rexnord

Technical Specifications

• Series: 200
• Bore Diameter: 1-1/4 in
• Outside Diameter: 3.3465 in
• Width: 0.8661 in
• Flange Thickness: 0.22 in
• Load Capacity: 7370 lb Dynamic / 4590 lb Static
• Maximum Speed: 650 rpm
• Bearing Material: Alloy Steel
• Temperature Rating: -40 to 225 deg F
• Country of Origin: MX
