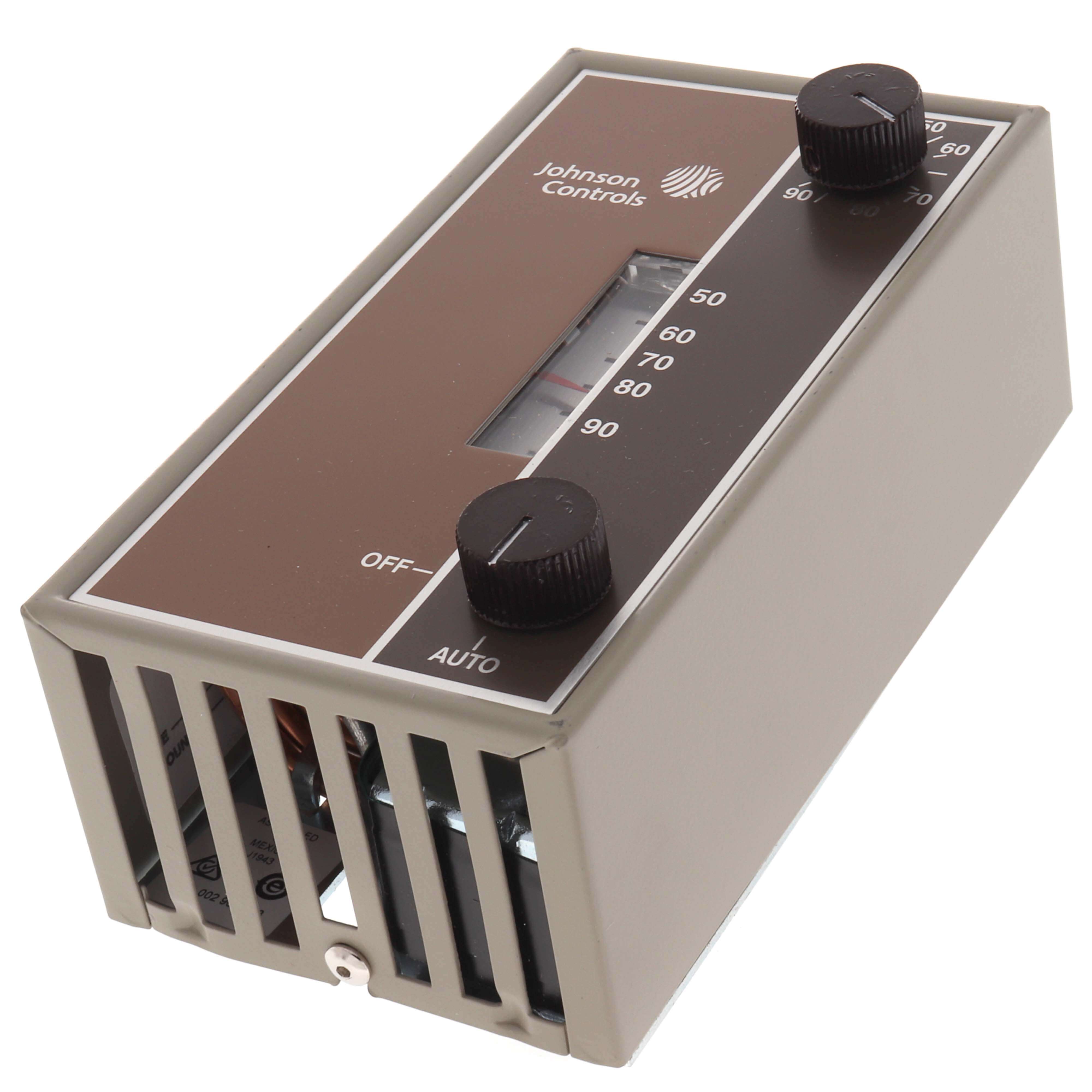

Johnson Controls T22AAA-1C Penn Series T22 Line Voltage Wall Thermostat, Heating, Knob Adjustment, SPST Application, Off-Auto Switch, 1C Differential

Product Description

The Johnson Controls T22AAA-1C is a line voltage wall thermostat designed for use in heating and cooling systems. This model features SPST application, ideal for controlling electric heating systems. The thermostat includes a knob adjustment for user-friendly operation and an off-auto switch for convenient control. This device is suitable for various settings including residential, commercial, and industrial.

• Knob adjustment for easy temperature changes
• SPST contact action for reliability
• Versatile use in electric heating applications

Product Highlights

This thermostat is engineered for straightforward temperature control in environments that require efficient heating management.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T22AAA-1C

Technical Specifications

• Voltage: 120/208/240/277VAC
• Control Range: 40 to 90 degrees F
• Switch Type: SPST
• Temperature Differential: 1 degree F
• Full Load Amps @ 120VAC: 15 A
• Full Load Amps @ 240VAC: 3 A
• Overall Dimensions: 6.1 x 3.7 x 3.6 inches
• Weight: 1.25 pounds
