LINE REACTORS KDRAA4L2 KDR 480V 7 1/2 HP Replacement MPN

Product Description

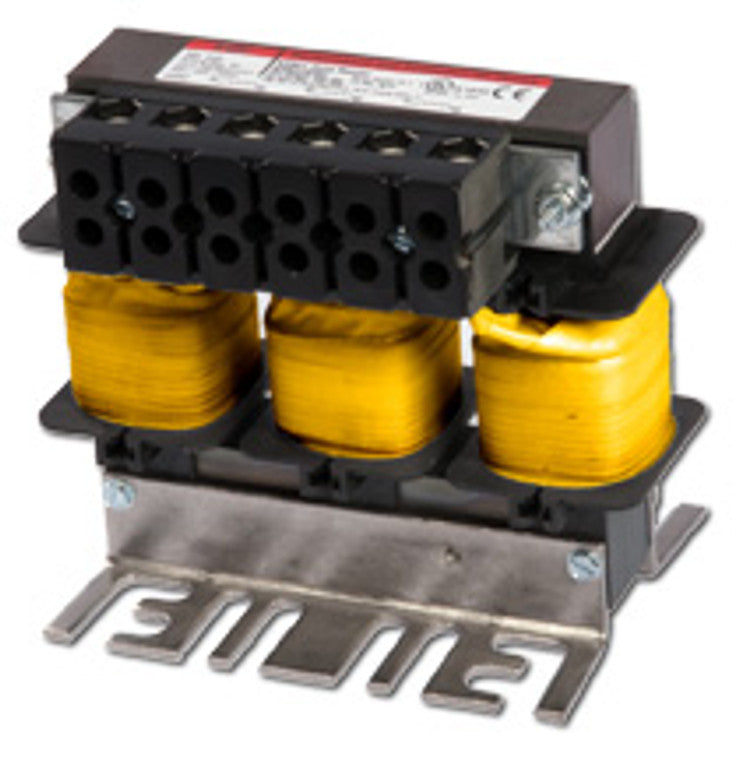

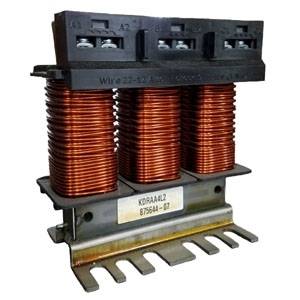

The LINE REACTORS KDRAA4L2 is a line inductor rated for 480V and 7 1/2 HP. This open-type reactor features a 3% impedance, suitable for three-phase applications. It aids in improving power quality and protecting sensitive devices from electrical distortion.

• Rated for 480V and 7.5 HP
• UL Listed and designed for open installations
• Reduces harmonics and improves system efficiency

Product Highlights

This line reactor enhances performance by decreasing motor heating and noise while providing essential impedance against harmonics.

Product Information

Standard Information

• Brand: LINE REACTORS
• Model: KDRAA4L2

Technical Specifications

• Rated Voltage: 480 V
• Horsepower (HP): 7.5 HP
• Impedance Value: 3%
• UL Approval: UL Listed
• Enclosure Type: Open
• Watts Loss: 64 W
• Phase: Three Phase
• Hertz (Hz): 50/60
• Temp Rise: 135
• Height: 4.44 in
• Width: 4.25 in
• Depth: 2.64 in
• Warranty: 18 Months
• Rated Amps: 11.6 A
• Inductance: 0.002 H
• Net Weight: 3.39 lbs
• Gross Weight: 3.83 lbs
