Line-hide nr-100 Line Set Cover Base End Socket 2-15/16 X 4-3/16 X 4-1/2 Inches

Product Description

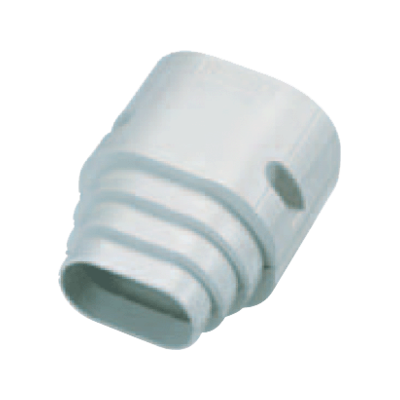

The Line-Hide NR-100 is a base end socket designed for use with the Line-Hide Line Set Cover System. It provides a clean, finished termination point where a line set cover meets a wall, floor, or other flat surface. HVAC installers and technicians use line set cover systems to protect refrigerant lines, electrical wiring, and condensate drain lines running along the exterior or interior of a building. Without a proper cover system, these lines are exposed to UV damage, physical wear, and weather. The NR-100 end socket closes off the base of the cover run, giving the installation a professional and polished look. This component measures 2-15/16 inches by 4-3/16 inches by 4-1/2 inches, making it compatible with standard Line-Hide duct channel assemblies of the same profile size. One important feature of this end socket is that it can be cut to accommodate various line set combinations. This means technicians can trim the socket to fit the specific number and size of lines running through the cover system, whether that includes one or two refrigerant lines, a power cable, or a condensate drain. This flexibility reduces the need for multiple part numbers and simplifies inventory for HVAC service companies and contractors. The NR-100 is part of a modular cover system, so it works alongside straight duct sections, elbows, couplings, and other fittings in the Line-Hide product family. Using matched components from the same system ensures consistent color, sizing, and fit throughout the installation. This base end socket is a finishing component that completes the line set cover run at its starting or ending point.

• Fits the Line-Hide Line Set Cover System for a consistent, matched installation
• Can be cut to fit various line set combinations including refrigerant lines, power cables, and drain lines
• Provides a clean, finished termination at the base of a line set cover run

Product Highlights

The Line-Hide NR-100 base end socket delivers a professional finish to line set cover installations and offers field-adjustable sizing to fit a range of line set configurations.

Product Information

Standard Information

• Brand: LINE-HIDE
• Manufacturer Part Number: NR-100

Technical Specifications

• Component Type: Base End Socket
• Width: 2-15/16 inches
• Depth: 4-3/16 inches
• Height: 4-1/2 inches
• Application: Line Set Cover System Termination
• Cuttable: Yes, to accommodate various line set combinations
