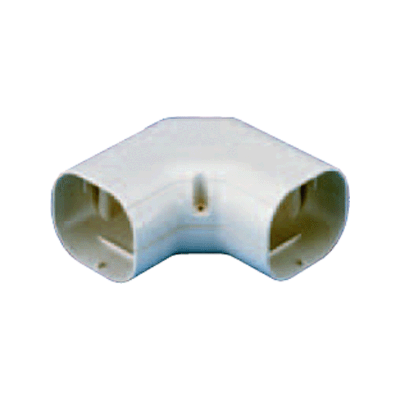

Line-hide ne-100 Line Set Cover 90 Degree Horizontal Elbow 2-15/16 X 4-3/16 X 6-5/16 Inches

Product Description

The Line-Hide NE-100 is a 90-degree horizontal elbow fitting designed for use with the Line-Hide Line Set Cover System. This component measures 2-15/16 inches by 4-3/16 inches by 6-5/16 inches and is built to provide clean, professional direction changes on horizontal line set cover runs. HVAC technicians and installers use line set covers to conceal refrigerant lines, electrical wiring, and condensate drain lines on mini-split and central air conditioning systems. A 90-degree horizontal elbow like the NE-100 allows the cover system to make a sharp turn along a wall surface without exposing the lines underneath. This is a critical fitting for any installation where the line set must change direction horizontally, such as when routing around corners on the exterior or interior of a building. The NE-100 is part of the Line-Hide modular cover system, which is widely used in residential and light commercial HVAC applications. These systems give finished installations a neat appearance that customers and building owners expect. The elbow snaps or connects into place with standard Line-Hide cover channels, making the installation process straightforward for experienced HVAC technicians. Using the correct elbow fitting ensures a flush, secure fit that protects the lines from physical damage, UV exposure, and weather. Proper line set cover systems also help meet local codes and inspection requirements by keeping refrigerant lines safely enclosed. The NE-100 is a direct-fit component for technicians already working with the Line-Hide system and need to complete a horizontal direction change cleanly and efficiently.

• 90-degree horizontal elbow fitting for the Line-Hide Line Set Cover System
• Dimensions: 2-15/16 inches x 4-3/16 inches x 6-5/16 inches for a precise fit
• Used to route line set covers around horizontal corners on HVAC installations

Product Highlights

The Line-Hide NE-100 is a modular horizontal elbow that integrates with the Line-Hide Line Set Cover System, giving HVAC installers a clean and code-friendly solution for horizontal direction changes on mini-split and split-system line set runs.

Product Information

Standard Information

• Brand: LINE-HIDE
• Manufacturer Part Number: ne-100

Technical Specifications

• Product Type: Line Set Cover Elbow Fitting
• Elbow Angle: 90 Degrees
• Orientation: Horizontal
• Dimensions: 2-15/16 inches x 4-3/16 inches x 6-5/16 inches
• Compatible System: Line-Hide Line Set Cover System
