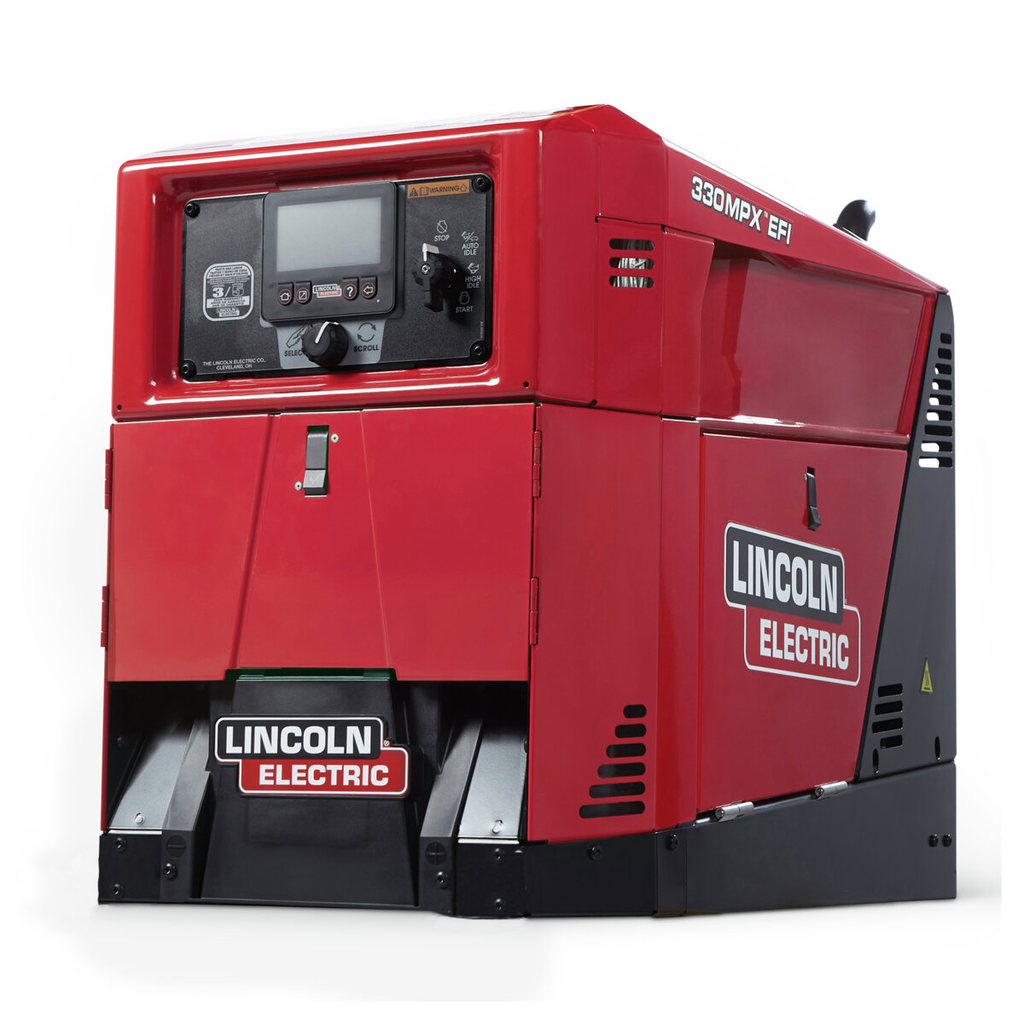

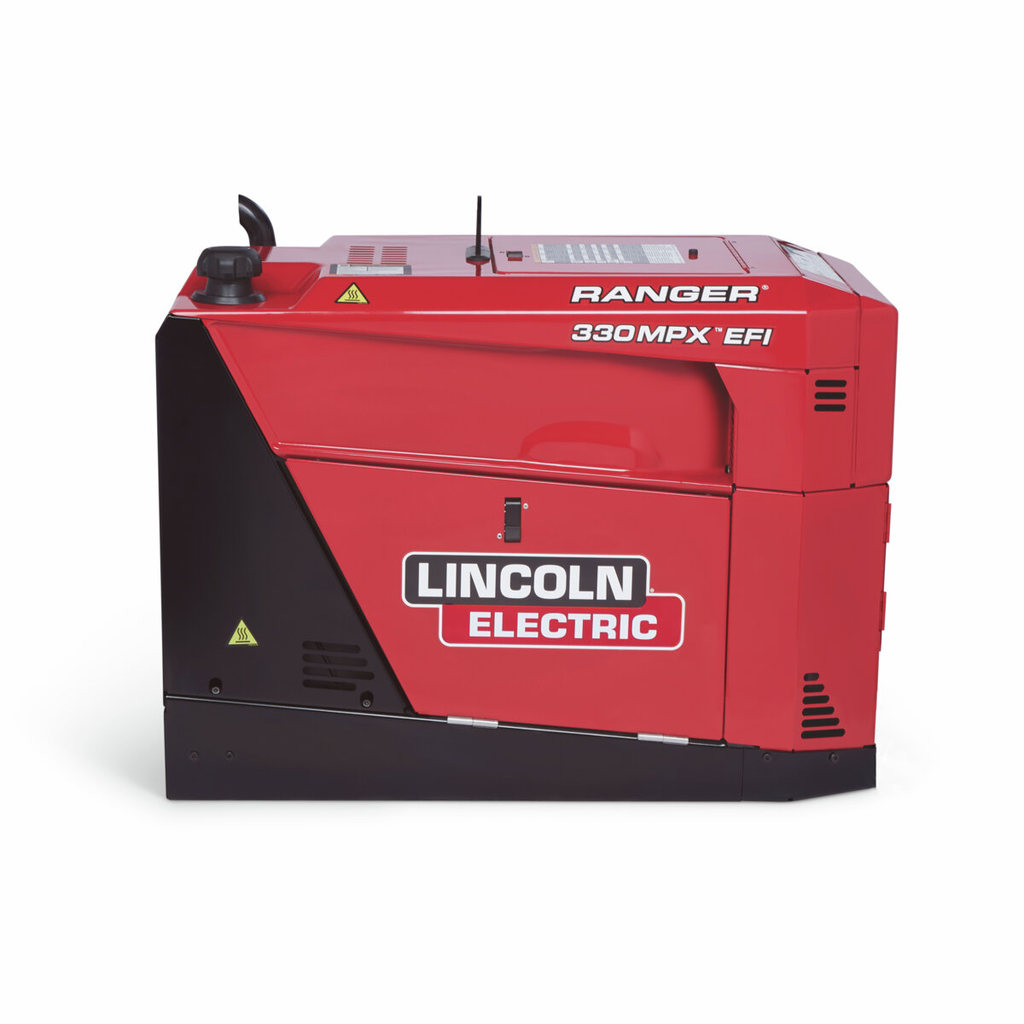

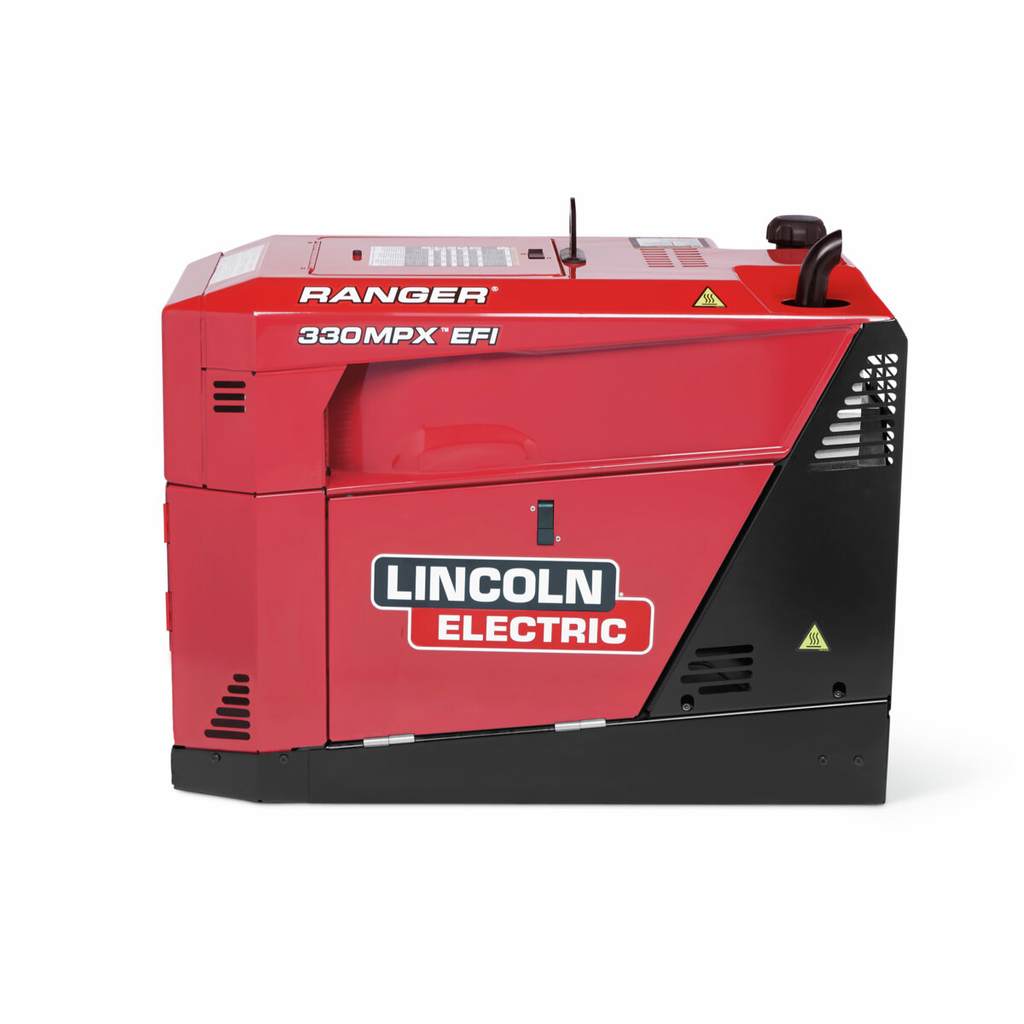

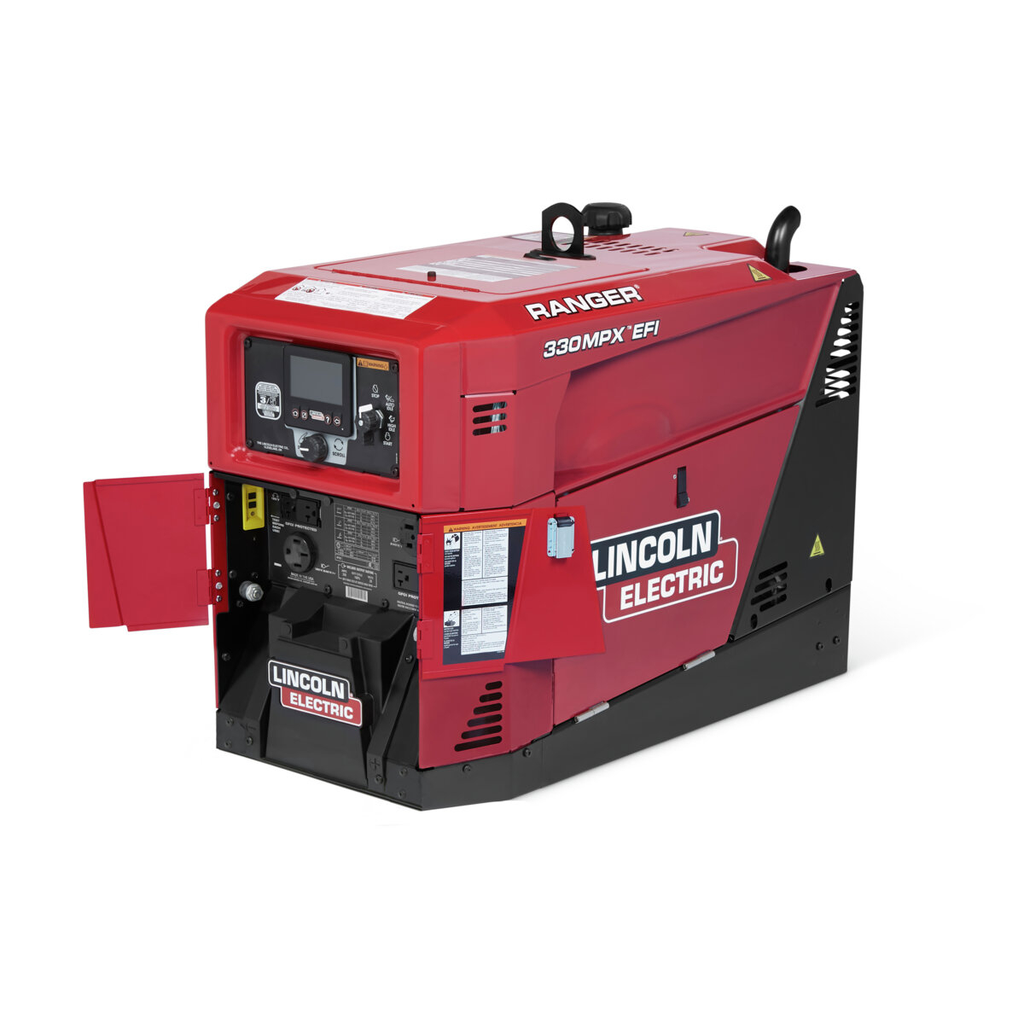

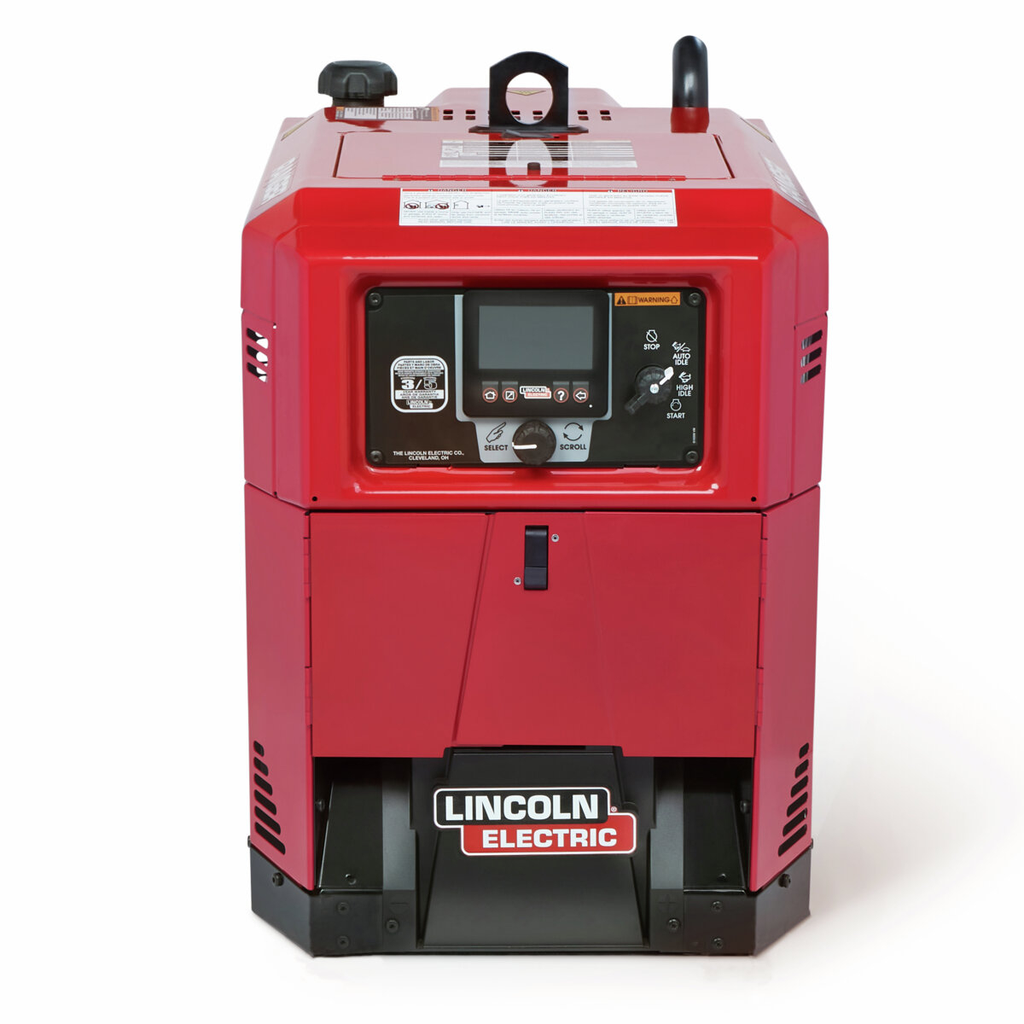

Lincoln Electric LINK4779-1 Ranger 330MPX EFI Engine Driven Welder (Kohler) 25 hp

Product Description

The LINCOLN ELECTRIC LINK4779-1 Ranger 330MPX EFI Engine Driven Welder (Kohler) is a premium welder/generator designed with an Electronic Fuel Injection (EFI) engine. This unit offers enhanced performance and multi-process capability for stick, TIG, MIG, gouging, and pipe applications. Its advanced EFI engine ensures quick starts, improved fuel efficiency, and optimal operation in various conditions, including high altitudes. The machine features a compact design, being up to 20% smaller and 25% lighter than comparable models, facilitating easier transport. It also provides a clean AC generator output for sensitive electronics.

• Premium welder/generator with EFI engine for enhanced multi-process capability (stick, TIG, MIG, gouging, pipe).
• Compact size and lighter design (up to 20% smaller footprint, 25% lighter) for easier transport.
• Low decibel rating (up to 60% quieter) and clean AC generator output for sensitive electronics.

Product Highlights

Advanced EFI engine ensures optimal performance and fuel efficiency across diverse welding applications.

Product Information

Standard Information

• Brand: LINCOLN ELECTRIC
• Manufacturer Part Number: LINK4779-1
• Country of Origin: US

Technical Specifications

• Engine Type: 2-Cylinder Air-Cooled Gasoline Engine
• Engine Manufacturer: Kohler
• Engine Technology: Electronic Fuel Injection (EFI)
• Fuel Type: Gasoline
• Frequency: 60 Hz
• Phase: 1
• Process: Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G), Pulsed MIG (GMAW-P)
• Fuel Tank Capacity: 11 gal
• Horsepower: 25 hp
• Number of Cylinders: 2
• Continuous Auxiliary Power: 10,000 W
• Peak Auxiliary Power: 11,500 W
• Cooling Method: Air Cooled
• Maximum Output Current (DC): 330 A
• Maximum Output Current (Stick): 330 A
• Minimum Output Current (Stick): 35 A
• Minimum Output Current (TIG): 25 A
• Duty Cycle: 100% @ 330A DC CC / 100% @ 312A DC CV
• Output Current Type: DC
• Output Mode: CC
• Input Style: Engine
