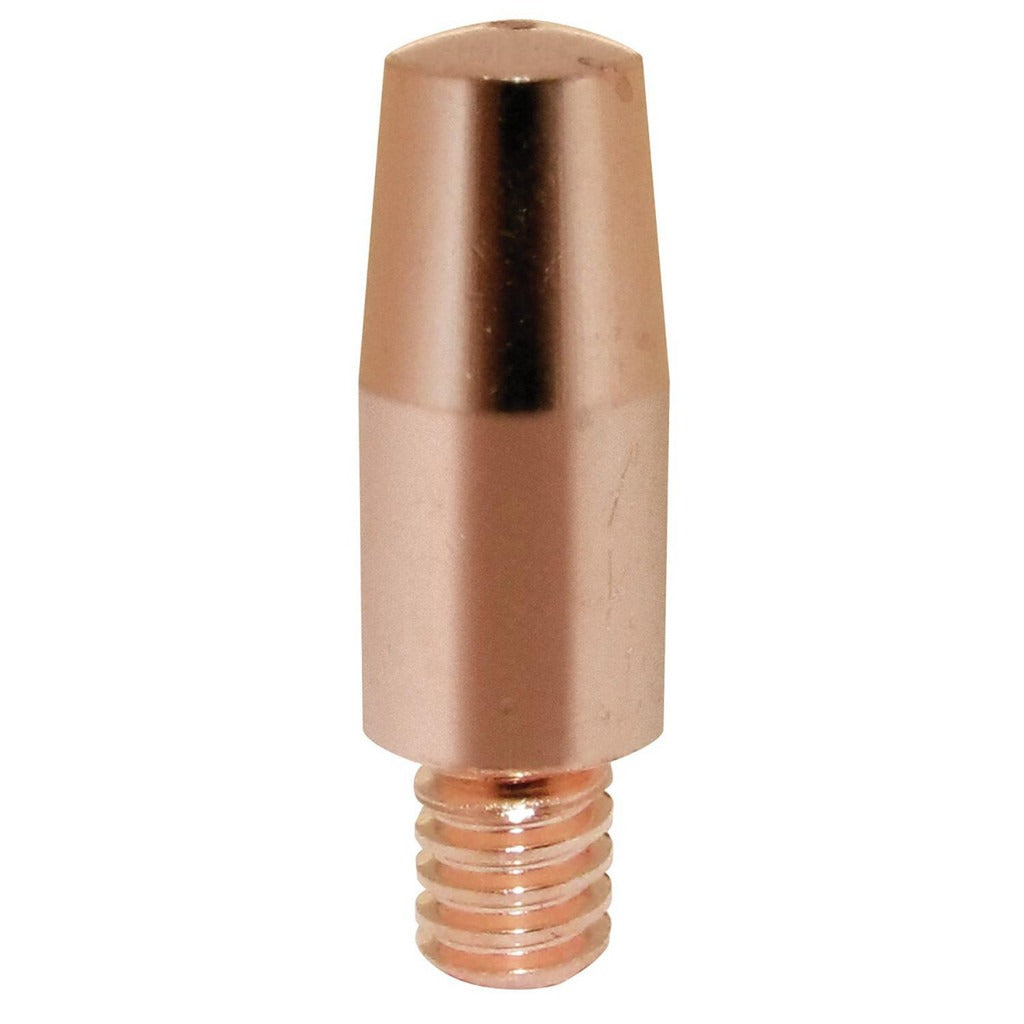

Lincoln Electric KP2744-052 Mig Contact Tip 0.052in Threaded

Product Description

The LINCOLN ELECTRIC KP2744-052 is a threaded MIG welder contact tip designed for wire diameters of 0.052 inches. Built from copper, it features a larger-diameter construction that increases total copper content per tip, which helps disperse heat and keep the tip cooler during extended welding runs. Rated to a maximum of 350 amps, this contact tip suits demanding MIG welding applications where tip longevity and thermal management are priorities. It is sold individually and installed by welding technicians or fabricators performing MIG wire feed welding on industrial or heavy-duty work.

This contact tip is designed for use with Lincoln Electric Magnum PRO MIG gun assemblies. It is suited for applications involving 0.052-inch diameter MIG wire in production welding, fabrication shops, and maintenance welding environments where higher amperage output and extended duty cycles are common. The threaded connection style ensures secure seating in compatible gun necks and simplifies tip changes in the field.

Key Features

• Copper Plus construction — larger diameter increases copper content for improved heat dispersion
• Anti-seize threading designed to prevent the tip from fusing or seizing during high-temperature operation
• Rated for up to 350 amps maximum amperage
• Compatible wire diameter: 0.052 inches
• Threaded connection type for secure, repeatable installation
• Sold individually — no minimum order beyond one unit

Compatibility

Designed for use with Lincoln Electric Magnum PRO MIG gun assemblies and 0.052-inch diameter MIG welding wire.

Installation Notes

Contact tips are installed and replaced by welding technicians or qualified fabricators. Always power down the welder and de-energize the gun before removing or installing a contact tip. Use the appropriate tip wrench or pliers to avoid cross-threading the connection. Do not overtighten — hand-snug plus a quarter turn is typical practice for threaded contact tips; refer to the gun manufacturer guidelines for torque guidance specific to your equipment.
