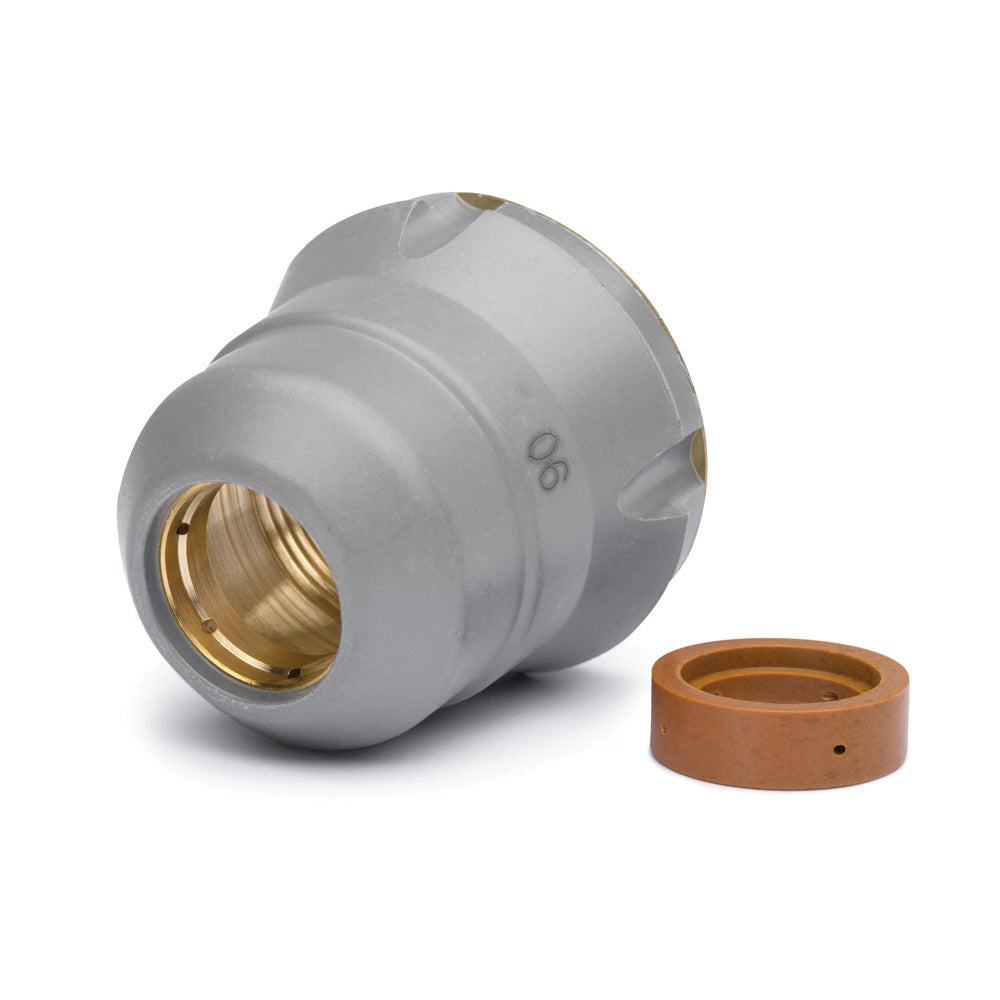

Lincoln Electric KH653 Shield Cup and Diffuser

Product Description

The LINCOLN ELECTRIC KH653 is a replacement shield cup and diffuser assembly designed for plasma cutting torches. This consumable component mounts at the front of the torch head and serves two functions: it directs and shapes the plasma arc, and it protects the nozzle and electrode from spatter and heat exposure during cutting operations. The KH653 is a direct-fit replacement part intended for use by welding and cutting technicians performing routine torch maintenance or restoring cut quality on worn equipment. Weighing just 0.05 pounds, it is a compact, lightweight consumable suited for field and shop use.

This shield cup and diffuser is designed for use with the Lincoln Electric P20 plasma cutter and the Powertorch P20 plasma cutter. It is a standard consumable replacement that technicians swap during routine maintenance intervals or when cut quality degrades due to wear on the existing shield cup or diffuser. Sold individually, it fits workflows where single-unit replacement is preferred over bulk consumable kits.

Key Features

• Combined shield cup and diffuser in a single replacement component
• Designed specifically for the Lincoln Electric P20 and Powertorch P20 plasma cutting torches
• Lightweight at 0.05 pounds for easy handling during torch servicing
• Sold as a single-unit package for precise inventory control
• Direct OEM-style replacement to restore proper arc shielding and gas flow

Compatibility

Designed for use with the Lincoln Electric P20 plasma cutter and the Powertorch P20 plasma cutter.

Installation Notes

Shield cup and diffuser replacement is performed by qualified welding and cutting technicians. Before servicing the torch, disconnect power to the plasma cutter and ensure the torch has cooled completely. Use the appropriate torch wrench or spanner to remove the worn shield cup without cross-threading the replacement. Inspect the nozzle and electrode for wear before reassembly, as consumable components typically wear together and may require simultaneous replacement.
