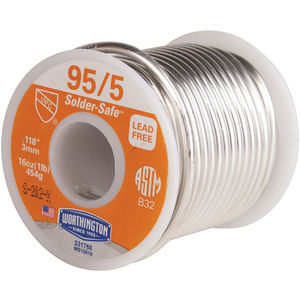

Lincoln Electric 331760 95/5 .118 X 1# Spool X 25 Lb Pkg

Product Description

The LINCOLN ELECTRIC 331760 is a 95/5 lead-free solid wire tin-antimony plumbing solder designed for plumbing and potable water applications. It is a low-temperature solder with a narrow pasty range, requiring close-fitting connections due to its rapid melting characteristics. Primarily used for copper plumbing tubes, it conforms to NSF/ANSI 61 Annex G and NSF/ANSI 372.

• Conforms to the EU Reach & RoHS directive
• Meets NSF/ANSI Standard 372 for drinking water system components - lead content
• Meets NSF/ANSI Standard 61 for drinking water system components - health effects

Product Highlights

Ideal for lead-free installation of small diameter tight fitting connections and general soldering applications. Not recommended for use on brass or HVAC connections.

Product Information

Standard Information

• Brand: LINCOLN ELECTRIC
• Manufacturer Part Number: 331760

Technical Specifications

• Core Type: Solid
• Material: 95% Tin / 5% Antimony
• Size: 0.125"
• Style: Lead Free
• Type: Solder Spool
• Container Type: Spool
• Product Weight: 1.05
• Alloy Grade: Sb5
• Brinell Hardness: 15 HB
• Elongation: 38% in 4"
• Shear Strength: 11000 psi (Cu-to-Cu)
• Tensile Strength: 14200 psi (Cu-to-Cu)
