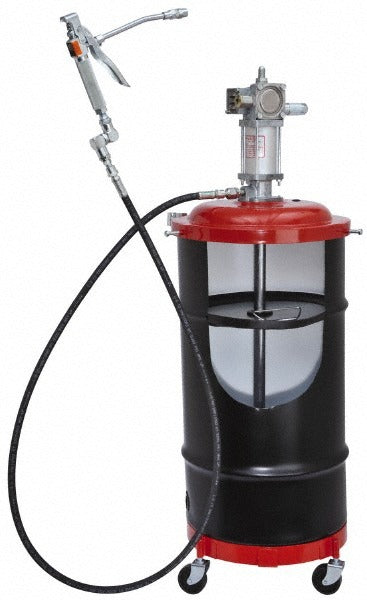

Lincoln 6917 Air-operated Grease Pump 50:1 7500 Psi

Product Description

The LINCOLN 6917 is an air-operated grease pump designed for high-volume lubrication service in demanding shop and fleet maintenance environments. Built from aluminum, it delivers a flow rate of 80 cubic inches per minute at a 50:1 pump ratio, generating a maximum operating pressure of 7500 psi (517 bar). The 1/4 NPT male outlet connects to standard grease line fittings. Weighing 45.3 pounds, the unit is packaged as a complete system that includes a 7-foot hose, band dolly, control valve, follower, and swivel, allowing for immediate deployment out of the box. Licensed HVAC, fleet, and industrial maintenance technicians install this pump type as part of centralized or portable lubrication stations.

The LINCOLN 6917 is suited for use with grease containers in the 40 to 399.9 pound range, with a compatible container size of 120 pounds identified as a standard configuration. It is commonly deployed in automotive shops, fleet garages, heavy equipment service bays, and industrial facilities where bulk grease dispensing is required. The included band dolly and follower allow the pump to mount directly to standard drum or pail containers, making it a self-contained solution for stationary or mobile lube bays.

Key Features

• 50:1 pump ratio delivers up to 7500 psi maximum operating pressure
• 80 cubic inches per minute flow rate supports high-volume grease dispensing
• Aluminum pump body provides corrosion resistance and reduced weight
• 1/4 NPT male outlet connects to standard grease distribution lines
• Compatible with containers from 40 to 399.9 pounds capacity
• Includes 7 ft hose (75084), band dolly (84192), control valve (740), follower (274327), and swivel (81387)

Compatibility

Compatible with grease containers ranging from 40 to 399.9 pounds, with a standard configuration for 120-pound containers. Included accessories are specified as LINCOLN components: 7 ft Hose (75084), Band Dolly (84192), Control Valve (740), Follower (274327), and Swivel (81387).

Installation Notes

Installation is typically performed by industrial maintenance technicians or lubrication equipment specialists. Before mounting or servicing the pump, relieve all air pressure and depressurize the grease line. Secure the band dolly to the container before connecting the air supply line to avoid uncontrolled discharge. Follow all applicable safety and equipment standards for compressed-air-operated dispensing systems when routing air supply and grease lines.
