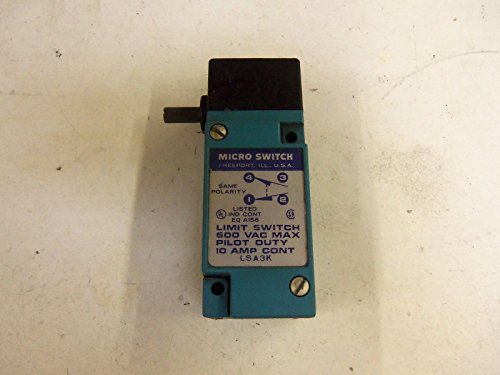

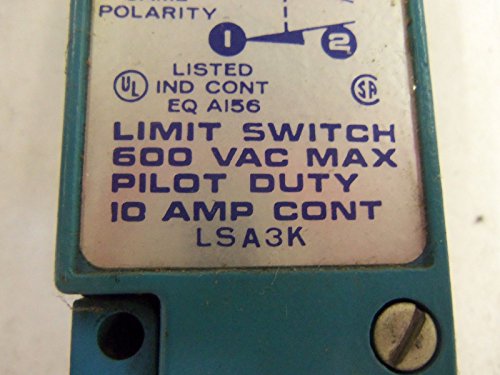

Honeywell LSA3K LIMIT SWITCH 600 VAC 10 A

Product Description

The Honeywell LSA3K is a heavy-duty limit switch designed for various industrial applications. This switch operates at a maximum voltage of six hundred VAC and has a ten amp current rating. It features a side rotary lever actuator and has a compact size suitable for constrained spaces.

• Heavy-duty construction for reliable performance
• NEMA rated for various environmental applications
• Self-lifting pressure plate terminals for easier wiring

Product Highlights

Built to withstand harsh conditions, this limit switch is perfect for machine tools, material handling, and packaging equipment.

Product Information

Standard Information

• Catalog Number: LSA3K
• Manufacturer: Honeywell
• Item Type: Limit Switches
• Brand: Honeywell
• Sub Brand: Microswitch
• UPC: 78454927300

Technical Specifications

• Voltage Rating: 600 VAC, 250 VDC
• Current Rating: 10 A
• Number of Poles: 1
• Contact Configuration: 1NO-1NC, SPDT
• Actuator Type: Side Rotary Lever
• Enclosure Rating: NEMA 1/3/4/4X/6/6P/12/13
• Size: 41.2 mm L x 44.5 mm W x 74.9 mm H
• Operating Temperature: -12 to 121 degrees Celsius
• Material: Die Cast Zinc
• Application: Machine tools, material handling, packaging, presses, pulp and paper, welding, PLC interface
