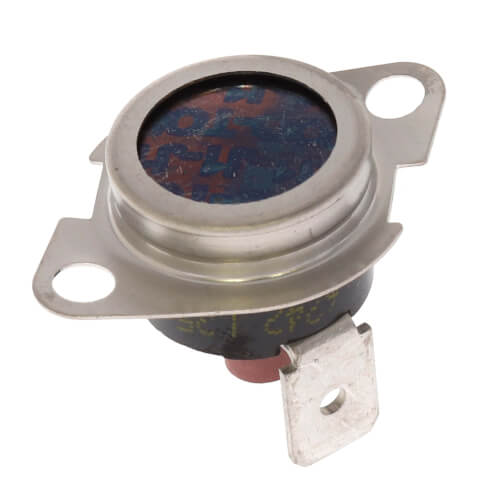

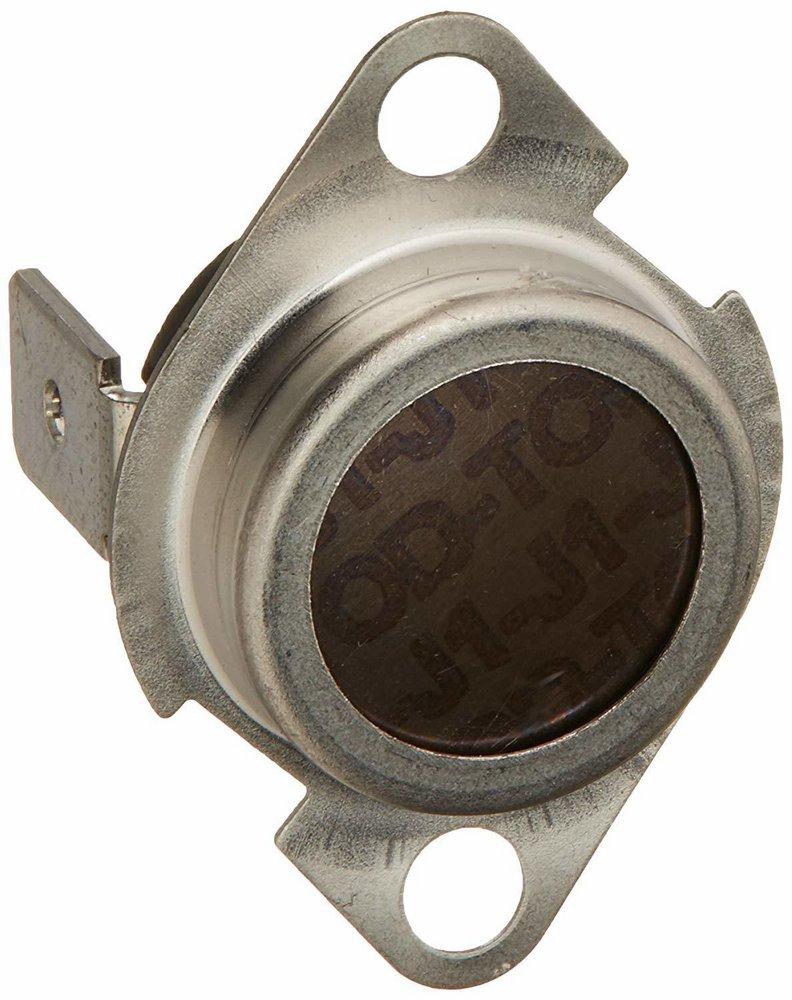

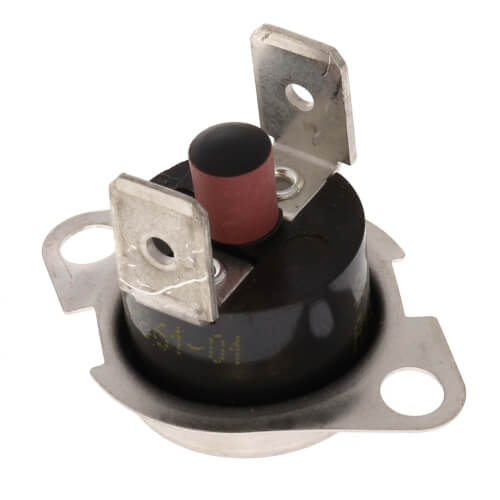

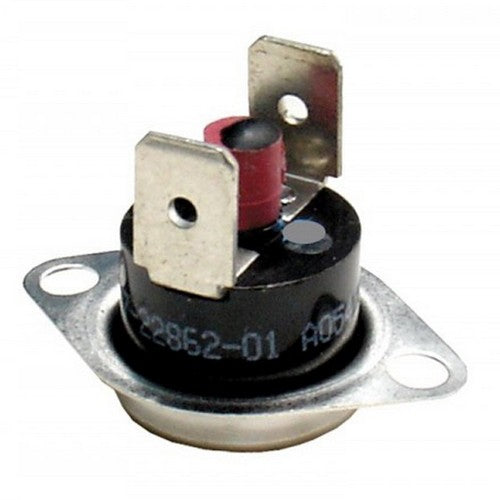

Rheem 47-22861-01 10, 15A 120/230V High/Low Limit Switch

Product Description

The Rheem 47-22861-01 High/Low Limit Switch is a critical component in HVAC systems, providing essential safety and operational functions. This 10, 15A 120/230V switch is engineered to monitor and control the temperature within the air plenum, ensuring efficient system performance and prevention of overheating.

• Automatic shutdown at critical temperatures
• Manual reset for quick reactivation
• Reliable operation in demanding environments

Product Highlights

The High/Low Limit Switch is primarily used to switch the blower fan on or off when the air plenum reaches a pre-set temperature. Its enclosed disc face and normally closed orientation provide stability and reliability in varied conditions, making it suitable for industrial machinery control systems and safety interlock mechanisms.

Product Information

Standard Information

• Brand: Rheem
• MPN: 47-22861-01

Technical Specifications

• Voltage Rating: 120/230VAC
• Ampere Rating: 15A/10A
• Connection: 1/4 inch Quick Connect
• Size: 5/32 inch D
• Open Temperature: 350 degrees F
• Tolerance Open Temperature: +/- 16 degrees F
• Close Temperature: -31 degrees F Auto
• Tolerance Close Temperature: +/-16 degrees F
• Minimum Manual Reset Temperature: 210 degrees F Operating Temp.
