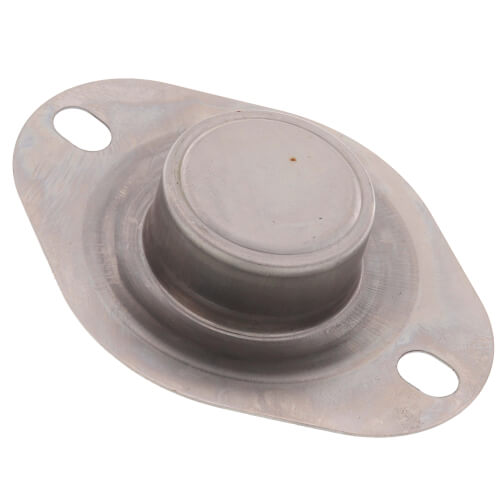

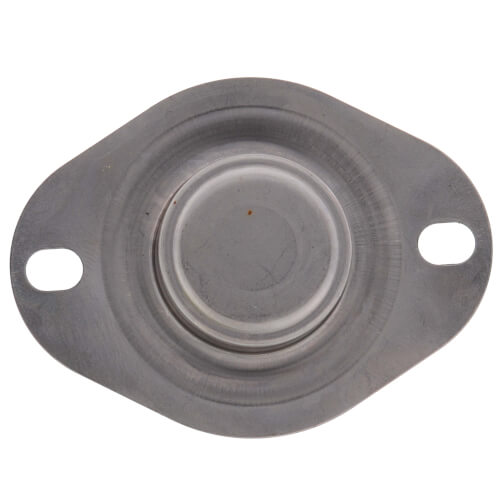

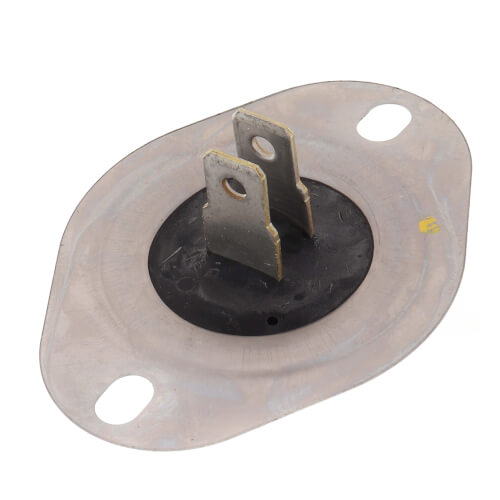

Rheem 470015 44T 1A 26V High/Low Limit Switch

Product Description

The Rheem 470015 44T 1A 26V High/Low Limit Switch is a critical component in HVAC systems. Designed for flanged airstream applications, it ensures the safety and functionality of heating and cooling equipment.

• Auto-reset functionality
• Durable construction
• Low voltage operation

Product Highlights

This limit switch is built to perform reliably in industrial environments. With a flanged airstream design and auto-reset feature, it guarantees minimal downtime and enhanced safety.

Product Information

Standard Information

• Product Name: 44T 1A 26V High/Low Limit Switch
• Brand: Rheem
• MPN: 470015

Technical Specifications

• Voltage Rating: 26VAC
• Ampere Rating: 1A
• No. Of Poles: 1
• Type: 44T Series
• Action: SPST
• Connection: 1/4 inch Quick Connect
• Contact Configuration: NC
• Mounting: 3/8 inch Flanged Airstream
• Open Temperature: 120 degrees Fahrenheit
• Close Temperature: 100 degrees Fahrenheit
• For Use With: RRKA, RRMA, RRNA-A Gas Heat/Electric Cooling Package Units
