White-Rodgers 3L02-200 Snap Disc T-Stat Limit 200

Product Description

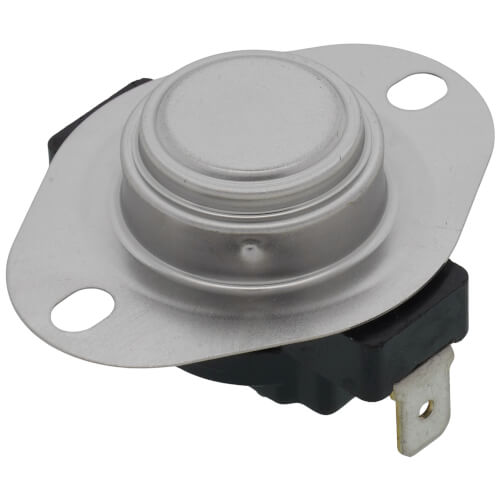

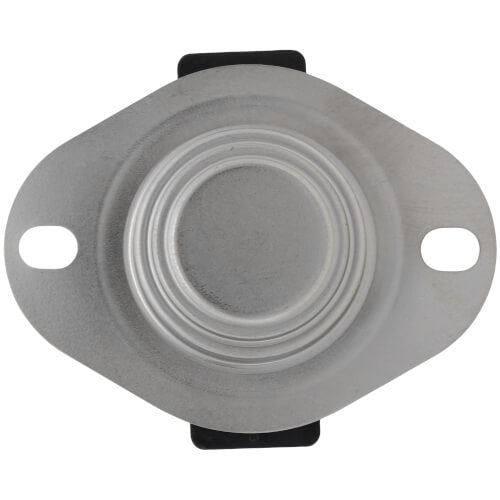

The WHITE-RODGERS 3L02-200 is a snap disc limit control thermostat designed for regulation of fan, blower, or high limit safety control. It features a 3/4 inch disc and SPST switch type that closes on rise. The thermostat is suitable for appliance and HVAC applications.

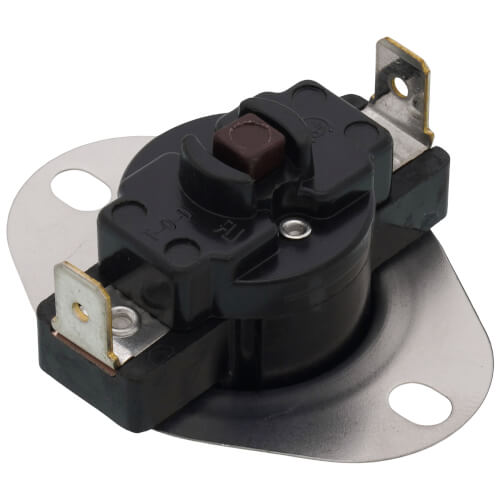

• Manual Reset
• 1/4 Inch Quick-Connect Terminal
• Aluminum Disc Cup

Product Highlights

This snap disc limit control thermostat has a temperature rating of 200 deg F (Cut-Out) and is made with an aluminum disc cup and stainless steel mounting bracket.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3L02-200
• Country of Origin: United States

Technical Specifications

• Country of Origin (subject to change): United States
• Item [Specifications]: Snap Disc Limit Control, 200 deg. F
• Catalog Number: 3L02-200
• Customer UPC: 78671000203
• Category: Controls, Control Panels & Modules
• Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
• Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
• Series/Model: 3L
• Size: 3/4 Inch Disc
• Switch Type: SPST, Close on Rise
• Temperature Rating: Manual Reset (Cut-In), 200 Deg F (Cut-Out)
• UNSPSC Code: 41112209
• UPC: 786710002038
• Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
• Dimensions: 1.23 in L x 1.32 in W x 0.37 in H
• Contact Form: SPST
• Mounting Type: Airstream
• Inductive Rating: 10/60 A at 120 VAC, 0.5/30 A at 240 VAC
• Resistive Rating: 25 A at 120/240 VAC
• Pilot Duty Rating: 125 VA
• Electrical Connections: Quick-Connect
• Opens: 200 Deg F. (93 Deg C.)
• Close: Manual Reset
• OEM: White-Rodgers
• OEM #: 3L02-200
