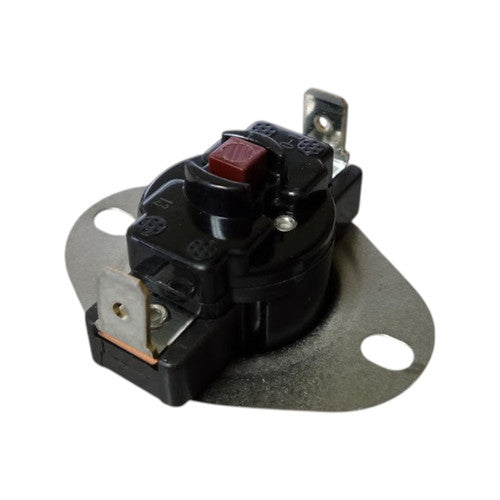

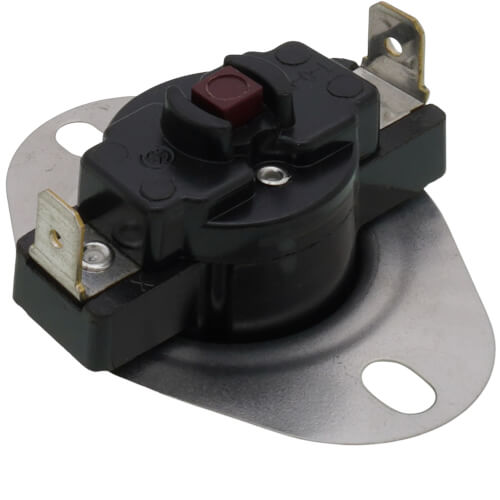

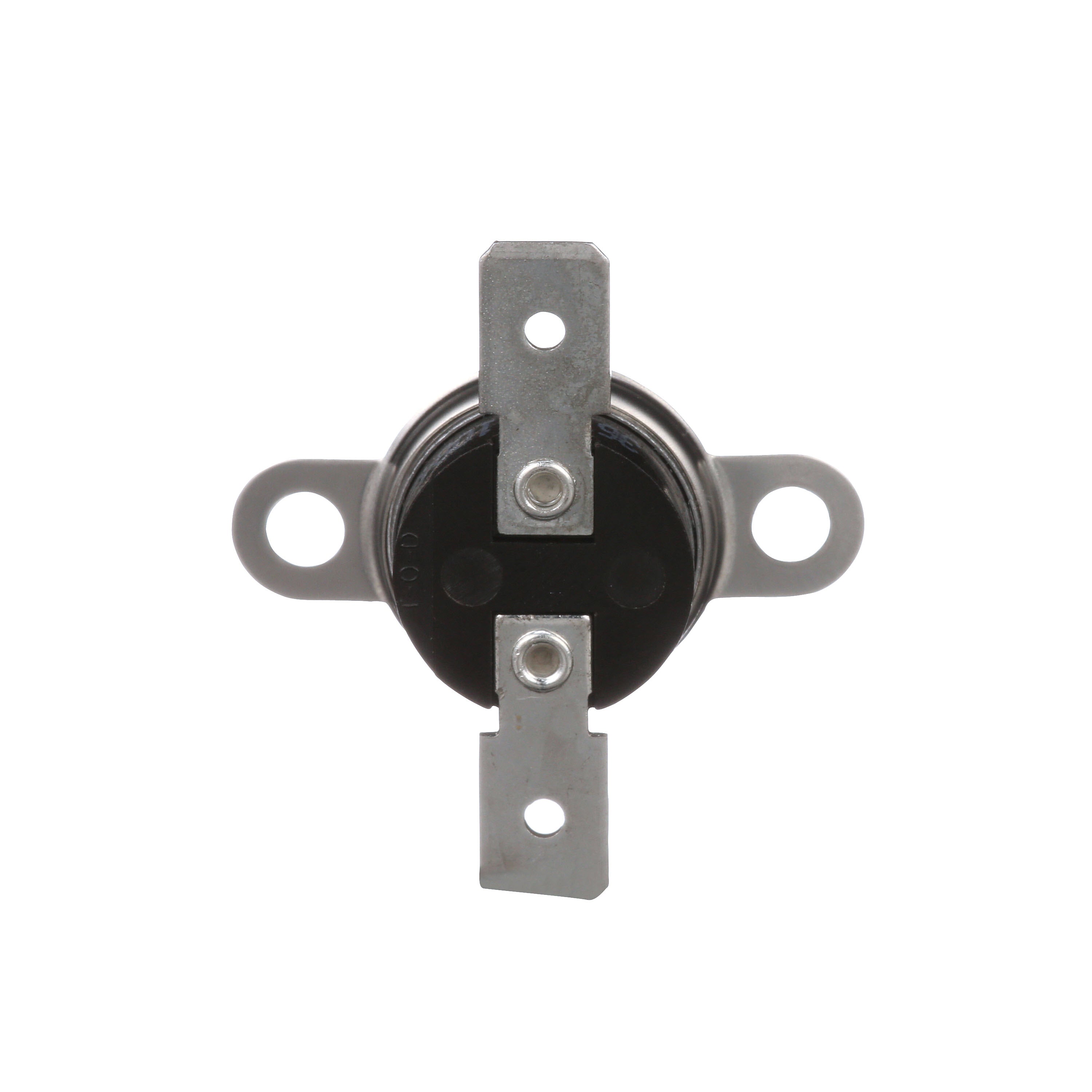

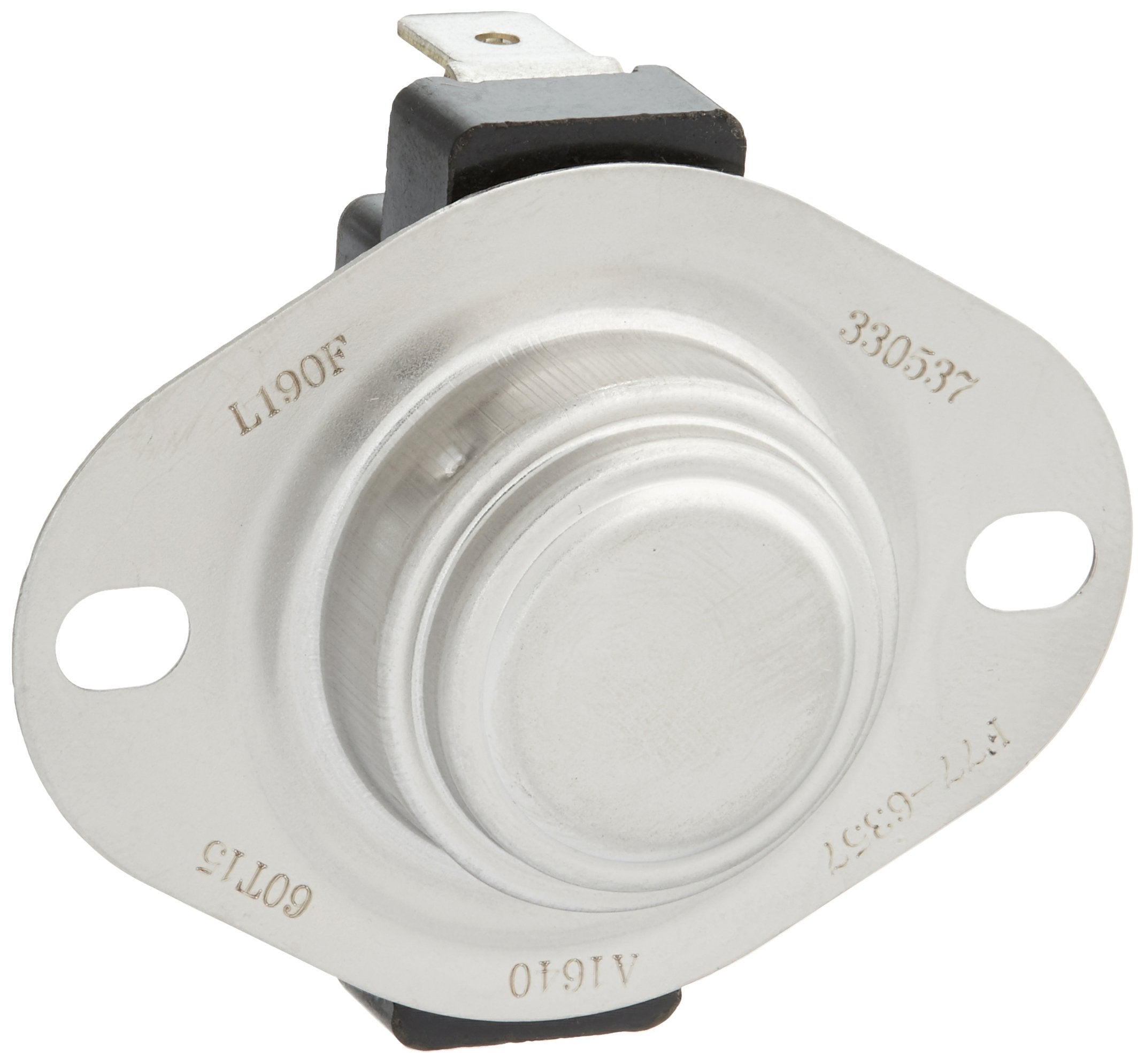

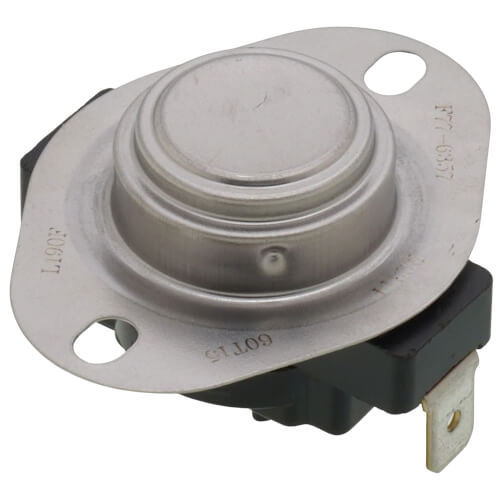

White-Rodgers 3L02-190 Limit Disc, 190F Man Reset

Product Description

The WHITE-RODGERS 3L02-190 limit disc is designed for high limit safety regulation. This snap disc limit control features manual reset and is an open-on-rise control. It is suitable for appliance and HVAC applications, specifically for the regulation of fan, blower, or high limit safety control. The cut-out temperature is 190 degrees F.

• Manual reset
• Opens on temperature rise
• 1/4 Inch Quick-Connect Terminal

Product Highlights

Snap disc limit control with manual reset and a cut-out temperature of 190 degrees F. Designed for regulation of fan, blower, or high limit safety control.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3L02-190
• Country of Origin: United States

Technical Specifications

• Item Model Number: 3L02-190
• Type: Snap Disc, Manual Reset
• Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
• Current Rating: 10 Amp at 120 Volt AC/5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC/21.6 Amp at 277 Volt AC (Resistive)
• Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
• Switch Type: SPST, Open on Rise
• Temperature Rating: 190 Deg F (Cut-Out)
• Additional Information: Snap Disc Size 3/4 Inch; Terminal Type 1/4 Inch Quick-Connect; Material Aluminum (Disc Cup), Stainless Steel (Mounting Bracket); Therm-O-Disc Style 60T15; Therm-O-Disc Type 330537; Used On Regulation of Fan/Blower/High Limit Safety Control; For Appliance and HVAC
• Manufacturer Part Number: 3L02-190
• Series/Model: 3L02
• Manufacturer Name: White-Rodgers
• Cut-Out Temperature: 190°F
• Switch Action: Open on Rise
• Features: Fixed Temperature
• Opens: 190 Deg F. (88 Deg C.)
• Close: Manual Reset
