LiftMaster CAPXLV2 Smart Video Intercom - L

Product Description

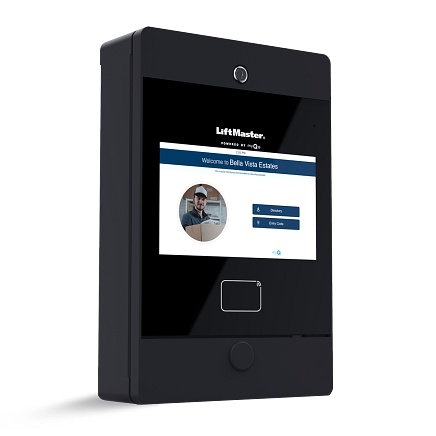

The LiftMaster CAPXLV2 Smart Video Intercom - L is suitable for high-rise buildings and gated communities. It is ideal for multi-family settings and comes equipped with four Wiegand Inputs, four OSDP Readers, and eight Relay Outputs for managing access points like doors and gates. The unit features a high-definition touchscreen display that can be mounted in various ways including surface, flush, or pedestal options. The device connects to the cloud via either Wi-Fi or Ethernet.

• Designed for multi-family residential buildings and gated entries.
• Supports a capacity of up to fifty thousand local users.
• Offers excellent connectivity options including Wi-Fi and Ethernet.

Product Highlights

Efficiently manage access with advanced features and reliable connectivity options.

Product Information

Standard Information

• Outdoor Rating: IP54 and IK07
• Smartphone Control: Requires myQ Community App subscription

Technical Specifications

• Local User Capacity: 50000
• Connectivity: Ethernet and Wi-Fi
• Display Type: Ten inch 720P high definition touchscreen
• Operating Temperature: Negative twenty degrees Fahrenheit to one hundred thirty degrees Fahrenheit
• Power Supply: 24VDC, 3A, 72W or POE 36-55VDC, 60W
• Video Resolution: 1080p, 25 FPS
• Field of View: 135 degrees
• Warranty: 2 Years Operator Warranty
