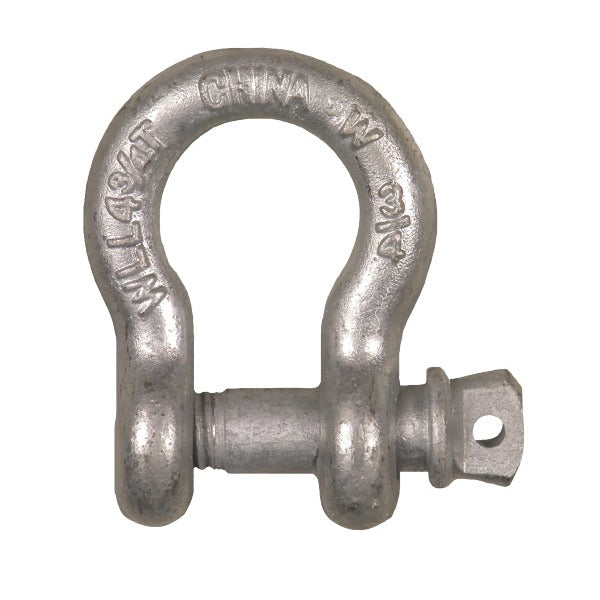

Liftall 34spasi Screw Pin Shackle 4.75 Ton 3/4 Inch

Product Description

The LIFTALL 34spasi is a galvanized screw pin anchor shackle rated for 4.75 tons working load. The body is constructed from carbon steel and the pin from alloy steel, providing a durable connection point for rigging, lifting, and load-securing applications. The 3/4-inch body size and 7/8-inch pin diameter make this shackle suitable for medium-duty rigging tasks where a secure, removable pin connection is required. The galvanized finish provides corrosion resistance for use in outdoor, marine, or wet environments. Riggers and lifting professionals install this type of shackle as a primary connecting link between slings, hooks, and load points.

This screw pin anchor shackle is used in construction, industrial rigging, and general lifting operations where loads must be connected to wire rope slings, chain assemblies, or synthetic web slings. The screw pin design allows for straightforward installation and removal without specialized tooling, making it well suited for applications where the shackle is frequently repositioned. Typical use scenarios include overhead lifting, tie-down rigging, and load-securing on job sites and industrial facilities.

Key Features

• 4.75-ton working load limit for medium-duty rigging applications
• Carbon steel body with alloy steel screw pin for strength and durability
• Galvanized finish for corrosion resistance in outdoor and wet environments
• 3/4-inch body size with 7/8-inch pin diameter
• 5-inch overall length for compatibility with standard rigging hardware
• Screw pin design allows tool-free installation and removal

Compatibility

Designed as a standard screw pin anchor shackle for use with wire rope slings, chain assemblies, and synthetic web slings rated for comparable working loads in general rigging and lifting applications.

Installation Notes

Installation and use of this shackle should be performed by a qualified rigger familiar with ASME B30.26 rigging hardware standards. Always inspect the shackle body and pin for deformation, cracks, or corrosion before each use, and never exceed the rated working load limit. Ensure the screw pin is fully seated and moused with wire when used in applications where the pin could back out under load. Never side-load a shackle beyond its designed orientation.
