Lift-all EN1802TX3 Endless Polyester Web Sling 3 Ft

Product Description

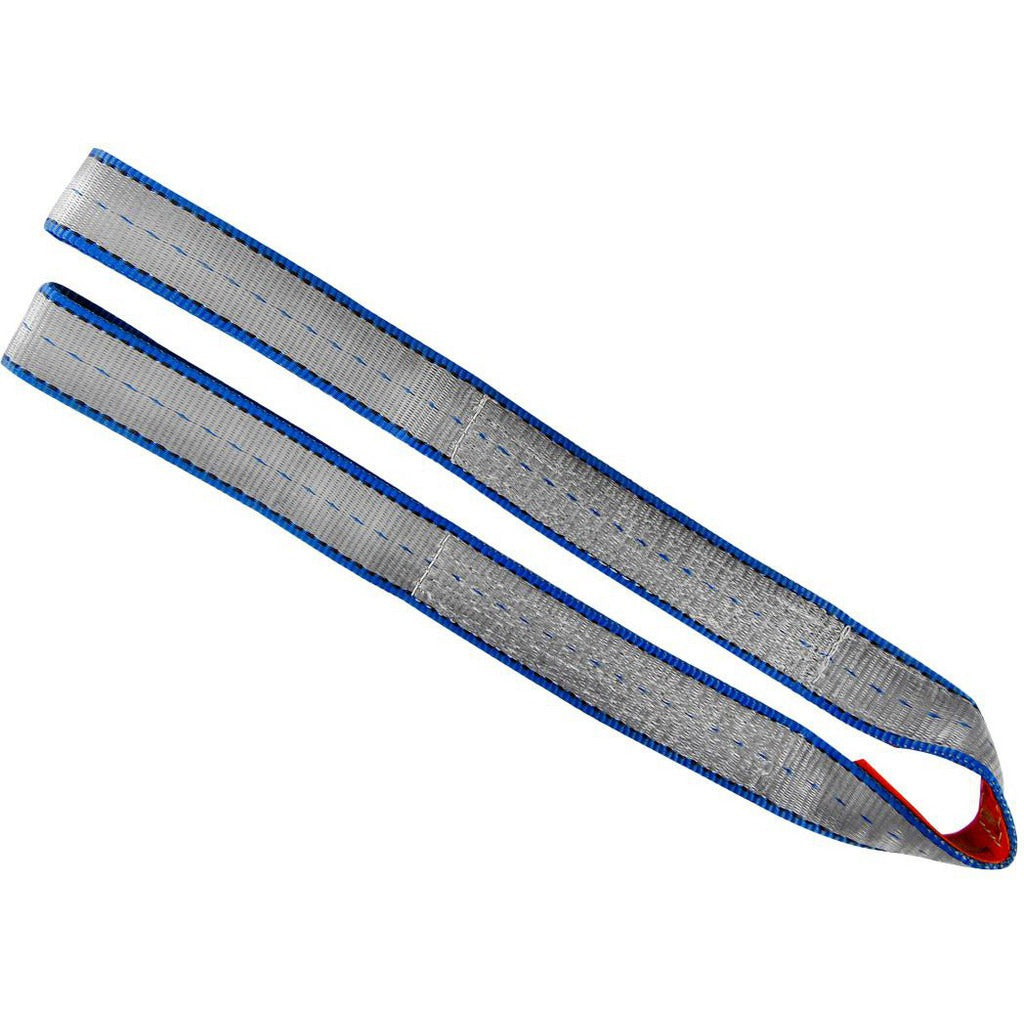

The LIFT-ALL EN1802TX3 is a Type 5 endless polyester web sling designed for overhead lifting, rigging, and material handling applications. Measuring 2 inches wide and 3 feet long, this single-ply sling has a vertical lift capacity of 6,400 pounds (3.20 tons) and a choker capacity of 5,000 pounds. The twisted eye configuration allows the sling to wrap and seat properly around a hook in choker and vertical hitches. Constructed from polyester webbing, it resists abrasion and is rated for use in environments up to 200 degrees F. Rigging professionals and industrial maintenance crews are the primary installers.

This endless sling is suited for vertical, choker, and basket hitch configurations in industrial, manufacturing, construction, and warehouse environments. Its endless loop design eliminates hardware and keeps the sling seated on the load during the lift. The polyester material is selected for applications where minimal stretch and resistance to common industrial soiling are required. At 1 pound, the sling is lightweight enough for frequent repositioning on the job. It ships as a single unit with a minimum order quantity of one.

Key Features

• Type 5 endless loop construction eliminates hooks and hardware at contact points
• 6,400 lb vertical capacity and 5,000 lb choker capacity in a 2-inch-wide, single-ply body
• Twisted eye design seats securely on standard rigging hooks
• Polyester webbing rated to 200 degrees F service temperature
• Abrasion-resistant construction for repeated use on rough or irregular loads
• Meets OSHA 1910.184, ASME B30.9, and WSTDA standards

Compatibility

Designed as an OEM-style endless web sling for use with standard overhead lifting hooks, hoists, and cranes wherever OSHA 1910.184 and ASME B30.9 compliant rigging hardware is specified.

Installation Notes

Rigging and installation should be performed by a qualified rigger familiar with ASME B30.9 and OSHA 1910.184 regulations. Inspect the sling for cuts, abrasion, discoloration, or distortion before each use and remove from service if any damage is found. Never exceed the rated capacity for the selected hitch configuration. Ensure the sling is properly seated in the hook throat and that the load is balanced before lifting.
