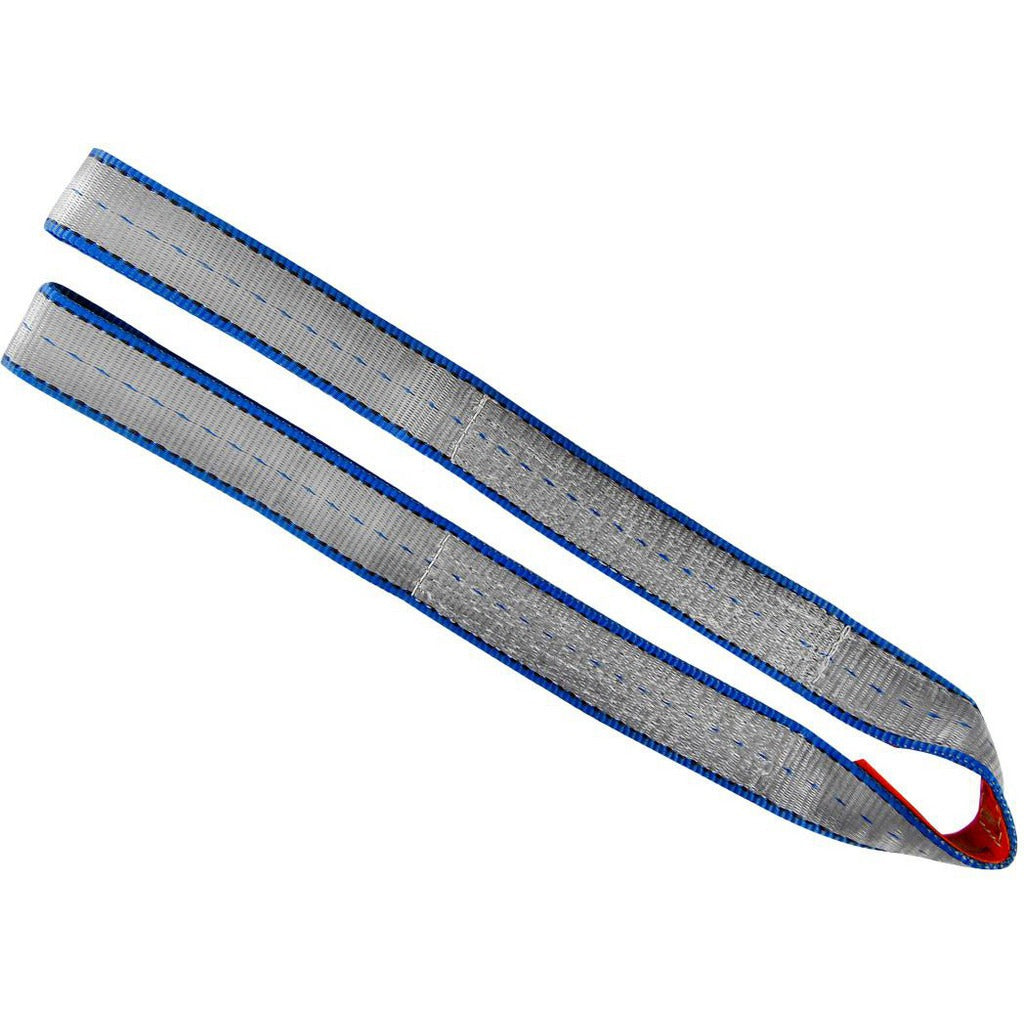

Lift-all EE2804TFX16 Polyester Eye Eye Sling 4in 16ft

Product Description

The LIFT-ALL EE2804TFX16 is a Type 3 flat eye-and-eye polyester web sling engineered for single-leg vertical and choker lifting applications. Measuring 4 inches wide and 16 feet long, this 2-ply flat web sling carries a vertical capacity of 11,500 pounds and a choker capacity of 9,200 pounds. Constructed from polyester webbing with flat tapered eyes on both ends, it is designed for use by riggers and material handlers in industrial, construction, and manufacturing environments where load protection and abrasion resistance are required.

This sling suits a wide range of single-leg rigging scenarios including overhead lifting with cranes and hoists in fabrication shops, warehouses, and job sites. The flat web construction helps distribute load across a broader surface area, reducing the risk of damage to finished or delicate materials. It is well suited for applications where tag lines or dedicated vertical picks are standard practice. The gray and blue color coding aids in capacity identification on busy job sites.

Key Features

• Type 3 flat eye-and-eye configuration with flat and tapered eyes on both ends
• 2-ply polyester construction rated at 11,500 lb vertical and 9,200 lb choker capacity
• 4-inch-wide flat web body for broad load contact and surface protection
• Abrasion-resistant polyester material rated for use up to 200 degrees F
• Meets OSHA 1910.184, ASME B30.9, and WSTDA standards
• Gray and blue color coding for quick capacity identification

Compatibility

Designed as a standard Type 3 flat eye-and-eye web sling for single-leg vertical and choker rigging setups. Suitable for use with crane hooks, hoist hooks, and rigging hardware sized for a 4-inch web eye opening.

Installation Notes

Rigging and overhead lifting operations must be performed by qualified riggers following OSHA 1910.184 and ASME B30.9 requirements. Inspect the sling before each use for cuts, abrasion, heat damage, or chemical degradation and remove from service if any defects are found. Never exceed the rated capacity for the hitch type in use, and do not use this sling above 200 degrees F. Ensure the load is balanced and the sling seats properly in the hook throat before lifting.
