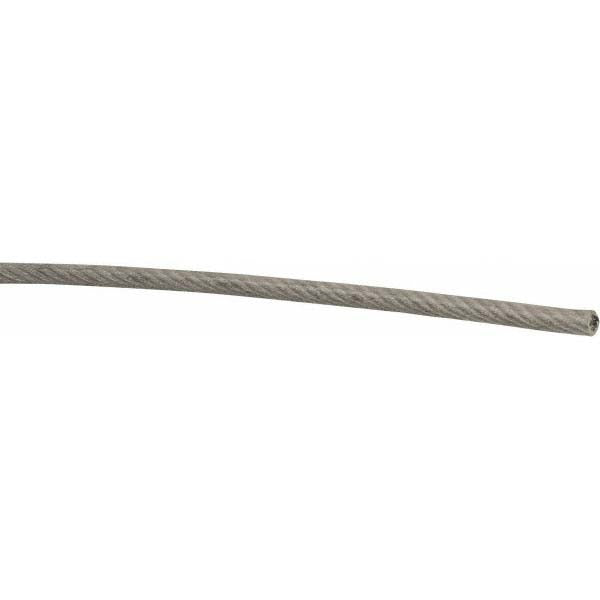

Lift-all 18316250719 Aircraft Cable 3/16 in 7x19 500 Ft

Product Description

The LIFT-ALL 18316250719 is a vinyl-coated aircraft cable wire built for rigging, lifting, and general load-securing applications across trade and industrial environments. The cable features a 1/8 inch bare steel diameter with a vinyl coating that brings the overall outside diameter to 3/16 inch. It is constructed with a 7 x 19 strand core configuration, which delivers flexibility combined with high tensile performance. Rated at 2,000 pounds breaking strength, this galvanized steel cable is sold in 1-foot increments with a minimum order quantity of 100 feet from a 500-foot total coil. OSHA-compliant construction makes it suitable for regulated work sites.

This aircraft cable is used across a wide range of applications including light rigging, mechanical assemblies, safety restraint lines, overhead lifting supports, and general wire rope work in commercial and industrial settings. The vinyl coating protects the underlying galvanized steel from moisture and surface abrasion, making it a practical choice for both indoor mechanical environments and outdoor installations where corrosion resistance is needed. Rigging professionals, millwrights, and general contractors are the primary installers of this cable type.

Key Features

• 2,000 pound breaking strength for light-to-medium load applications
• 7 x 19 strand core construction provides flexibility and resistance to fatigue
• Galvanized steel core resists corrosion under standard environmental conditions
• Vinyl outer coating adds abrasion protection and raises OD to 3/16 inch
• OSHA-compliant construction suitable for regulated job sites
• Sold in 1-foot increments from a 500-foot coil, minimum order 100 feet

Compatibility

Designed as a general-purpose replacement and new-installation aircraft cable suitable for standard 3/16 inch coated cable fittings, swage terminals, and wire rope clips rated for 7 x 19 strand configuration.

Installation Notes

Installation should be performed by a qualified rigger or mechanic familiar with wire rope and cable systems. All terminations, swage fittings, and end hardware must be rated for the cable diameter and breaking strength before applying load. Follow OSHA rigging standards and applicable site safety requirements when using this cable in lifting or restraint applications. Never exceed the working load limit, which is a fraction of the published breaking strength as defined by the applicable safety factor for the application.
