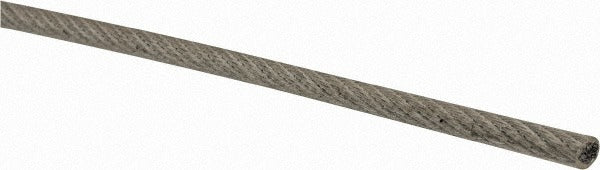

Lift-all 11633250077 Coated Aircraft Cable Wire 3/32in

Product Description

The LIFT-ALL 11633250077 is a vinyl-coated aircraft cable wire constructed from galvanized steel with a 7x7 strand core configuration. The bare wire diameter measures 1/16 inches, and the vinyl coating brings the overall outside diameter to 3/32 inches. With a rated breaking strength of 480 pounds, this cable is suited for light-duty rigging, control line, and general industrial wire rope applications. It is sold in 1-foot increments from a 500-foot coil and carries a minimum order quantity of 100 feet. Licensed riggers, maintenance technicians, and industrial tradespeople commonly specify this cable for applications requiring a coated, flexible wire rope solution.

This aircraft cable is appropriate for light industrial, commercial, and maintenance applications where a small-diameter, coated wire rope is required. Typical uses include control cables, guard wire installations, light-duty lifting assists, and general utility rigging tasks. The vinyl coating provides abrasion resistance and a degree of corrosion protection beyond the base galvanized finish. It is not intended for overhead lifting applications governed by ASME B30 or OSHA rigging standards without verified rigging hardware and load calculations performed by a qualified rigger.

Key Features

• 480-pound breaking strength suitable for light-duty rigging and control line use
• 7x7 strand core construction provides flexibility and resistance to fatigue from repeated bending
• Galvanized steel base wire offers corrosion resistance in moderate environments
• Vinyl outer coating adds abrasion protection and increases overall diameter from 1/16 inches to 3/32 inches
• Sold by the foot from a 500-foot coil with a 100-foot minimum order quantity

Compatibility

Designed as a general-purpose coated aircraft cable suitable for light industrial, commercial maintenance, and utility rigging applications requiring a 1/16-inch bare diameter, 7x7 strand, vinyl-coated wire rope.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician familiar with wire rope handling and applicable ASME or OSHA rigging guidelines. Use proper wire rope clips, swage fittings, or thimbles rated for the cable diameter — never use hardware sized for a different wire rope diameter. Inspect cut ends for fraying before installation and apply appropriate end treatment. Always verify that the intended load falls well within the working load limit derived from the cable breaking strength using an appropriate safety factor for the application.
