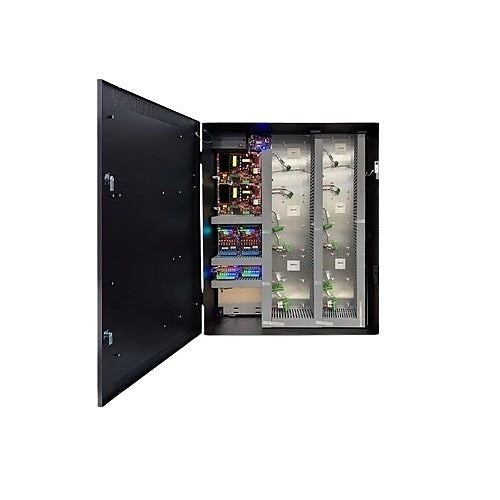

Lifesafety Power FPO75-D8PE4H Access Power Supply 75W

Product Description

The LIFESAFETY POWER FPO75-D8PE4H is a 75-watt access control power supply designed to deliver regulated DC power in low-voltage security and access control installations. It provides 6 amps at 12 volts or 3 amps at 24 volts and features 8 auxiliary outputs with PTC (positive temperature coefficient) overcurrent protection. The E4H designation indicates an enclosure configuration suited to organized, multi-output deployments. This unit is installed by licensed low-voltage and security systems technicians in commercial and light-industrial access control applications.

This power supply is suited for powering door controllers, electromagnetic locks, electric strikes, readers, and other low-voltage access control devices. With 8 individually PTC-protected auxiliary outputs, technicians can distribute power across multiple controlled points within a single enclosure. The dual-voltage output capability — 12 volts or 24 volts — makes it adaptable to a range of field devices without a secondary transformer or power source. Typical installations include multi-door access control panels in commercial buildings, office suites, and facilities requiring centralized power distribution.

Key Features

• 75-watt total output capacity supports multi-device installations
• Selectable output: 6A at 12 volts or 3A at 24 volts
• 8 auxiliary outputs for distributed power to individual access control devices
• PTC overcurrent protection on outputs reduces nuisance trips and eliminates fuse replacement
• E4H enclosure configuration for organized panel-style deployment

Compatibility

Designed as an OEM-style replacement or new-installation power supply for commercial low-voltage access control systems requiring a 75-watt, multi-output DC power source with PTC-protected auxiliary circuits.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with applicable local codes and NFPA 70 (NEC) requirements for low-voltage power supply circuits. Disconnect and lock out all AC input power before wiring outputs to field devices. Verify the selected output voltage matches the voltage rating of all connected devices before energizing the unit. Do not exceed the rated amperage across combined auxiliary outputs.
