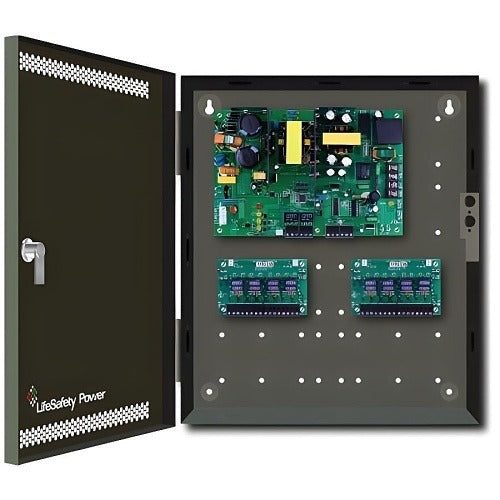

Lifesafety Power FPO250-2D8E1 Intrusion Power Supply 250W

Product Description

The LIFESAFETY POWER FPO250-2D8E1 is a high-capacity intrusion power supply designed to deliver reliable, regulated power to access control and security systems. Rated at 250 watts total output, the unit provides 20 amps at 12 volts and 10 amps at 24 volts simultaneously, giving installers the flexibility to power mixed-voltage field devices from a single supply. The E1 designation indicates an expanded auxiliary output configuration, with 16 auxiliary outputs available for distribution to locks, sensors, readers, and other low-voltage security devices. This unit is specified and installed by licensed security and low-voltage contractors.

The FPO250-2D8E1 is suited for commercial and light industrial intrusion and access control installations where a central, high-output power distribution point is required. The 16 auxiliary outputs allow installers to run multiple supervised circuits from one enclosure, reducing wiring complexity on larger panel deployments. It fits into typical rack or wall-mount enclosure scenarios common in security closets and IDF rooms.

Key Features

• 250-watt total rated output capacity for demanding multi-device installations
• Dual-voltage output: 20 amps at 12 volts and 10 amps at 24 volts
• 16 auxiliary outputs for distributed low-voltage device power
• E1 configuration supports expanded field wiring requirements
• Sold as a single unit (EA), suitable for direct panel integration

Compatibility

Designed as an OEM-style replacement or new-install power supply for commercial intrusion and access control panel systems requiring dual 12-volt and 24-volt regulated output with multiple auxiliary distribution points.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems contractor in accordance with applicable local codes and NFPA 731 guidelines. De-energize all connected panel circuits and verify the main supply is off before wiring or replacing this unit. Ensure the enclosure is properly grounded and that auxiliary output loads do not exceed the rated amperage per output. Do not exceed the total 250-watt output rating across combined 12-volt and 24-volt loads.
