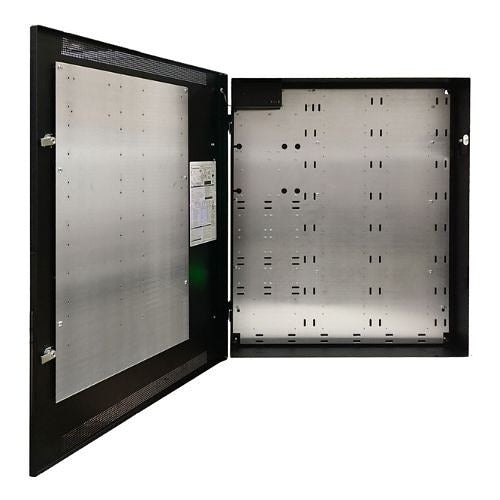

Lifesafety Power E8M3-BOXED Mercury Backplate Quick Guide

Product Description

The LIFESAFETY POWER E8M3-BOXED is a quick guide packaged with a Mercury backplate, designed to support installation and configuration of Mercury-series access power supply units. This reference document and backplate assembly provides installers with the layout, wiring reference, and mounting orientation needed to bring a Mercury access power supply into service. Security and low-voltage access control technicians rely on this type of guide during initial setup to ensure correct terminal assignments and enclosure integration. Sold individually, this item is intended for use in access control power distribution applications.

This item is applicable to access power supply installations in commercial and light industrial environments where Mercury-series enclosures are deployed. It is suited for integration into door access control systems requiring dedicated power distribution. Installers working on multi-door access control panels will find this backplate and guide combination useful during enclosure assembly and field commissioning.

Key Features

• Includes quick guide for Mercury backplate installation reference
• Sold as an individual unit (each), making it suitable for single-enclosure service calls
• Supports Mercury-series access power supply enclosure configuration
• Designed for use within access control power supply applications

Compatibility

Designed as a reference and backplate component for Mercury-series access power supply enclosures in access control power distribution systems.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician familiar with access control power supply wiring practices. De-energize all associated power supplies and disconnect input power before working inside any enclosure. Follow applicable local codes and manufacturer documentation for enclosure mounting and wiring termination. Do not apply power to the system until all connections have been verified against the quick guide reference.
