LID CORPORATION RR123 Digital Magnetic Sensor

Product Description

The LID CORPORATION RR123 is a digital magnetic sensor that uses TMR technology. This sensor has an operate sensitivity of seven G. It operates between one point zero volts and three point six volts and has an average current drain of twenty nanoamperes. Temperature ratings range from negative forty to positive eighty-five degrees Celsius.

• Operates with a sensitivity of seven G (0.7mT).
• Functions within a voltage range of one point zero volts to three point six volts.
• Temperature range of negative forty degrees Celsius to positive eighty-five degrees Celsius.

Product Highlights

This sensor is ideal for various applications requiring precise magnetic sensing capabilities.

Product Information

Standard Information

• Product Type: Digital Magnetic Sensor
• Design Technology: TMR (Tunnel Magnetoresistive)

Technical Specifications

• Operate Sensitivity: 7G (0.7mT)
• Voltage Range: 1.0V - 3.6V
• Average Current Drain: 20nA
• Operating Frequency: 1.0Hz
• Temperature Range: -40°C to +85°C

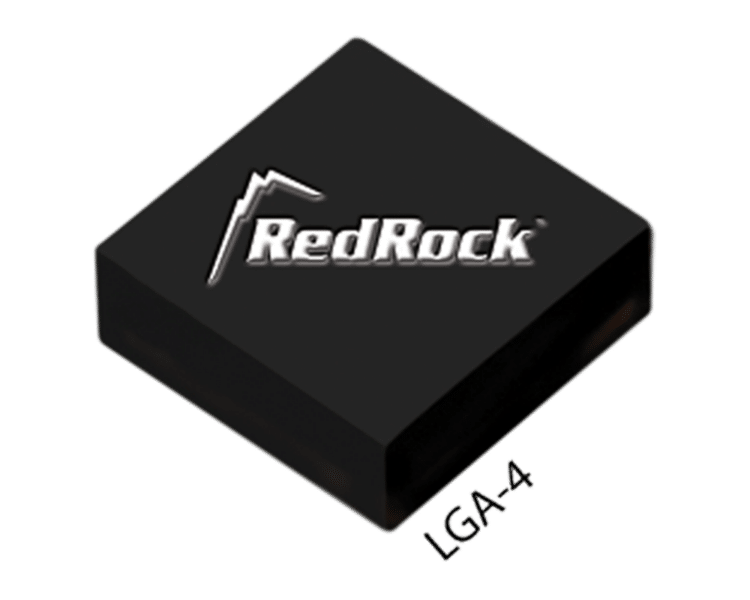

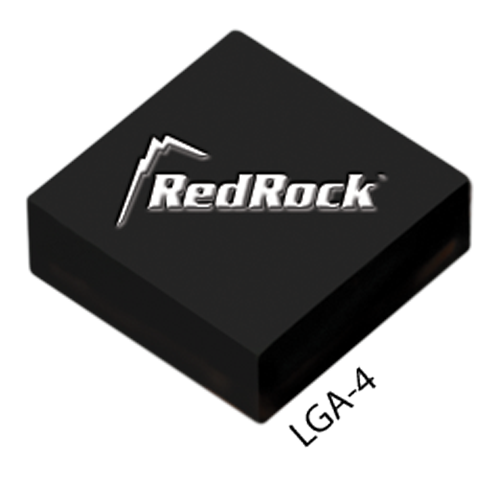

• Package Size: LGA-4
• Magnetic Polarity Response: Omnipolar
• Dimensions: 0.44 x 1.45 x 1.45mm
