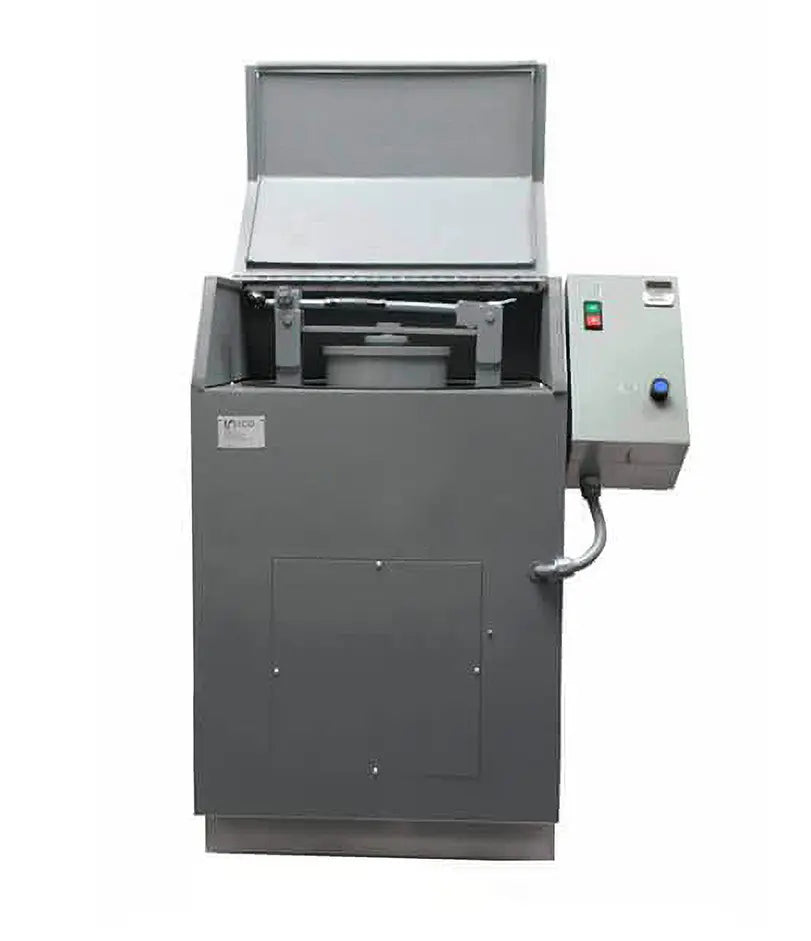

LID CORPORATION LC115 VP-1989 Ring & Puck Pulverizer

Product Description

The LID CORPORATION LC115 VP-1989 Ring & Puck Pulverizer is suitable for grinding production samples. This tool uses two grinding rings and a puck within an eight-inch hardened chrome alloy steel grinding bowl. A direct-coupled motor rotates an eccentric to enhance grinding efficiency. It can reduce samples of up to one-half inch to a final mesh size of four hundred. This pulverizer can process both wet and dry samples, including various minerals, ore rocks, and soil.

• Equipped with a 1 hp, three-phase motor with voltage compatibility.
• Includes grinding components: bowl, cover, rings, and puck with a capacity of 250 ml.
• Features an electronic timer with a safety stop switch for improved control.

Product Highlights

This pulverizer is ideal for laboratory use and sample preparation. It includes an insulated cabinet to minimize operational noise.

Product Information

Standard Information

• Brand: LID CORPORATION
• MPN: LC115

Technical Specifications

• Motor: 1 hp, 3 ph, 50/60 hz, 208/230/440 volt motor (900 rpm)
• Timer: Electronic timer with safety stop switch
• Other: Starting switch and timer
• Sound Enclosure: Insulated cabinet for reduced operating noise
• Amp Draw: 4.6 amps at 240v/60/3
• Voltage: Easily reconnectable for 480v / 3-phase operation
• Grinding Components: Set includes bowl, cover, rings, puck, and 250 ml capacity
• Item Dimensions with Lid Up: 35 inches x 24 inches x 58 inches (w x d x h)
• Item Dimensions with Lid Down: 24 inches x 24 inches x 43 inches (w x d x h)
• Shipping Weight: 574 lbs
• Shipping Dimensions: 38 inches x 29 inches x 54 inches
