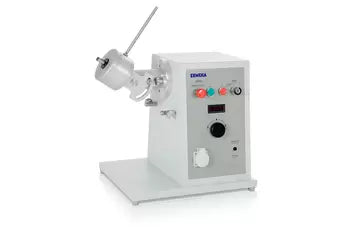

LID CORPORATION AR402 All-Purpose Equipment Drive Unit

Product Description

The LID CORPORATION AR402 is an all-purpose drive unit designed to power various attachments using a coupling mechanism. This unit includes a three-phase AC motor and a maintenance-free, ball-bearing worm gear drive.

• Offers a maximum output torque of twenty-three Newton meters.
• Features electronic speed control with variable speed settings from twenty to four hundred revolutions per minute.
• Maintains preselected speed effectively under changing load conditions.

Product Highlights

This drive unit is suitable for use in various applications that require reliable performance and flexibility in speed adjustment.

Product Information

Standard Information

• Input Voltage: 98 - 136 V / 50-60 Hz, 196-264 V / 50-60 Hz
• Power Consumption: 2100 W

Technical Specifications

• Protection Class: I/EN 61140
• Protection Type: IP 21/IEC 529
• Motor Type: 3-phase AC motor
• Motor Power: 740 W
• Motor Insulation Class: F
• Motor Speed: 20-400 rpm
• Gear Type: Worm gear
• Gear Max Torque: 23 Nm
