LID CORPORATION 318984-753 SM4753 Draft Inducer Motor

Product Description

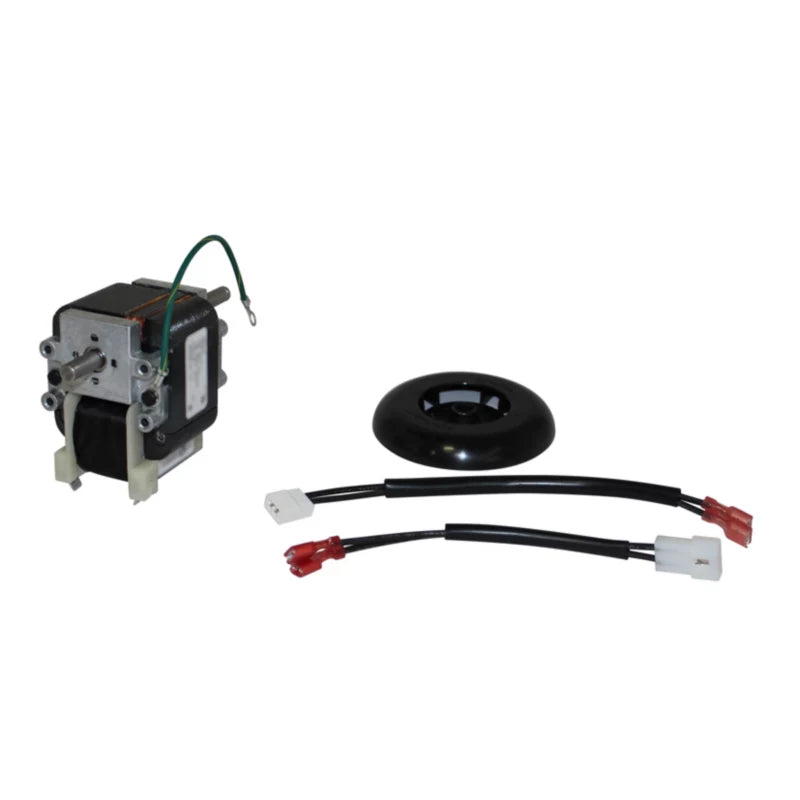

The LID CORPORATION 318984-753 SM4753 Draft Inducer Motor operates on 115 volts and 60 hertz. This motor features a C-frame design and includes overload protection for safety and longevity. It runs at a single speed of 3500 RPM with clockwise rotation. With a horsepower rating of 1/22, it draws 1.5 FLA and benefits from dual shafts measuring one inch and one and seven-eighths inches. The package includes a cable with connectors and a plastic fan blade.

• Includes cable with connectors for easy electrical connection.
• Comes with a plastic fan blade for efficient air movement.
• Designed with overload protection to prevent damage.

Product Highlights

This draft inducer motor is suitable for HVAC systems that require reliable air movement and operational safety.

Product Information

Standard Information

• Brand: LID CORPORATION
• MPN: 318984-753

Technical Specifications

• Dual Shaft: 1 inch and 1 7/8 inches
• Voltage: 115V
• Frequency: 60Hz
• Horsepower: 1/22 HP
• Amperage: 1.5 FLA
• Speed: 3500 RPM
• Rotation: CW
