LID CORPORATION 2374-495 Adjustable Air Pressure Switch

Product Description

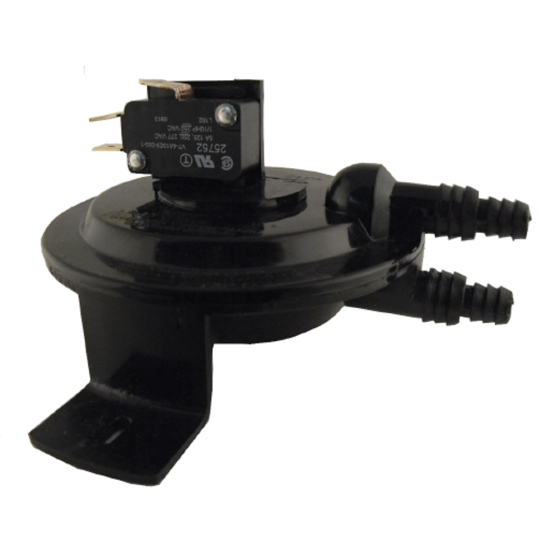

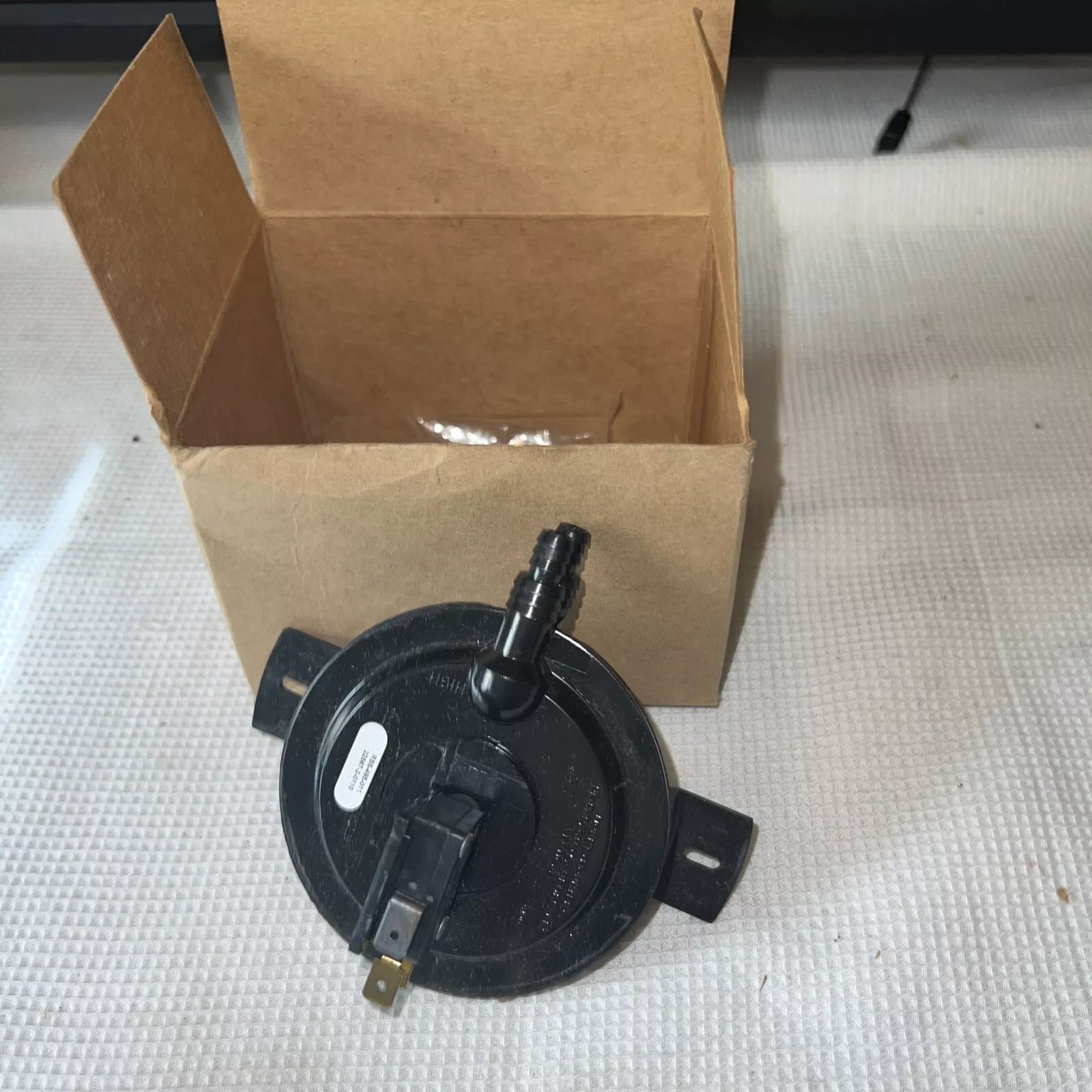

The LID CORPORATION 2374-495 is an adjustable air pressure switch ideal for HVAC and general-purpose use. This device measures differential pressure and features a field-adjustable control set point. It includes air sample line connectors for tubing sizes of one eighth, one fourth, or three eighths inches, and a quarter inch spade electrical connection. The switch is designed for vertical mounting with the diaphragm positioned for optimal performance.

• UL and CSA approved for safety and reliability.
• Operates within a temperature range of negative forty degrees Fahrenheit to one hundred ninety degrees Fahrenheit.
• Factory preset for pressure activation on rise within a range of zero point two five to one point zero inches of water column.

Product Highlights

This switch is versatile and suitable for different applications, making it a valuable tool for professionals.

Product Information

Standard Information

• Brand: LID CORPORATION
• MPN: 2374-495

Technical Specifications

• Power Source: N/A
• Manufacturer Warranty: 1 Year
• Set Point Range: 0.25 to 1.0 W.C.
• Maximum Pressure: 0.5 PSI
• Temperature Range: -40°F to 190°F
• Electrical Rating: 5 Amps @ 120-277V AC
• Shipping Weight: 1 lb
• Dimensions (L x W x H): 4.1 x 4.1 x 2.25 inches
