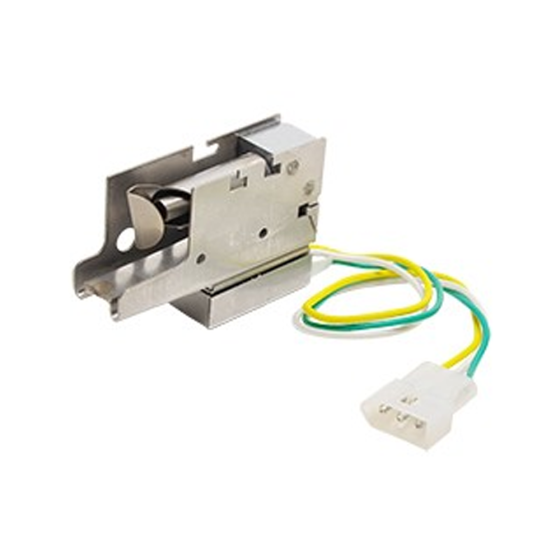

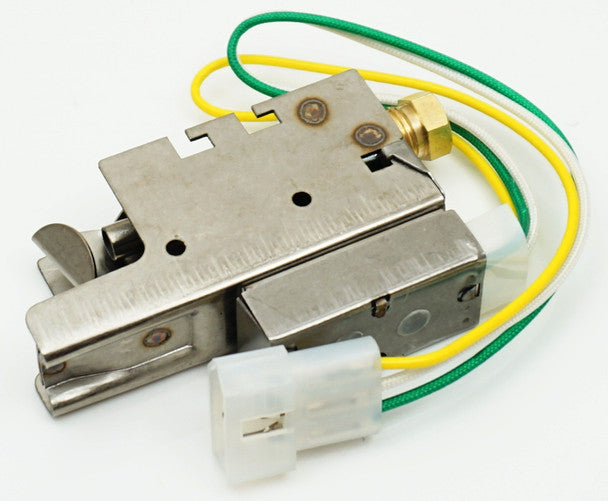

LID CORPORATION 1830-620 3-Wire Pilot Burner with Safety Switch

Product Description

The LID CORPORATION 1830-620 is a three-wire pilot burner with a safety switch. This unit features a single pole double throw (SPDT) switch and a differential expansion pilot. It works with hot surface igniter or spark ignition systems. The integrated flame sensing and heat-activated relay enhance safety. The unit comes with color-coded yellow, white, and green wires along with a Molex plug adapter for easy installation.

• Works with an inlet pressure of seven point zero W.C.
• Includes three-lead SPDT switch for efficient control.
• Orifice size measures .017, suitable for various applications.

Product Highlights

This pilot burner is designed for reliable operation within HVAC systems and provides precise control for temperature regulation.

Product Information

Standard Information

• Brand: LID CORPORATION
• MPN: 1830-620

Technical Specifications

• Switch: SPDT
• Orifice Size: .017
• Inlet Pressure: 7.0 W.C.
• Input Rating: 950 BTU/Hr
• Electrical Rating: 30V AC, 60 Hz, 1 Amp
