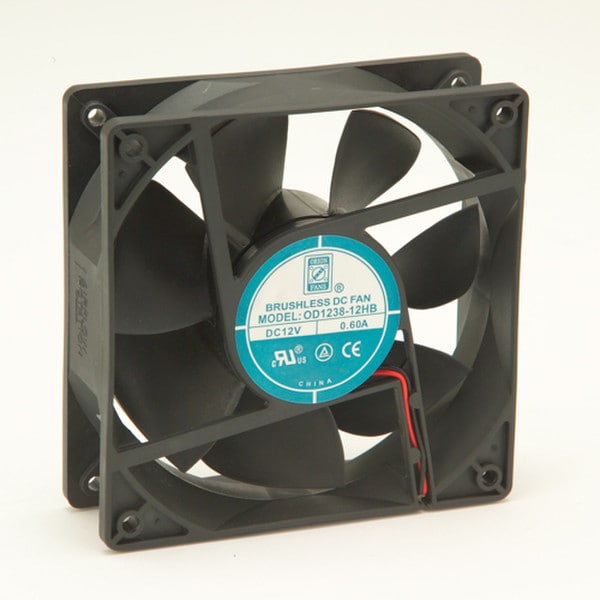

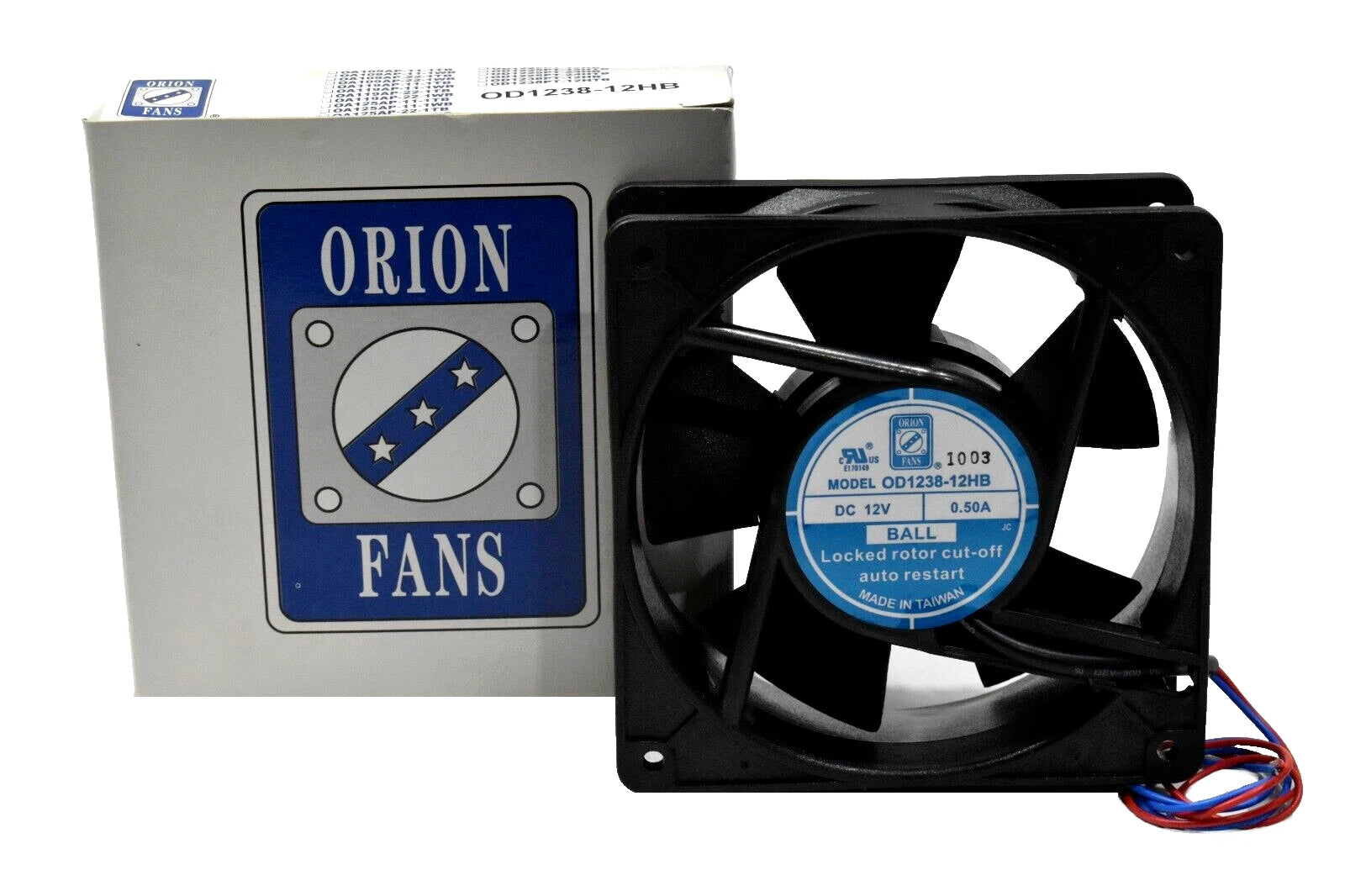

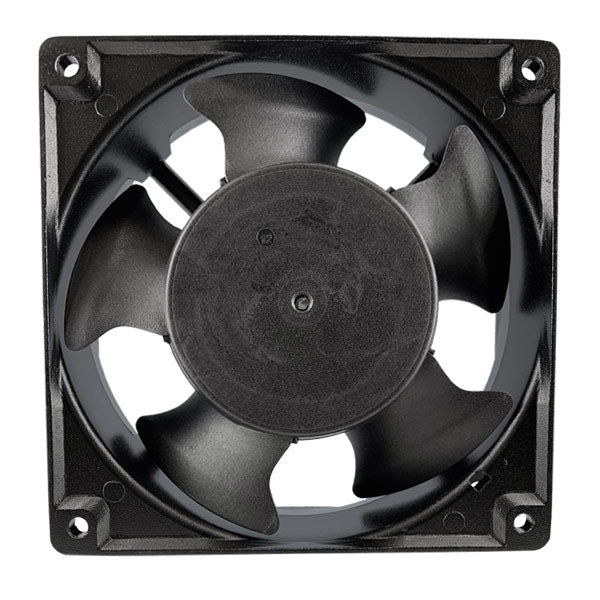

LID CORPORATION 0D1238-12HB Axial Fan 12V (SIZE)

Product Description

The LID CORPORATION 0D1238-12HB Axial Fan is designed for effective cooling applications. This fan features a shaded pole induction motor, specifically designed for reliability with impedance protection. It utilizes a two ball bearing system for smooth operation. The fan's construction involves an aluminum alloy frame for durability, while the impeller is made from UL94V-0 rated plastic. It operates efficiently in a temperature range from negative ten degrees Celsius to seventy degrees Celsius and has a life expectancy of fifty thousand hours.

• Shaded pole induction motor with impedance protection
• Aluminum alloy frame and UL94V-0 plastic impeller
• Operating temperature range of -10 degrees Celsius to 70 degrees Celsius

Product Highlights

This fan operates at twelve volts DC with a rated speed of three thousand one hundred RPM, providing an airflow of one hundred eight CFM.

Product Information

Standard Information

• Series: FAA1-12038-A
• Type: Axial

Technical Specifications

• Voltage: 12 V
• Current: 0.50 A
• Power: 14 W
• Rated Speed: 3100 RPM
• Airflow: 108 CFM
• Static Pressure: 0.28 inAq
• Noise Level: 44.5 dB/A
• Life Expectancy: 50000 Hrs
