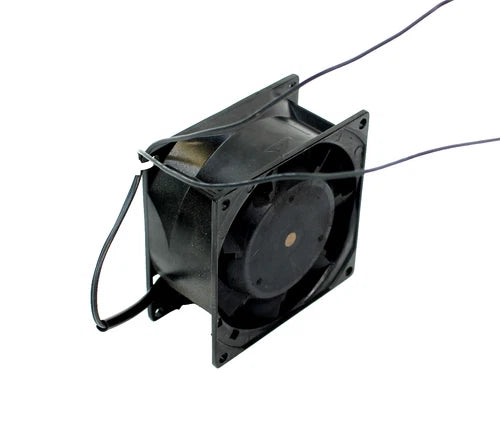

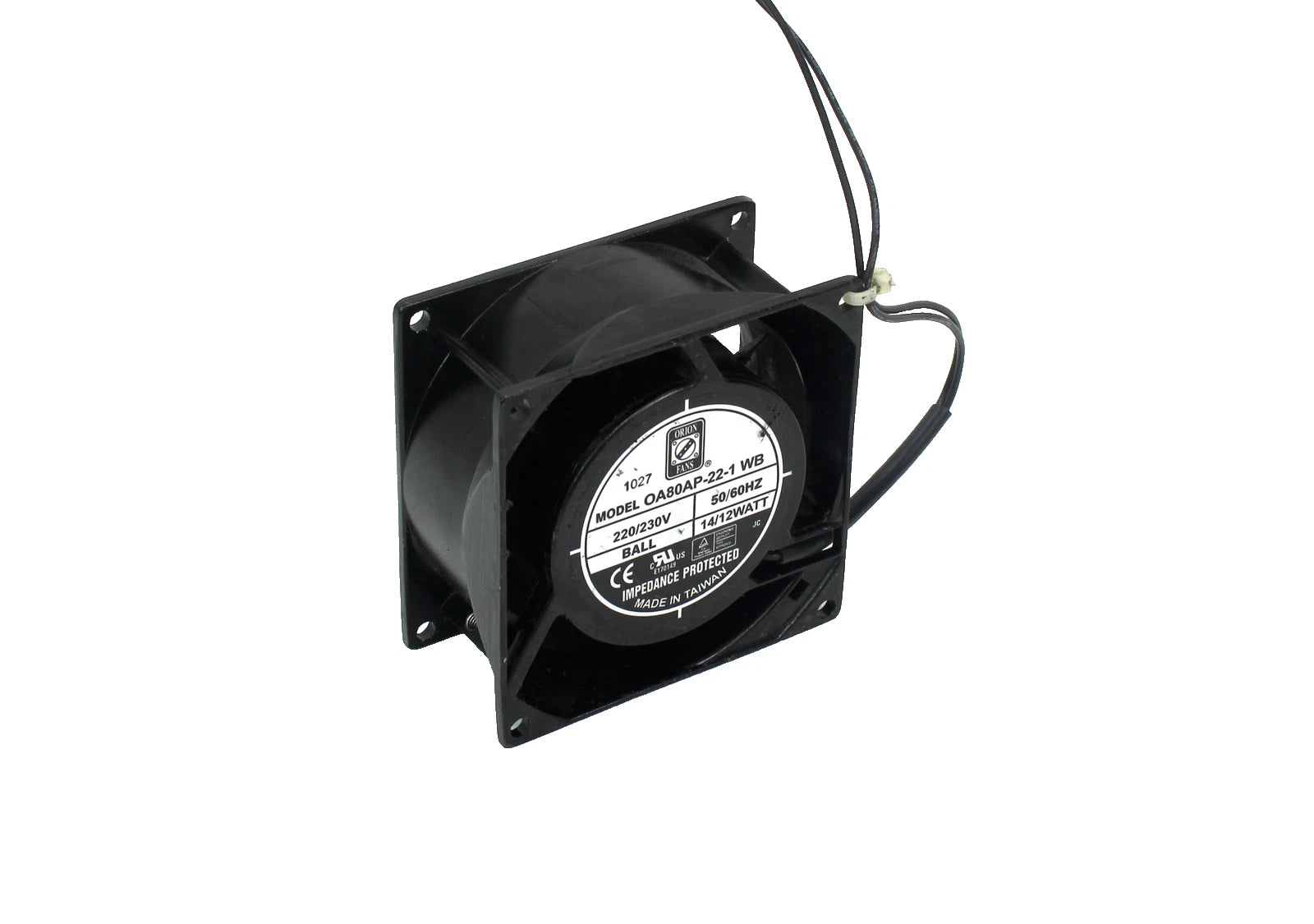

LID CORPORATION 0A80AP-22-1WB AC Axial Fan

Product Description

The LID CORPORATION 0A80AP-22-1WB is an AC axial fan, specifically designed for cooling applications. It operates efficiently at 220/230VAC and 50/60Hz. This product features a shaded pole induction motor with impedance protection, ensuring durability and safety.

• Frame made from aluminum alloy for strength.
• Utilizes a plastic impeller rated UL94V-0.
• Operates effectively within a temperature range of -10 degrees Celsius to 70 degrees Celsius.

Product Highlights

This fan is built for reliability with a life expectancy of up to fifty thousand hours. The terminal connection offers easy installation. The design complies with UL, cUL, TUV, and CE safety standards, providing peace of mind during operation.

Product Information

Standard Information

• Brand: LID Corporation
• Model: 0A80AP-22-1WB

Technical Specifications

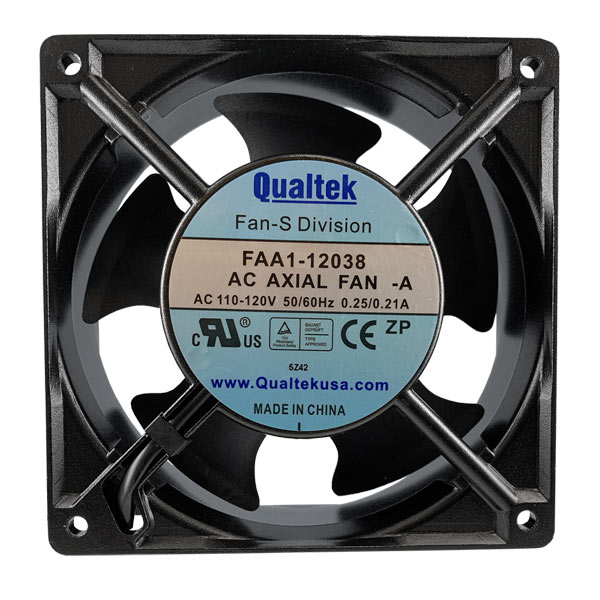

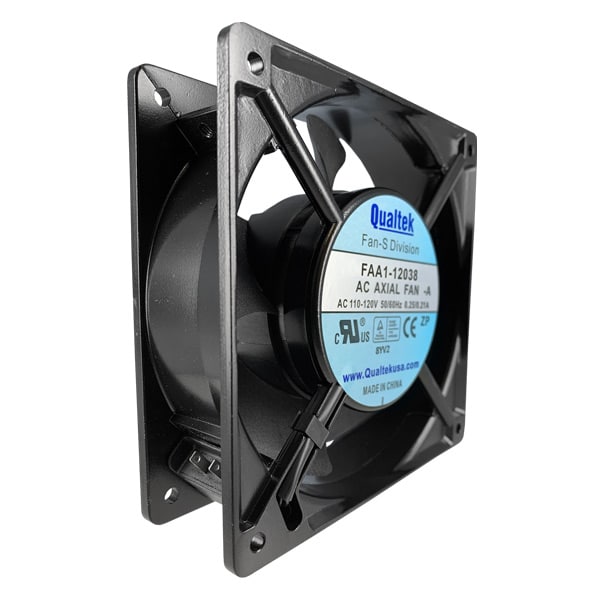

• Series: FAA1-12038-A
• Size: One hundred twenty by one hundred twenty by thirty-eight mm
• Voltage: 115VAC
• Current: Zero point nineteen A
• Power: Fourteen W
• Rated Speed: Two thousand nine hundred RPM
• Airflow: Two point seventy-five CMM
• Airflow: Ninety-seven CFM
• Static Pressure: Zero point thirty-five InAq
• Static Pressure: Eight point eighty-seven mmAq
• Noise Level: Forty-four point five dB/A
• Weight: Five hundred fifty g
• Type: Axial
• Bearing: Ball
• Connection: Terminal
• Motor: Shaded Pole Induction
• Motor Protection: Impedance Protected
• Frame Material: Aluminum
• Impeller Material: Plastic
• Min Operating Temp: -10 degrees Celsius
• Max Operating Temp: +70 degrees Celsius
• Life Expectancy: Fifty thousand hours
• Country/Region of Manufacture: Taiwan
