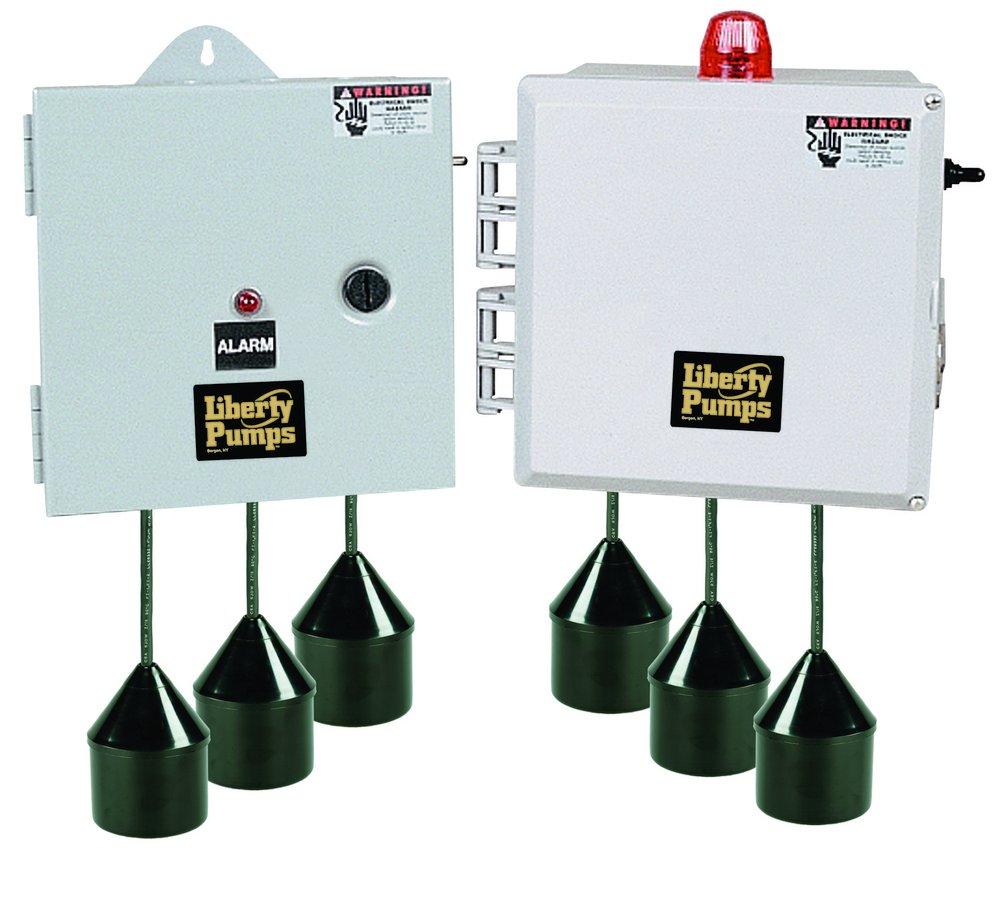

Liberty Pumps SXH24=3 SX Series 120/240 V Single Phase Control Panel

Product Description

The Liberty Pumps SXH24=3 is designed for use in simplex pump systems. This control panel operates on 120/208/240 V and is compatible with single-phase applications. The enclosure is rated NEMA 4X, making it suitable for both indoor and outdoor use.

• Includes three pilot duty float switches for monitoring pump operation.
• Features across-the-line magnetic contactor for effective pump control.
• Incorporates alarm indicators for alerting users to operational issues.

Product Highlights

This control panel is ideal for managing pumps in sump basins and sewage systems. The robust design and reliable components ensure long-lasting performance in various conditions.

Product Information

Standard Information

• Brand: Liberty Pumps
• MPN: SXH24=3

Technical Specifications

• Voltage Rating: 120/208/240 VAC
• Phase: Single Phase
• Amperage Rating: 15 to 20 A
• Enclosure Type: NEMA 4X
• Float Switches: Three (for Off, On and Alarm)
• Dimensions: Eight inches by eight inches by four inches
• Cord Length: Twenty feet
• Warranty: Three Years
• Dimensions: 18 in. (L) x 15 in. (W) x 7.75 in. (H)
• Weight: 13 Lbs.
