Liberty Pumps SXH24=3-3 Simplex Control Panel 120/208/240V 1 PH 15-20 Amps NEMA 4X 3 Float 35 ft Cord

Product Description

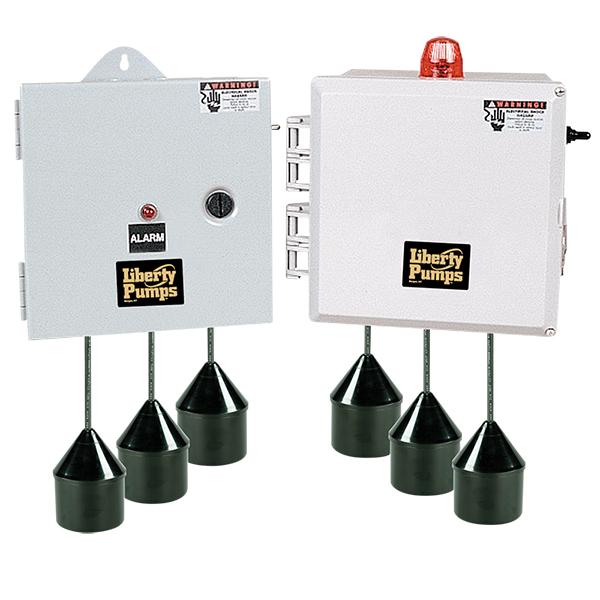

The LIBERTY PUMPS SXH24=3-3 Simplex Control Panel is designed for controlling single pump systems in residential or commercial installations. It operates at 120/208/240V AC, single phase, with a current range of 15 to 20 Amps, suitable for up to 3 hp motors. This NEMA 4X rated panel includes three pilot-duty float switches for OFF, ON, and ALARM functions, and is suitable for outdoor use. It manages pumps for wastewater, septic, sump, and sewage applications.

• Controls a single pump system with 120/208/240V AC single-phase power, supporting up to 3 hp.
• Features a NEMA 4X plastic enclosure, suitable for outdoor installation, and includes three 35 ft tether float switches.
• Equipped with an HOA switch, audio-visual high water alerts, and status indicator lights for operational monitoring.

Product Highlights

Simplex control panel for 120/208/240V single-phase pumps up to 3 hp, featuring NEMA 4X outdoor enclosure and three 35 ft float switches.

Product Information

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: SXH24=3-3
• Country of Origin: USA

Technical Specifications

• Brand: LIBERTY PUMPS
• Series: SX
• Manufacturer Part Number: SXH24=3-3
• Product Type: Control Panel
• Compatible Pump Type: Sewage Pump; Sump Pump
• Number of Pumps Controlled: 1
• Phase: Single
• Rated Voltage: 120/208/240V AC
• Current: 15 to 20 A
• For Max. Horsepower: 3 hp
• Number of Switches Included: 3
• Switch Actuation: Tether Float
• Float Switch Length: 35 ft
• NEMA Enclosure Rating: 4X
• Enclosure Material: Plastic
• Intrinsic Safety: Not Specified Intrinsically Safe
• Locking Style: Padlockable
• Location: Outdoor
• Connectivity: Auxiliary Contacts
• Alerts Indicated: High Water
• Alert Output: Audio Visual
• Includes Status Indicator Lights: Status Indicator Lights Included
• Dosing Schedule: Demand Dose
• Includes Reversing: Non-Reversing
• Includes HOA Switch: HOA Switch Included
• Includes Data Logging: No Data Logging Included
• Includes: (3) Pilot-Duty Float Switches
