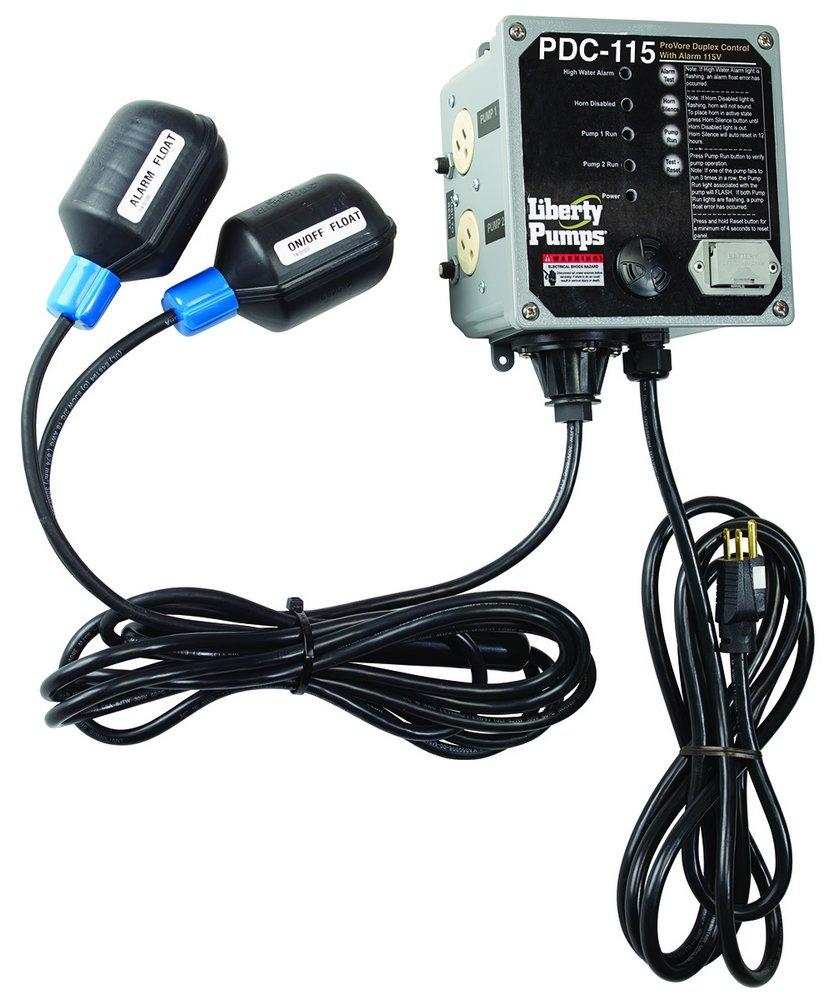

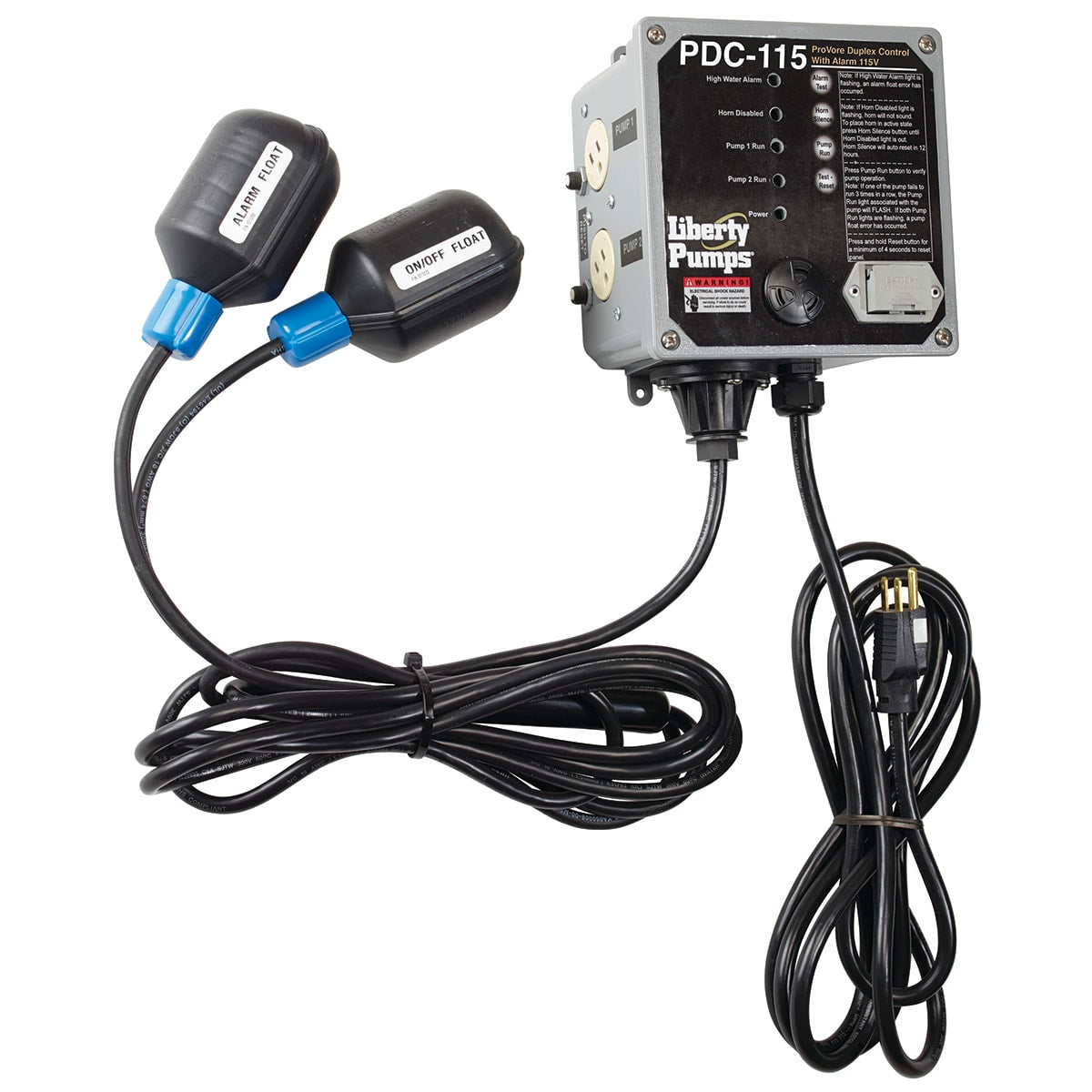

Liberty Pumps PDCW-115 PDC Series Duplex Control System 115V Outdoor 10 feet Cord

Product Description

The LIBERTY PUMPS PDCW-115 is a PDC Series Duplex Control System designed for managing pump operations. It features green power and pump run indicators, automatically alternates pump operation to extend pump life, and includes a programmed auto 6-hour run limiter to prevent dry-run conditions. This 115V, 1-phase outdoor control system is equipped with a 10-foot cord and NEMA 4X enclosure, making it suitable for various sewage and grinder duplex systems.

• Automatically alternates pump operation extending pump life.
• Programmed auto 6 hour run limiter protects against run-dry or runaway pump conditions.
• Audible & visual alarm with 9 volt back-up.

Product Highlights

This control system ensures efficient and protected pump operation with advanced monitoring and safety features for outdoor duplex applications.

Product Information

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: PDCW-115

Technical Specifications

• Type: Accessories
• Switch: Wide angle float
• Phase: 1
• Voltage: 115V
• Cord Length: 10'
• Control Type: Duplex, alternating, non-simultaneous
• Alarm Type: built-in horn and external LED beacon
• Number of Floats: 2 (On/Off & Alarm)
• Compatibility: All 115V sewage & grinder duplex systems with individual pump not exceeding 1 HP (12 A)
• Enclosure Rating: NEMA 4X
• Max Pump Current: 12 A
• Max Pump HP: 1 HP
• Dedicated Service: 20A
