Liberty Pumps p382le51/a2 Simplex Sewage Package 1/2 Hp

Product Description

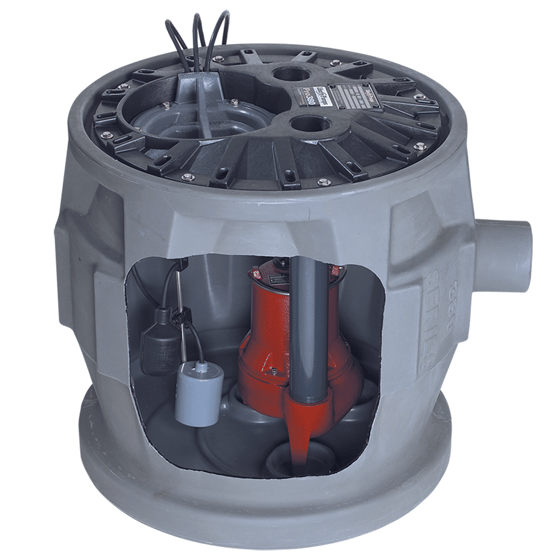

The LIBERTY PUMPS p382le51/a2 is a simplex sewage package built around the LE51M 1/2 HP, 115-volt, single-phase sewage pump. The system ships factory pre-assembled with QuickTree float kit technology, a 24-inch by 24-inch basin, and a pre-mounted alarm with alarm floats. The basin holds 41 gallons, making this a large-capacity shallow system suited to sites with bedrock or difficult soil conditions. The pre-assembled design reduces on-site labor time significantly, and the longer pump cycles built into the Pro380-Series are intended to extend overall pump service life.

This package is designed for residential and light commercial simplex sewage applications where a shallow basin footprint is required. The 24-inch by 24-inch basin profile makes it well suited to installations in tight or difficult excavation conditions such as bedrock sites or compacted soils. The factory pre-assembly of the basin, pump, float kit, and alarm panel reduces field assembly steps, making it appropriate for contractors handling multiple installations. Discharge is 2 inches.

Key Features

• Factory pre-assembled simplex sewage system reduces on-site labor
• QuickTree float kit included for reliable level sensing
• 41-gallon basin capacity supports longer pump cycles and extended pump life
• 24-inch by 24-inch shallow basin design suited for bedrock and difficult soil conditions
• Pre-mounted alarm floats and alarm panel included
• 1/2 HP, 115-volt, single-phase LE51M sewage pump

Compatibility

Designed as an OEM-style simplex sewage package within the LIBERTY PUMPS Pro380-Series product line, intended for residential and light commercial sewage ejection applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Disconnect and lock out all electrical power before servicing any component of the system. Verify that the 115-volt single-phase circuit is properly sized and protected per NEC requirements before energizing the pump. Confirm the 2-inch discharge piping is routed and supported per local code before commissioning the system.

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 115 volts
• Phase: 1 phase
• Discharge Size: 2 inches
• Basin Size: 24 inches x 24 inches
• Basin Capacity: 41 gallons
• System Type: Simplex sewage package
• Pump Model Included: LE51M

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: p382le51/a2
